RIDGELIGHT 25-40° - SKYLIGHT SYSTEM
RIDGELIGHT 25-40° - SKYLIGHT SYSTEM
A dual pitched rooflight for installation on a flat roof or at a roof apex.
Ridgelight 25-40° is a classic rooflight solution, where two rows of Modular Skylights are connected at the ridge.
The dual pitched Ridgelight solution is ideal for buildings with large roof openings. Ridgelight 25-40° with venting skylight modules on both sides is an optimal solution for buildings that require day or night cooling.
The Ridgelights can be supplied with different types of glazing on each side to control heat and glare according to the orientation of the building. Modular Skylights are delivered with a 10-year guarantee on modules and flashings.
VELUX skylight specialists offer support throughout design, specification and installation, including design of the sub-construction needed for installation.
INFORMATION
SUITABLE FOR
- Flat roof and at the top of a sloped roof
- Flat roofing material
- Rooflight installation pitch 25-40°
- Opening width in roof min./max 1.1-4.5 m (for venting modules 1.4-4.5 m)
USE
Modular skylight system, roof window
BRAND
Velux
PRODUCT TYPE
Skylight
RIDGELIGHT SOLUTION IN 25-40°
APPLICATIONS
Atrium ridgelights, modular skylights with integrated blinds.
GUARANTEE
10 years guarantee for skylights, 3 years guarantee for components.
CERTIFICATION
CE-marked in accordance with the harmonized standard EN 14351-1:2006+A1:2010 – Windows and doors, EN 12101-2:2003 - Smoke and heat control systems –Part 2.
CHARACTERISTICS
Prefabricated flashing, watertight, modular, insulating glazing unit, natural smoke and heat exhaust ventilators, integrated actuator, intelligent operation.
MEASUREMENTS
Modular skylights require the following minimum and maximum measurements :
- Module width: 675-1000 mm
- Module height: 600-3000 mm
KEY BENEFITS
- Ensures maximum daylight and thermal comfort
- Adds spaciousness to the area below
- Totally self-supporting solution
PRODUCTION
Made in England
INSTALLED ON
Flat roof or at a roof apex.
FUNCTIONS
Modular Skylights are available in a wide range of standard sizes and functionalities:
Fixed skylight module
Motorized comfort venting skylight module. Actuator chain stroke 260 mm.
DETAIL

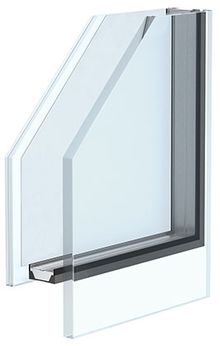

GLAZING
Modular Skylights come with standard low-energy double or triple glazing with the following features:
- Insulated glazing (Ug values down to 0.5 W/m²K)
- Toughened outer glass
- Laminated inner safety glass
- Falling through safety
- Sound insulation (traffic, rain and hail)
- Step pane (leads water off the unit)
- Sun protection coating (optional)
- Warm edge spacer (protects insulation properties over time and minimizes the risk of condensation at pane edges)
DETAILS
Modular Skylight system is a turnkey solution comprising prefabricated skylight modules with dedicated claddings, flashings and vapour barrier connection strip to allow for design of watertight rooflight and glass roof structures.
Comfort ventilation is possible via an integrated chain actuator that can be controlled with VELUX INTEGRA® system or with your preferred building management system. Smoke ventilation can only be controlled with your preferred building management system. For optimal daylight and heat control consider internal roller blinds that can be pre-mounted from the factory.
PERFORMANCE
The Modular Skylight profiles (sash and frame) are made of pultruded fiberglass (80%) and polyurethane composite (20%). The composite material provides high insulation performance and thermal stability as well as excellent profile stiffness and bending strength.
Due to the concept of prefabrication, we are able to test our products extensively against all thinkable hazards and stressful events. Tests are performed in controlled environments in accordance with harmonized standards for both Windows and doors and for Smoke and Heat control systems.
In combination with low energy glazing units, the Modular Skyligths are able to achieve one of the lowest overall U-values for frame and glazing assembly in the skylight market (Uw values down to 0.86 W(m2/K)).
ADDITIONAL SOLUTIONS
CREATE A ROOFLIGHT SOLUTION TO MATCH YOUR DESIGN
By adapting the interior lining, modular Ridgelights 25-40° can be used in non-square designs, e.g. obtuse angles, acute angles or ovals. By using adapted linings, the modular skylights meet the demands of modern architecture featuring irregular or curved shapes.
CREATE AN ASYMMETRICAL SOLUTION
Modules of different heights can be combined to form an asymmetrical Ridgelight solution that bridges roof sections of different height and slope. Using glazing with different characteristics on each side of the Ridgelight help maximize daylight and minimize heat intake.
