Gutmann Mira Window System
MIRA WINDOW SYSTEM
MIRA WINDOW SYSTEM
MIRA - The perfect solution for every requirement
With a comprehensive range of profiles, the gutmann mira wood-aluminium system offers custom solutions for every requirement, from residential to commercial buildings.
Classic, offset design conceals solid technology with excellent characteristic values. All standard window constructions, opening types and window styles, including slanted windows, semi-circular, segmented or lancet arches, can be executed in various profile designs.
information
BRAND
Gutmann
PRODUCT TYPE
Window System
APPLICATIONS
- Residential
- Commercial
CHARACTERISTICS
- Water And Air Tight
- Thermal Insulation
WOOD PROJECTION
In addition, the available plinth heights enable compensation for different wood projections
PRODUCTION
Made in Germany
COLLECTION
Mira
APPLICATION
A wide selection of gaskets provides the optimum solution for every area of application
DOWNLOADS
↓ Catalogue
↓ Handles
↓ Brochures
SYSTEM PROPERTIES OF CLASSES
- Water tightness9 A
- Air permeability 4
- Wind loadC3/ B3
- Operating forces1
MATERIAL
Aluminium
WOOD THICKNESS
88 mm
THERMAL INSULATION
Element size: 1,230 mm x 1,480 mm | Wood species: Spruce | Ug value: 0.6 W/m2K | Glass spacer: Thermix TX.N plus
TEST SAMPLE
Double-sashed tilt & turn window with operable center section (2,200 mm x 2,200 mm)
SYSTEM DESCRIPTION
The GUTMANN MIRA system can be executed in double, single and pitched rebate construction.
-The profiles are available with radiused visible edges or an angular design for special architectural requirements. -A wide range of transom and mullion profiles for optimal profile joints and optimized structural connections round out the product line. -Thanks to proven fastening technology, the system impresses with installation-friendly and, above all, economic fastening of the aluminium shells to the wooden part. -Execution as a composite sash assembly, sash variant or pitched rebate assembly provides additional window design options. The frames are available in either a welded version or a version with robust punched corner connections.

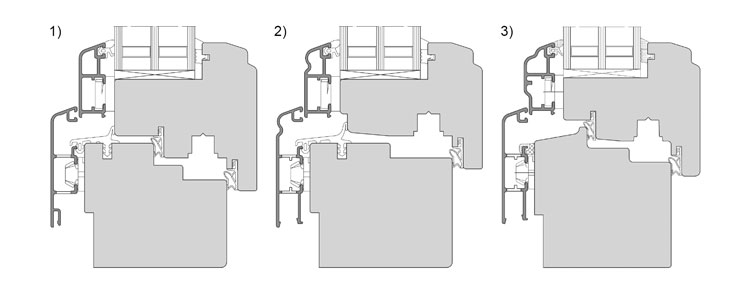

SYSTEM CROSS SECTION
1 Double rebate construction | 2 Single rebate construction | 3 Pitched rebate construction
