Unilinpanels Qualirack Tg Structural Chipboard
QUALIRACK TG STRUCTURAL CHIPBOARD
QUALIRACK TG STRUCTURAL CHIPBOARD
High-quality reinforcement panel for dry lining construction

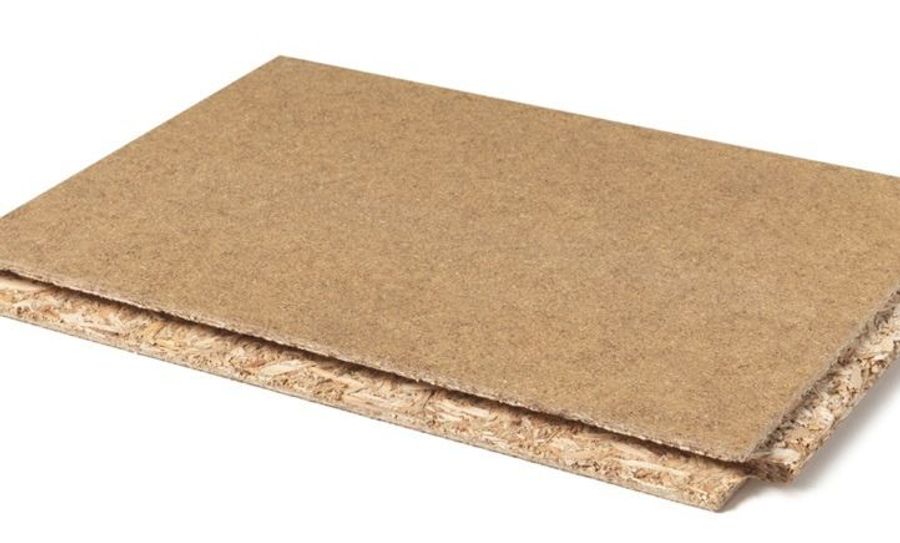

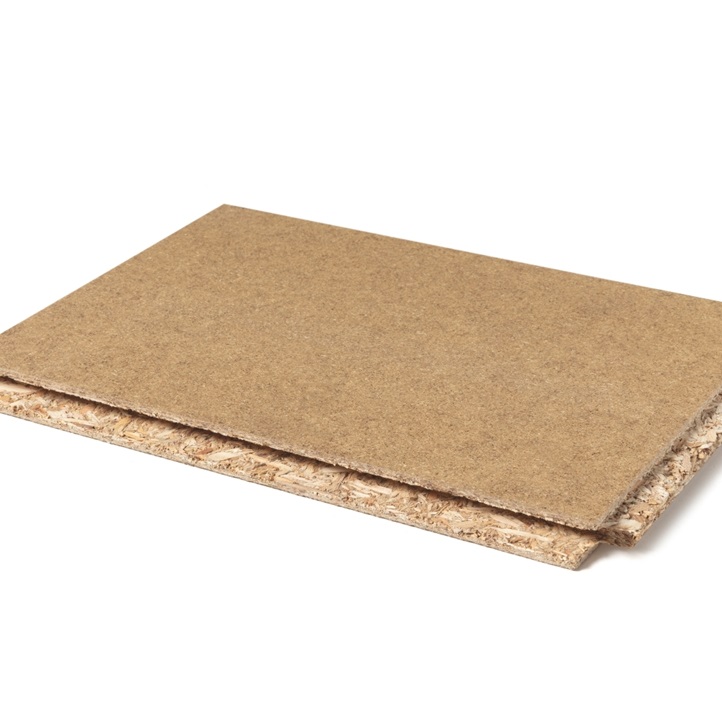

Structural P4 chipboard finished on the edges with tongue-and groove.
Qualirack TG is suitable for use in dry conditions, service class 1, mainly as reinforcing racking board in dry walling, separation walls and wall linings, or as structural floor panel.
Qualirack TG is made from 100% recovered wood: up to 90% post-consumer wood, supplemented by 10% pre-consumer wood from waste flows from the wood industry or thinned wood from sustainable forestry and verge management.

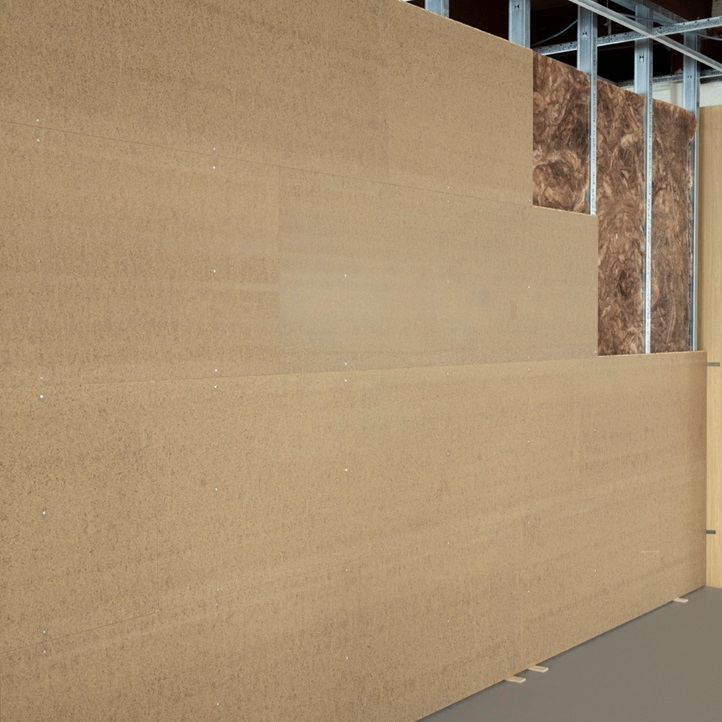

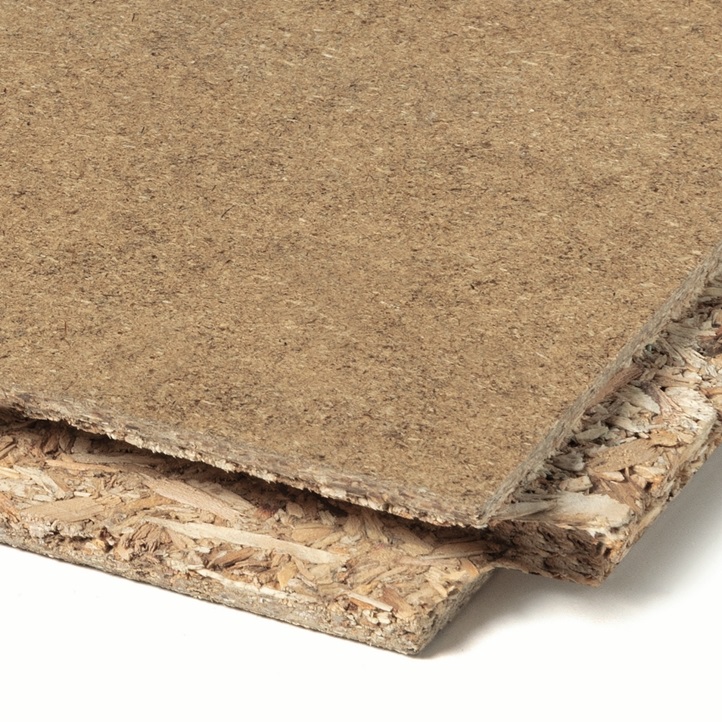

Reinforce dry walls swiftly and safely, with our high-performance reinforcement board. The dense wooden chips in the core create a robust, impact-resistant reinforcement with high screw withdrawal strength.
INFORMATION
USE
- Separation Walls
- Wall Linings
- Structural Floor Panels
FINE TOP LAYER

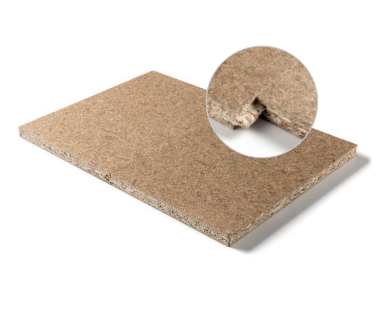

The fine top layer ensures a smooth surface finishing without splinters. The accurately milled profile ensures quick, easy installation and a smooth connection at the seam. Qualirack TG (P4) is suitable for use, in dry environments (service class 1).
FEATURES
- Robust and increased impact-resistant
- Fast and easy installation
- Smooth surface without splinters
- Screw-tight
- 100% recovered wood
- Increased airtightness
- Dry conditions (service class 1)
APPLICATIONS
- Reinforcement panel
- Separating walls
- Wall linings
- Structural floor plate
- Dry conditions, climate class 1
DIMENSIONS
- 610x2440 mm
- 2440x1220 mm
BRAND
Unilinpanels
FIRE REACTION CLASSES
Dfl-s1 & D-s2-d0
DATA
Qualirack TG is a structural building board, applicable as reinforcement in partition walls and pre-walls or as structural floorboard. The panel increases the wall stability, load-bearing capacity and acoustic comfort of the walls or can be used as a structural component in floors. Qualirack TG is in chipboard class P4 and is suitable for use in dry conditions, service class 1, where the relative humidity is limited to between 30 and 65%, and in biological risk class 1 in accordance with EN 335-3. Please consult our installation manual on the website for further information on use and installation.
100% RECOVERED WOOD
-Qualirack TG is made from 100% recovered wood. We use more than 90% post-consumer wood for production. This wood has already had a product life, and may have come from the construction and demolition sector, businesses or domestic households. -The other 10% is pre-consumer wood. This is wood and waste wood that has not yet had a product life. It is a by-product of activities such as sustainable forestry and verge maintenance, or from sawmills and the wood processing industry. -In addition, we also operate two energy plants where non-recoverable wood is converted into green heat and electricity, and wood dust that is produced by our production processes is reused as a renewable fuel for the dryers
TECHNICAL SPECIFICATIONS
| GENERAL PROPERTIES | STANDARD | UNIT | AVERAGE VALUES |
|---|---|---|---|
| Thickness EN 324-1 | EN 324-1 | mm | 12 - 18 |
| Moisture content | EN 322 | % | 6-10 |
| Technical properties | Standard | Unit | 5/95 percentile values |
| Bending strength | EN 312-table 6 | N/mm2 | 16 - 15 |
| Modulus of elasticity | EN 312-table 6 | N/mm2 | 2300 |
| Tensile strength | EN 312-table 6 | N/mm2 | 0,40 - 0,35 |
| Thickness swelling, 24 h. | EN 312-table 6 | % | 16 - 15 |
| Formaldehyde class E | EN 13986-table B1 | Class | E1 |
| Fire reaction class | EN 13501 | Class | D-s2, d0 |
