SYSTEM 3 PIVOT HINGES
SYSTEM 3 PIVOT HINGES
System 3 is a 360° rotating pivot system with various hold positions, ideal for pivoting walls.
FEATURES
360° ROTATION
System 3 offers rotation all around, while maintaining features like self-closure and hold positions.
ASSISTED CLOSURE AND HOLD POSITIONS

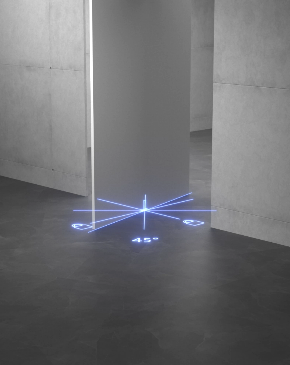

From every 45° angle, System 3 rotates automatically towards its hold positions at 0°, 90°, 180° or 270°.

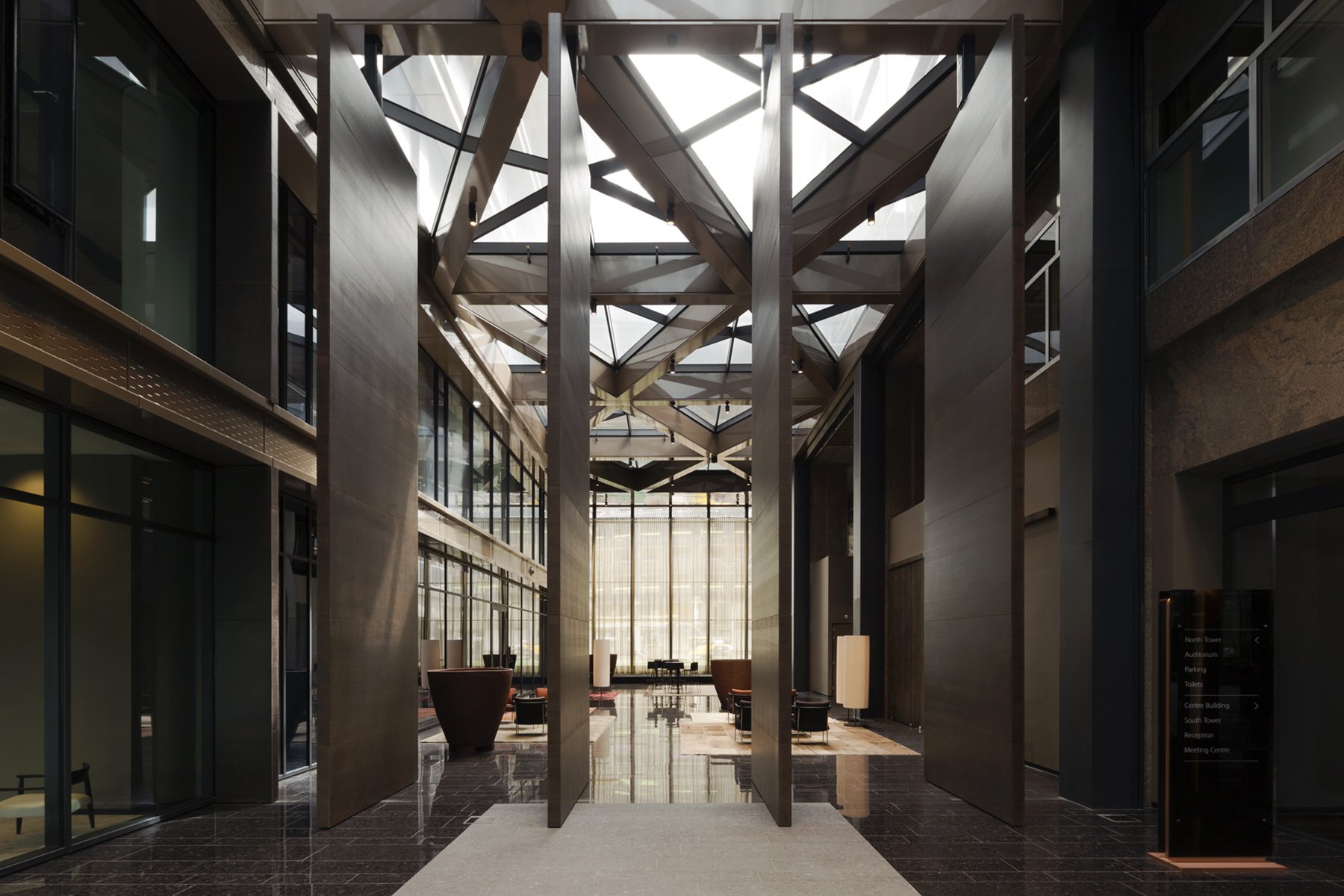

PIVOTING WALLS
360° rotation combined with hold positions and self-closure are ideal features for pivoting walls.
INFORMATION
HOLD POSITION(DOOR)
Hold positions 0º, 90º, 180º and 270º
MATERIAL
- Stainless Steel
- Anodized aluminum
DOOR ACTING
Double-acting | 360º rotation
BRAND
Fritsjurgens
DOWNLOADS
↓ Installation Instructions
MINI. DOOR THICKNESS
40 mm
WEIGHT CAPACITY(DOOR)
40 - 350 kg
CORROSION RESISTANCE
EN 1670 - class 5 (norm:0-5)
TYPES
- System 3 - AA
- System 3 - C
- System 3 - E
- System 3 - G
DOOR MOVEMENT
Door moves from each 45º angle, in both directions, to a hold position.
DIMENSION
160 x 32 x 143 mm
WEIGHT
0.75 KG
PIVOT POINT
Middle
DOOR DIMENSIONS
- Width : 1000 - 3800 mm
- Height : Unlimited
GAP
- Top : 4-10 mm
- Bottom : 13 mm
SMART INSTALLATION
All of FritsJurgens’ pivot hinges can be milled and installed quickly and easily. On-site, installation takes only around 30 minutes. Both in new and retrofit situations, the installation is done in four steps: mounting the floor plate, mounting the ceiling plate, installing the door, and fine-tuning the door.
