Fritsjurgens System One
SYSTEM ONE
SYSTEM ONE

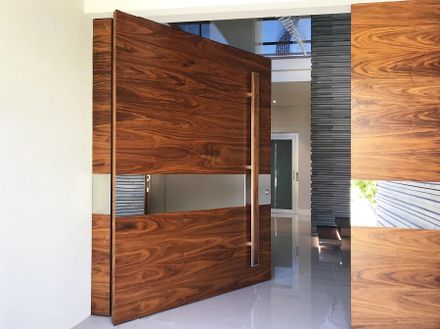

System One is FritsJurgens’ most compact pivot hinge – a single pivot point, offering a free-swing pivot door.
COMPONENTS
CEILING PLATES
The ceiling plate is fitted in the ceiling, where the pin of the top pivot seamlessly fits into the hole in the ceiling plate. The ceiling plate is available in two finishes: brushed stainless steel and black.
TOP PIVOT
The top pivot is mounted into the top of the door. It uses a so-called pinhole connection, in which the pin is fixed to the top pivot and goes into the hole in the ceiling plate when the door is placed.
FLOOR PLATES
-Every FritsJurgens floor plate is mounted 8 mm in the floor. This is sufficient for almost every floor type and makes it possible to combine FritsJurgens’ hinges with floor heating. -There are two floor plate designs available for System One. You can choose for a round floor plate in brushed stainless steel (Series 420) or PVD black. The floor plates by FritsJurgens are made of solid tempered steel and, therefore, entirely scratch resistant.
BOTTOM PIVOT
-The bottom pivot is the pivot mechanism and driver of the pivot door and is fitted in the bottom side of the door. The pivot mechanism therefore is virtually invisible. FritsJurgens bottom pivots have a load bearing capacity for pivot doors up to 500 Kg.
-The bottom pivot offers several features, depending on the choice of bottom pivot, such as: hold positions, self-closing, damper control, latch control, 30° speed control, free swing. -The bottom pivots placement determines the the spatial impact that thepivot door will have on its surroundings. Besides a more regular side placement to create pivot doors, FritsJurgens pivot hinges are also suitable for 360 degree rotating panels or walls.
INFORMATION
DOOR PIVOT POINT
Side and middle
DOOR BOTTOM GAP
13 mm
DOOR WEIGHT CAPACITY
0 - 500 kg
DOOR MIN. DOOR THICKNESS
40 mm
DOOR MOVEMENT
360° free-swinging pivot
DOOR WIDTH
Unlimited
DIMENSIONS
160 x 32 x 39 mm
DOOR TOP GAP
4-10 mm
DOOR HEIGHT
Unlimited
DOOR ACTING
- Double-acting | 360° rotation
- Single-acting | 90° rotation
CORROSION RESISTANCE
EN 1670 - class 5 (norm:0-5)
TYPES
1
WEIGHT
0.36 KG
BRAND
Fritsjurgens
PRODUCT TYPE
Steel Structure Hardwares
SMART INSTALLATION
-All of FritsJurgens’ pivot hinges can be milled and installed quickly and easily. On-site, installation takes only around 30 minutes. -Both in new and retrofit situations, the installation is done in four steps: mounting the floor plate, mounting the ceiling plate, installing the door, and fine-tuning the door.
EXCELLING IN SIMPLICITY
-Compact : System One acts as a single pivot point without hold positions or self-closing features. It is a simple, small, yet broadly applicable pivot hinge.
-Free swing : The simplicity of System One allows for free swing pivot doors that can easily be combined with door frames.
-Single- and double acting doors : System One’s free rotation means that this pivot hinge can be applied in both single- and double-acting pivot doors.
