Fritsjurgens System M+ Pivot Hinges
SYSTEM M+ PIVOT HINGES
SYSTEM M+ PIVOT HINGES
System M+ offers control over every part of the door movement for light and heavy pivot doors.
FEATURES
SYSTEM M+ FOR ALL PIVOT DOORS
This top pivot is a real all-rounder. The ability to position the system 70 mm from the door’s side reduces unused space while retaining the beautiful, distinctive pivot door movement. This top pivot can be placed in any position between 70 mm and the center of the door and is suitable for all FritsJurgens’ pivot systems. Pivot point: Flexible from 70 mm; Top pivot: 70mm, Reversed and Cable Grommet.
SYSTEM M+ FOR MAXIMUM CLEAR WIDTHS
Thanks to the fixed pivot point at 40 mm, this top pivot makes the most of any space. The top pivot is as close as possible to the side of the door. All available space is used, and the clear opening is as large as possible. In the open position, the pivot door is therefore minimally present. This is ideal for situations where a standard door width must be maintained. This top pivot is ADA compliant. Pivot point: fixed at 40 mm; Top pivot: 40 mm; Finishes: Stainless steel and Black.
ADJUSTABILITY
FULLY ADJUSTABLE DOOR MOVEMENT
Thanks to Damper Control, 30° Speed Control, and Latch Control, System M+’s movement is fully adjustable.
PROPER LATCHING
Latch Control ensures that doors with latching bolts always close properly. Ideal for exterior pivot doors.
SMALL TO OVERSIZED DOORS
System M+ is suitable for light doors and heavy doors in a range of 80 kg to 500 kg for ultimate design freedom.
FUNCTIONALITIES
-Latch Control : Provides the ability to adjust the pivot hinge to latch the door properly.
-Damper Control : Ensures a smooth and elegant closing movement and protects your door from touching the wall (back-check).
-30º Speed Control : Allows you to determine the speed of the pivot door through the last part of the closing movement.
INFORMATION
MINIMUM DOOR THICKNESS
- System M+ - Class A-E: 40 mm
- System M+ - Class A-E: 50 mm
HOLD POSITIONS
90º, -90º and 0º
DOOR ACTING
Single & Double-acting
WEIGHT
- System M+ - Class A-E: 2.6 kg
- System M+ - Class A-E: 3.6 kg
BRAND
Fritsjurgens
CORROSION RESISTANCE
EN 1670 - class 5 (norm:0-5)
GAP
- Top Gap of System M+ — Class A-E :
- Bottom Gap System M+ — Class A-E :
MAXIMUM DOOR WIDTH
400 - 5000 mm
DOOR WEIGHT
Between 20 and 500 kg
DIMENSION
- System M+ — Class A-E : 294,8 x 32 x 99,6 mm
- System M+ — Class F-G : 308,2 x 42 x 112,7 mm

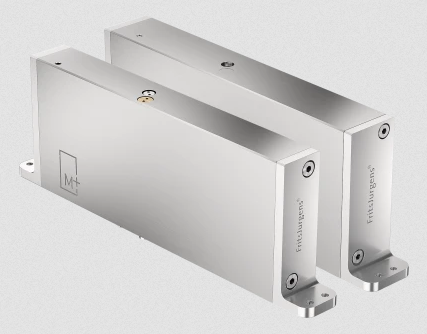

TYPE
WEIGHTCLASS A - E
System M+ Class A - E are for the most common doors. These hinges are smaller than class F and G and the minimum door thickness is 40 mm.
Dimensions: 294.8 x 32 x 99.6 mm; Weight: 2.6 kg; Min. Door thickness: 40 mm.
WEIGHTCLASS F - G
System M+ Class F and G are for heavier doors. These hinges are also bigger as class A - E and therefor the door has to be at least 50 mm thick. Dimensions: 308.2 x 42 x 112.7 mm; Weight: 3.6 kg; Min. door thickness: 50 mm.
VIDEOS
SELF-CLOSING
The System M pivot hinge is self-closing. This means that the door automatically moves towards the 0° position after being opened. The pivot door moves elegantly through the entire motion. Absolute control with FritsJurgens Inside.
SOFT CLOSE
The soft close function in the System M makes the door move in a single fluent motion. Effortlessly and as soft as a whisper the door elegantly closes.
WALL PROTECTION
When a door fitted with the FritsJurgens System M pivot hinge is opened, the System M protects the door against touching the wall because of the opening damping. The hydraulic backcheck in the System M ensures the pivot door is slowed down strongly when reaching 70° to prevent touching the wall. The opening damping makes the door open elegantly.
SPATIAL IMPACT
A pivot door is a design statement with a large spatial impact. Therefore, the hinges are double acting, which means they open towards both sides. By simply keeping the door still at 0°, 90° or -90° the door will hold these positions, allowing you to determine the spatial impact of your pivot door.
WITH THE TOUCH OF A FINGER
With just the touch of a finger, the door is set into motion. An effortless experience and a single fluent movement. Perfectly balanced.
DOUBLE ACTING
The System M pivot hinge is double acting. This means that the pivot doors can be opened and put into hold positions towards both sides. This gives you the freedom to determine the use of the pivot doors and the impact they have on the space.
