GROOVED ACOUSTIC WOOD PANELS – RP8
GROOVED ACOUSTIC WOOD PANELS – RP8
Gustafs grooved acoustic wood panels with stripe perforation gives you a beautiful designed panel with a linear look and excellent acoustics.The grooved wood panel enables you to create elegant and creative installations for both walls and ceilings with with the market’s highest fire class – A2-s1,d0
features

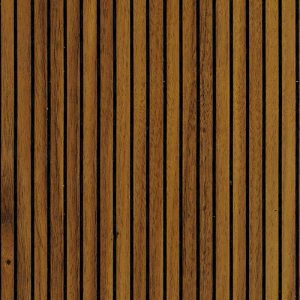

GROOVED PANELS WITH ELEGANT STRIPE DESIGN
Gustafs grooved acoustic wood panels with stripe perforation shows a less open area compared to hole or slot perforations, still giving a comparable acoustic absorptions. By using our dark fibre gypsum core as core material on our grooved panels, it enables you to create a stunning installation both for walls and ceilings.
GROOVED ACOUSTIC WOOD PANELS WITH CONTINUOUS PATTERN
Gustafs grooved acoustic panels shows a less open area compared to our standard or slot perforations, still giving comparable acoustic absorptions. The Gustafs grooved panels with Stripe pattern always ends with 1 stripe on the very edge of the panel, which will hide the joint between two panels, resulting in a “bezel free” continuous acoustic design. The grooved panels can be produced with or without a solid wood edge.
information
REACTION TO FIRE
- K1-10/K2-10 (EN 13501-2)
- A2-s1,d0 (EN 13501-1) (Valid for the whole panel, including the installation system, the surface, the surface treatment and all kinds of post treatments like cutting, milling)
TYPE
Gustafs Panel System
THICKNESS
13.2 mm
INSTALLATION SYSTEM
Gustafs Capax, aluminium profiles gripping the full length of the sides of the panels, levelling and aligning the panels.
JOINTS
- Wall non-demountable: Closed 0 mm / Open 5 mm, 10 mm, 13 mm
- Wall demountable: Open 5 mm, 10 mm, 13 mm
- Closed 0 mm (approved for all dimensions and both vertical & horizontal)
DOWNLOADS
↓ Product Sheet - Wall
↓ Product Sheet - Ceiling
ACOUSTIC FELT
- Black
- White
DIMENSIONS
- Standard : 600x600 / 1200x600 / 1500x600 / 1800x600 / 2400x600 mm
- Customized wall : lengths 300-3000 x widths 300-1200 mm
EDGE DESIGN
Grooved for use the Capax installation system
EDGES
Over veneered solid wooden edges on 4 sides
CORE
Reinforced fibre gypsum board, high density, 1150 kg/m³ (15,7 kg/m²

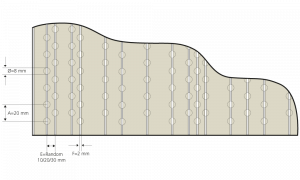

PERFORATION
RP8 BARCODE PERFORATION 8MM
- Absorption class D.
- Open area 1,6%
↓ RP8-Bar Acoustic Values
RP8-C20 PERFORATION 8MM
- Absorption class C.
- Open area 1,7%
↓ RP8-C20 Acoustic Values
RP8-C10 PERFORATION 8MM
- Absorption class A.
- Open area 2,8%
↓ RP8-C10 Acoustic Values
BENEFITS
A PANEL WITH MANY UNIQUE BENEFITS
Most of our products are based on a fibre gypsum board which has very good properties regarding both fire safety and acoustics. The panel is less sensitive to changes in temperature and humidity which in turn maintains the panels’ linearity over time. All together, this unique combination contributes to a panel suited for applications not only in large areas but also in a wide variety of demanding situations.
FIBRE GYPSUM CORE
Our panels are based on a fibre gypsum board which has excellent properties regarding dimension stability, impact resistance, fire safety and acoustics, demands which effectively eliminate most traditional wood-based choices. Gustafs panels are not sensitive to changes in temperature and humidity which in turn maintains the panels’ linearity and flatness over time. Altogether, this unique combination results in a panel suited for large areas and a wide variety of demanding situations.
ACOUSTICS
Acoustically, the use of innately heavy wall cladding is often favourable compared to lighter materials. Gustafs panels weight of 15 kg/m² is roughly twice as heavy as most wood-based panel materials.
IT’S A SYSTEM
Gustafs Panel System provides fully integral and concealed installation fixtures called Gustafs Capax. On top of that the installation is quick, reliable and cost saving, meeting the demands of today’s modern building processes. Due to the Fibre Reinforced Gypsum Core, the Gustafs Panels System is extremely dimension stable and allows beautiful “zero spacing installations” of large formatted panels up to 3000x1200 mm.
STABILITY
Wood based panels will show bulging or shrinkage when humidity and temperature change. A fiber gypsum board is considerably less susceptible to these effects. Over time this will result in a planer and more linear surface.
CONTINUOUS PATTERN
The Gustafs Stripe perforation shows a less open area compered to hole or slot perforations, still giving comparable acoustic absorptions.The Gustafs Stripe pattern always ends with 1 stripe on the very edge of the panel, which will hide the joint between two panels, resulting in a “frameless” and continuous acoustic design.
ENERGY SAVING
Due to the panel’s high density and its low level of thermal conductivity, the material helps to maintain room temperatures at a constant level and reduces the need for cooling or heating.
SUSTAINABILITY
Using a fiber gypsum core naturally results in extremely low emissions and a very high rate of recycled content. Being located in Sweden gives us the opportunity to produce with renewable power sources only.
FIRE
The high density nonflammable core and the surface veneer’s strongly bound adhesion to the fiber gypsum board make our panels “non-flammable”. Reaction to fire A2-s1,d0, resistance to fire K1 10/K2 10
