LAMELLOW+ LINEAR WALL PANELS
LAMELLOW + LINEAR WALL PANELS
Lamellow+ is our new combination of wood and felt, with all the qualities required for public environments.
Reaction to fire B-s1,d0, air emissions aproved by the most common types of certifications used in the building industry and sound absorption up to class A.
Ribs with real wood veneer, selected from the finest materials, are joined together with a visible felt backing. Lamellow+ is a versatile product that is easy and quick to install on flat and curved surfaces.
NATURAL WOOD NATURAL FIRE PROTECTION
The fire safety of Gustafs Lamellow+ comes from its material composition and is not reliant on chemical treatments. The Lamellow+ panel has the fire classification: B-s1,d0
design
CHOOSE YOUR DESIGN
Gustafs Lamellow+ can be made with seven different wood veneers and in two different designs: Lamellow+ Linear and Lamellow+ Barcode. It is also possible to create bespoke patterns. Please contact us for information.
LAMELLOW+ LINEAR DESIGN
Lamellow+ Linear Ash
- Rib dimension (TxW) 13 mm x 27 mm
- Spacing 13 mm
LAMELLOW+ BARCODE DESIGN
Lamellow+ Barcode Grey Oak
- Rib dimensions (TxW) 13 mm x 18 mm and 13 mm x 33 mm
- Repeated pattern 33 – 33 – 18 – 33 – 18 mm
- Spacing 13 mm
CORE DESIGN
The core of Lamellow+ ribs consists of reinforced fiber gypsum, dark or light core.
VENEERS DESIGN
ACOUSTIC FELT
AVAILABLE COLOS

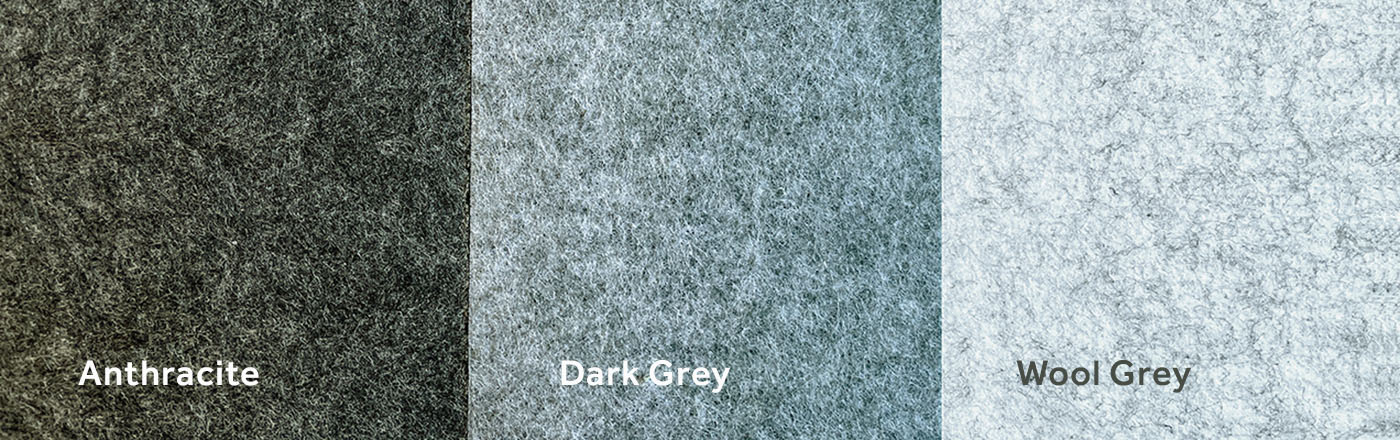

Depending on the colour of the acoustic felt backing, the overall impression of the veneer and the finished surface will vary. As a result, there are many possible designs and colour combinations. The felt is available in three colours: Anthracite, Dark Grey and Wool Grey.
Lamellow+ Barcode - American Oak - Wool Grey felt

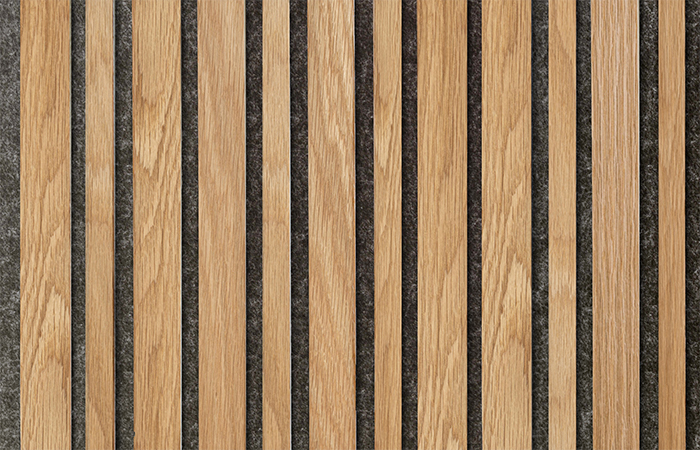

Lamellow+ Barcode - American Oak - Anthracite felt
OUR ACOUSTICFELT IS ALSO AVAILABLE IN DARK GREY FOR BESPOKE ORDERS.
FRAMING
PERFECT FRAMING
By using Lamellow+ framing profiles and additional felt strips, you will always have a perfect framing around your panel. The framing profile can be used on all sides of the panel edges and gives the installation a solid wood feel.
VENEERS
INFORMATION
RIB DIMENSIONS BARCODE (TxW)
- 13x18 mm
- 13x33 mm
- Repeat pattern 33-33-18-33-18 mm
FIRE CLASS
B-s1,d0 (EN 13501-1)
WEIGHT
19,4 kg for 1,44 m²
SPACING
13 mm (for both linear and barcode, resulting in a total 32,5% open area for both designs)
RIB DIMENSIONS LINEAR
13x27 mm (TxW)
FRAMING
Additional end f inish sides or top with Gustafs Framing List in matching Veneer.
TOTAL PANEL DIMENSIONS
2x2400x600 (TxLxW), 1,44 m²
INSTALL ATION
15 screw or nails in the felt, between the ribs or 15 gluing points per panel. The Lamellow+ panels are installed with imbricated, hidden joints.
CURVED INSTALL ATION
Yes, down to convex radius 1000 mm
SURFACE TREATMENT
- Triple UV coating system
- Natural woodgrain/oil look
SOUND ABSORPTION CLASS
-Wall/Ceiling, direct installation αw 0,30-DNCR 0,55 -Wall/Ceiling, plus 45 mm mineral wool αw 0,95-ANCR 0,95 -Suspended Ceiling, plus 200 mm air void αw 0,90-ANCR 0,85
JOINTS
Hidden imbricated joints
PRODUCTION
Made In Sweden
AIR QUALIT Y, EMISSIONS
- E1 / E0.5 / E1 Plus / Super E0 M1
- Blue Angel / BDF / AgBB
- JIS / JAS F***
- Belgian VOC Regulation
- French VOC Regulation
- BREEAM International / LEED
- Svanen / Byggvarubedömningen / Sunda Hus
VENEERS
- American Oak
- Knotty Oak
- Wild Oak Grey
- Wild Oak Smoked
- Ash
- Birch
- Walnut
RIB CORE
- Reinforced f ibre gypsum, high density, 1200 kg/m³
- Anthracite or Light Grey colou
ACOUSTIC CARRIER FELT
- Anthracite felt : -American Oak -Knotty Oak -Walnut -Wild Oak Smoked -Wild Oak Grey
- Wool Grey felt: -Ash -Birch -American Oak -Knotty Oak
