Reynaers Slimline 38 Window Systems
SLIMLINE 38 WINDOW SYSTEMS
SLIMLINE 38 WINDOW SYSTEMS

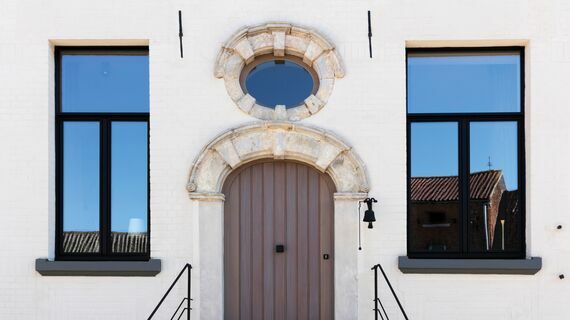

Its slender and user-friendly design makes the SlimLine 38 high-insulation system the perfect fit for any contemporary project.
The durable aluminium windows and doors offer unlimited design freedom thanks to their multiple minimalistic variants.
ENDLESS POSSIBILITIES
DESIGN
- Classic : This product has been developed to mimic the slender look of steel windows, and the Classic variant sports an inclined surface.
- Cubic : This product has been developed to mimic the slender look of steel windows, and the Cubic variant sports a stepped surface.
- Ferro : This product has been developed to mimic the slender look of steel windows, and the Ferro variant features sharp straight lines and shadow gaps.
ENERGY
This product line spans a large range of insulation values. The standard variant is already sufficient in a lot of regions, but the High Insulation variant improves this even further.
SAFETY
The system comes in a burglarproof variant for additional peace of mind.
INFORMATION
MIN. HEIGHT OF ELEMENT
639 mm
MAX. HEIGHT OF ELEMENT
2839 mm
VENT FRAME
- Depth frame 99 mm
- Depth vent 86 mm
- Depth frame-vent 99 mm
MIN. WIDTH OF ELEMENT
489 mm
DEPTH FRAME-VENT
99 mm
FLYSCREEN
Enjoy cool summer evenings, without losing sleep.
MAX. WIDTH OF VENT
1200 mm
MAX. HEIGHT OF VENT
2800 mm
CONCEALED HINGES
The details are the design, concealed hinges are the finishing touch.
MAX. WIDTH OF ELEMENT
1239 mm
MIN. HEIGHT OF VENT
600 mm
CONCEALED DRAINAGE
No more plastic cover caps, enjoy those clean lines.
BALUSTRADE
Safety can equal beauty
MAX. WEIGHT OF VENT
170 kg
SAFETY
- Burglar Resistance : RC2, WK2, PAS 24
- Opening & Closing Resistance : Class 3
ENERGY
- Thermal insulation - Uf : 1.9 W/m²K
- Thermal insulation - Uw : 1.4 W/m²K
GLASS CORNER
Glass to glass connection without profiles obstructing the view
COMFORT
- Air Tightness : Class 4 (600Pa)
- Water Tightness : Class 9A (600Pa)
- Wind Load Resistance : Class C4 (1600Pa)
- Acoustics - Rw(C;Ctr) : 45(-1,-5) dB
DATA
- Steel look doors in a variety of styles
- Suits modern new-builds as well as renovations
- High thermal insulation
GLAZING
- Rebate Height : 13.5 mm
- Max. Glass Thickness - Vent : 55 mm
- Min. glass thickness - vent : 16 mm
- Min. Glass Thickness - Frame/element : 16 mm
- Max. Glass Thickness - Frame/element : 55 mm
- Glazing Method : Dry glazing, Siliconized glazing, Internal glazing, Glazing bead
SIGHTLINES
- Min. Width T-profile : 48 mm
- Profile Design Slope : 24.2 degrees
- Min. Frame Width (Inward Opening) : 33.5 mm
- Min. Vent Width (Inward Opening) : 23 mm
- Min. Frame-vent Width (Inward Opening) : 67 mm
- Min. Frame Width (Outward Opening) : 29 mm
- Min. Vent Width (Outward Opening) : 60.5 mm
- Min. Frame-vent Width (Outward Opening) : 80 mm
