FLUSHGLAZE FIXED MULTIPART SKYLIGHT
FLUSHGLAZE FIXED MULTIPART SKYLIGHT

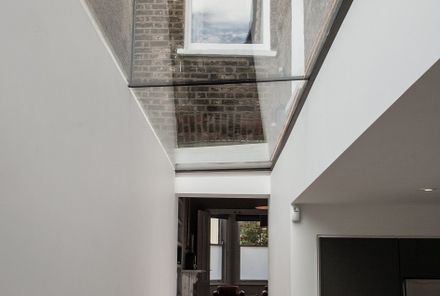

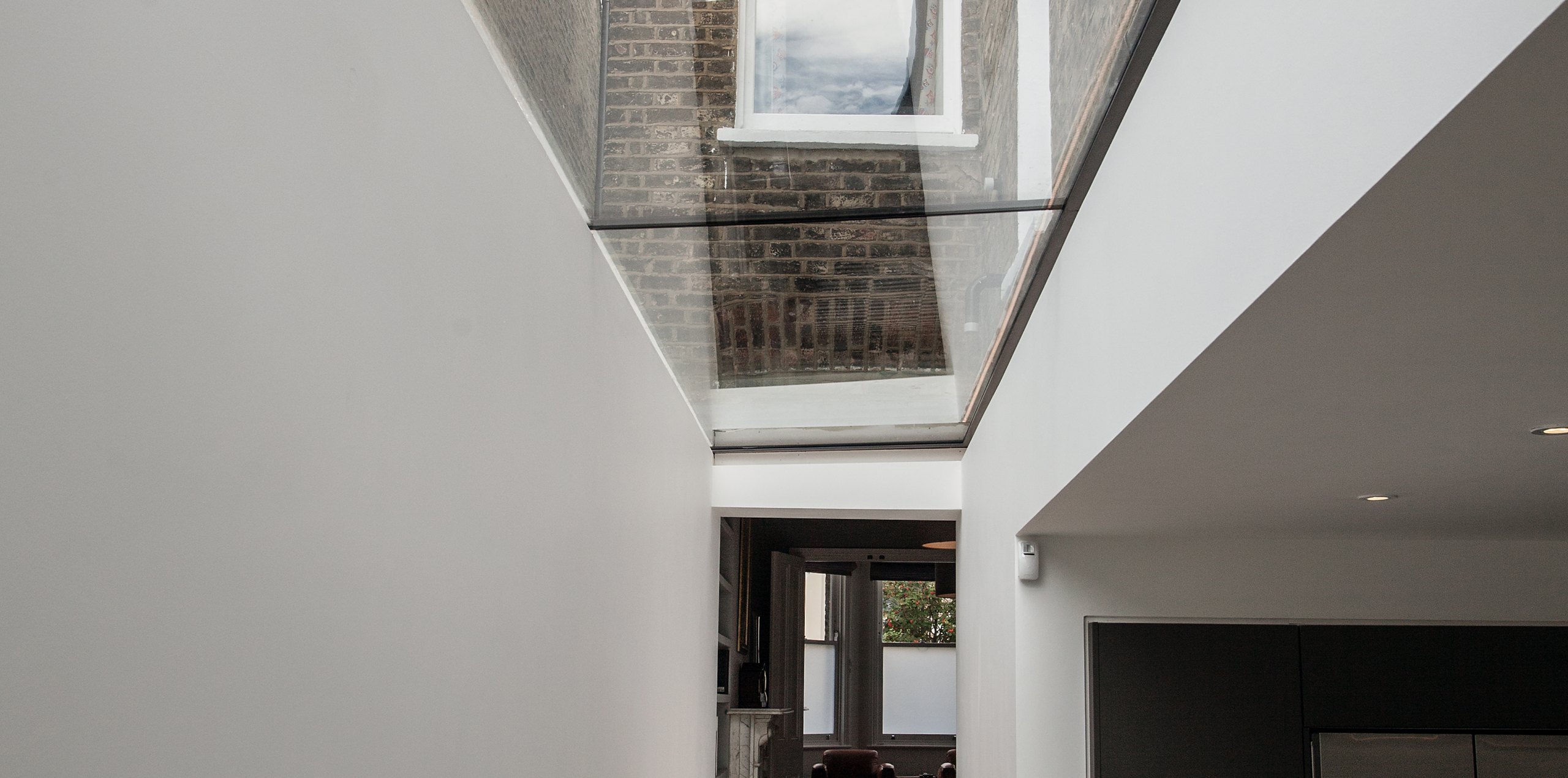

The beauty of the Flushglaze system is its flexibility, meaning it can be used in a variety of applications – from residential, to commercial buildings. If you are working to a span up to 40”, then a simple silicone seal is the only requirement to secure the panels together.
I This is a great solution if you are looking to maintain the ‘frameless’ internal appearance of your skylight. Large areas of glazing can be linked together using a variety of different methods.

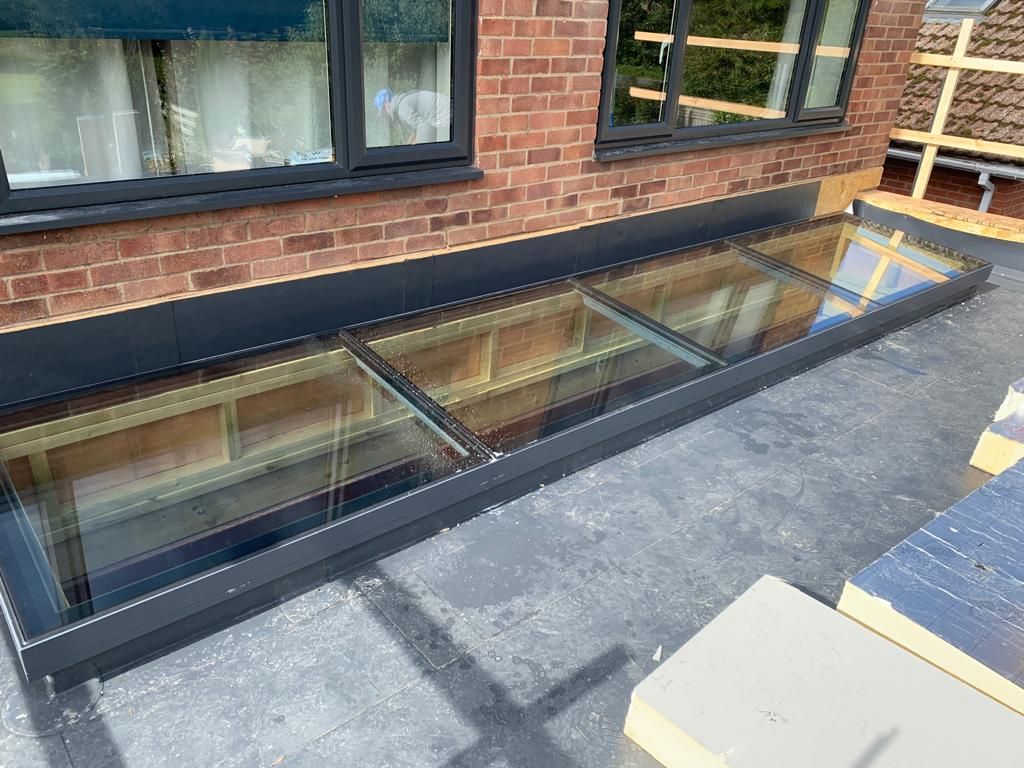

For larger spans you will need something stronger to safely support the joint between the glazed panels. The Flushglaze modular system can also be specified with back to back aluminum ‘T’ angles for structural support.

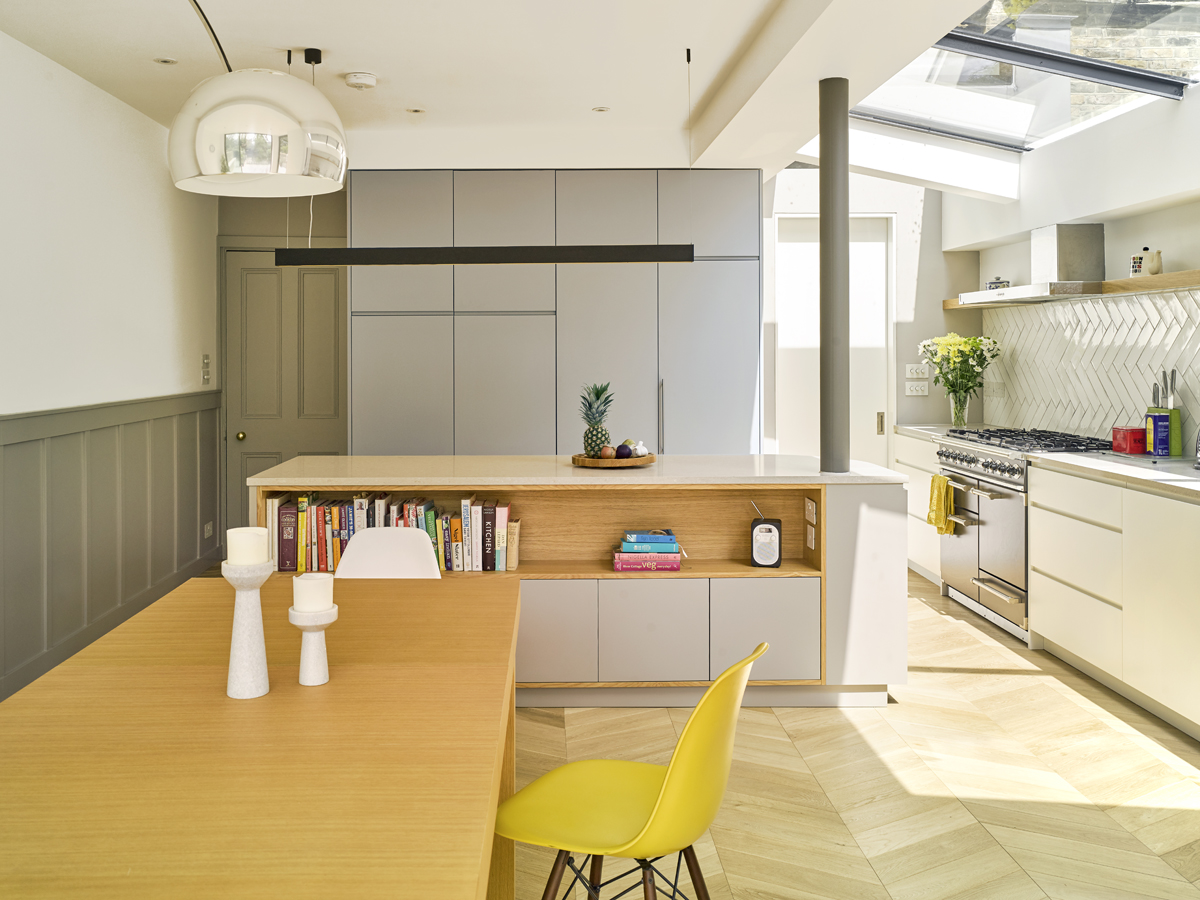

This option tends to fit in very well with modern interiors, particularly when paired with folding or sliding door systems, the internal angles can be powder coated to any RAL color of your choice.
INFORMATION
WALKABLE
A walkable product using backto-back angles to support the edges of the walkable glazed units at their joints.
BACK-TO-BACK
An internal beam formed of two back-to-back angles is used to support the edges of the glazed units at their joints.
GLASS-FIN
A heat-strengthened laminated glass fin is used to support the edges of the glazed units at their joints.
SUITABLE FOR
The Flushglaze modular skylights are perfect for projects looking to make a statement, inviting the open sky indoors while delivering the highest safety standards.
EXTERNAL WEATHERED CURB DIMENSIONS OF STANDARD FLUSHGLAZE UNIT
- Min Section Span : 16”
- Min Section Width : 16”
- Min Section Area : 1.8 ft2
- Min Curb Pitch: 5/8” : 12” (3°)
- Max Section Span : 157”
- Max section Width : 157”
- Max Section Area : 107.6 ft2
- Max Curb Pitch: 32-7/8” : 12” (70°)
EXTERNAL WEATHERED CURB DIMENSIONS OF WALKABLE FLUSHGLAZE UNIT
- Min Section Span : 16”
- Min Section Width : 16”
- Min Section Area : 1.8 ft2
- Min Curb Pitch: 5/8” : 1/4” : 12” (1°)
- Max Section Span : 157”
- Max section Width : 157”
- Max Section Area : 107.6 ft2
- Max Curb Pitch: 32-7/8” : 12” (70°)
INTENDED USE
Fixed skylight to provide natural daylight and weather resistance. The product is fixed and does not open. Only walkable units may be walked on.
STANDARD COLORS
Qualicoat approved RAL 7015 slate grey outer, where inner framework is visible (back-to-back and walkable units), this is also RAL 7015 as standard.
GLAZING
-A wide variety of glazing specifications are available for this product. Your technical sales advisor will be happy to answer any questions regarding specific glass specifications or glazing performance requirements. Otherwise, quotes include suitable and cost effective glazing proposals. -Unless otherwise stated, the default loadings used for specifying walkable glass will be a distributed load of 100 psf and a concentrated load of 450 lbf per a 2” x 2” square area. A variety of anti-slip finishes are available for walkable glass.
BENEFITS
- No external capping
- Can be wall abutted
- Heat soak tested low e safety glass as standard
- The original glass skylight for flat roof applications
- Silicone seal, aluminium angle or glass fin support
- Available in bespoke sizes and glass specifications

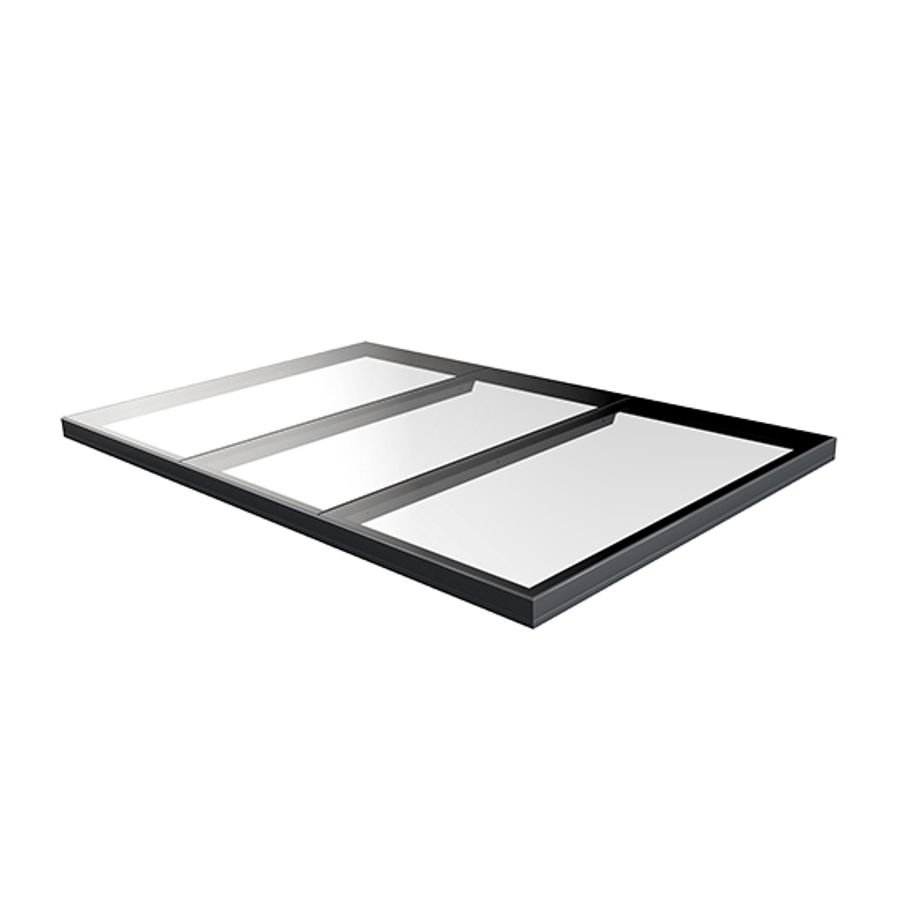

- Modular system allows multiple glazed sections linked togther
SELF-SUPPORTING
A simple weathertight silicone joint is used between the glazed units.
KEY FEATURES
- No external capping
- Can be wall abutted
- Heat soak tested low e safety glass as standard
- Silicone seal, aluminium angle or glass fin support
- The original glass skylight for flat roof applications
- Available in bespoke sizes and glass specifications
- Modular system allows multiple glazed sections linked togther
MAINTENANCE
If you’re looking to maintain an all glass finish, the Flushglaze modular system can be specified using glass fins as structural support instead of aluminum angles. These are a real architectural feature and offer a slightly more elegant finish. The fins are heat soak tested, tempered laminated, for maximum strength and are supported at each end by stainless steel brackets.
