Schoeck Isolink® For Concrete Façades
ISOLINK® FOR CONCRETE FAÇADES
ISOLINK® FOR CONCRETE FAÇADES
For energy-efficient precast walls.Schöck Isolink® for concrete façades.
The Schöck Isolink® is the energy-efficient alternative to conventional stainless steel dowels when connecting the concrete layers of core-insulated sandwich panel walls.
solutions

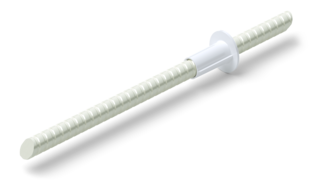

ISOLINK® TYPE C-EH
Façade fasteners for core-insulated element walls with supported facework.

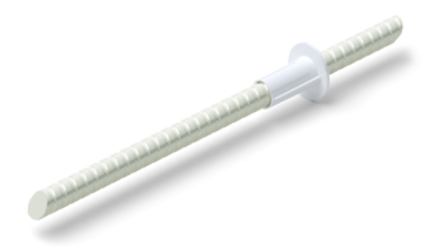

ISOLINK® TYPE C-ED
Façade fasteners for core-insulated element walls with self-supporting facework. Used diagonally in conjunction with Isolink® type C-EH.

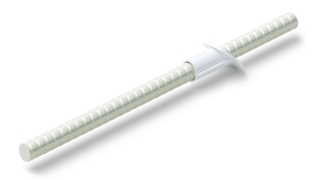

ISOLINK® TYPE C-SH
Façade fasteners for core-insulated sandwich walls with supported facework. With depth stop for high-end exposed concrete façades.
ISOLINK® TYPE C-SD
Façade fasteners for core-insulated sandwich walls with self-supporting facework. With depth stop for high-end exposed concrete façades. Used diagonally in conjunction with Isolink® type C-SH.
BENEFITS
LASTING
Precast concrete façades are robust and durable. Furthermore, they have the advantage of being adaptable to existing architectures – whether in terms of colour, surface finish, corners or reveals.
INDIVIDUAL
When it comes to the design of surfaces, colour, feel and shape, concrete façades are characterised by their great versatility. Wet concrete provides a high degree of freedom in designing any surface, shape and quality, with the help of appropriate formwork systems.
HIGH QUALITY
Concrete façades have a high level of soundproofing and fire protection. Furthermore, non-metallic anchors minimise thermal bridges through the insulation and thus lead to an optimum U value. In addition, the high storage mass of concrete sandwich walls ensures a high level of comfort inside the building.
ECONOMICAL
Large structural components offer economic benefits due to the combination of gap-free surfaces and structural functionality.
INFORMATION
USE
Concrete Façades
APPLICATIONS
Construction
CHARACTERISTICS
- Glass-fiber Composite Design
- Low Thermal Conductivity
- Energy-efficient
- Easy Installation
CERTIFICATION
- Certified Passive House Component
-Approved by the German Institute for Structural Engineering (DIBt)
MATERIAL
Stainless Steel
DEPENDABLE THERMAL INSULATION
As a ‘Certified Passive House Component’, Schöck Isolink® guarantees dependable thermal separation in core-insulated concrete façades. This is due to the exceptionally low thermal conductivity of Combar® glass fibre composite from Schöck.
EASY TO INSTALL WITH ALL INSULATING MATERIALS
Compact and easy to install, Schöck Isolink® also improves cost efficiency when prefabricating concrete building components The round bar is easy to insert into the thermal insulation layer. It is a system that is suitable for any core-insulated wall.
FOR HIGH-END EXPOSED CONCRETE FAÇADES
The product types with „depth stop“ (C-SH and C-SD) enable the construction of high-end exposed concrete façades.
HIGH FUNCTIONALITY AND SAFETY
Schöck Isolink® also acts as a connector and spacer between the concrete layers within the wall. It is suitable both for supported and self-supporting façades and facilitates large-scale panel sizes up to 6 x 12 m before an expansion joint is required. All Schöck Isolink® product types for concrete façades have been tested and approved by the German Institute for Structural Engineering (DIBt).
