THE CHANNEL HAND DRYER - TSL.C.061
THE CHANNEL HAND DRYER
TSL.C.061
With an acoustically insulated and powerful blower unit, the Channel Hand Dryer offers a quiet user experience with fast and efficient drying times. Furthermore, with a touch free sink mounted system, there are no longer any drips carried across your washroom floors.
The Channel reimagines this same journey for The Splash Lab, challenging the aesthetics and fitting the slimmer fixtures with the same innovative technology as The Ribbon.
FEATURES
SLIMMER FIXTURES AND INNOVATIVE TECHNOLOGY
In 2014 TSL innovated the design and configuration of sensor fixtures with the launch of The Ribbon, a set of deck-mounted pieces that articulated a step for each event of the hand-washing ritual (soap, water, and air), conveniently located over the basin to minimise errant water in the washroom environment and promote a harmonious user experience.

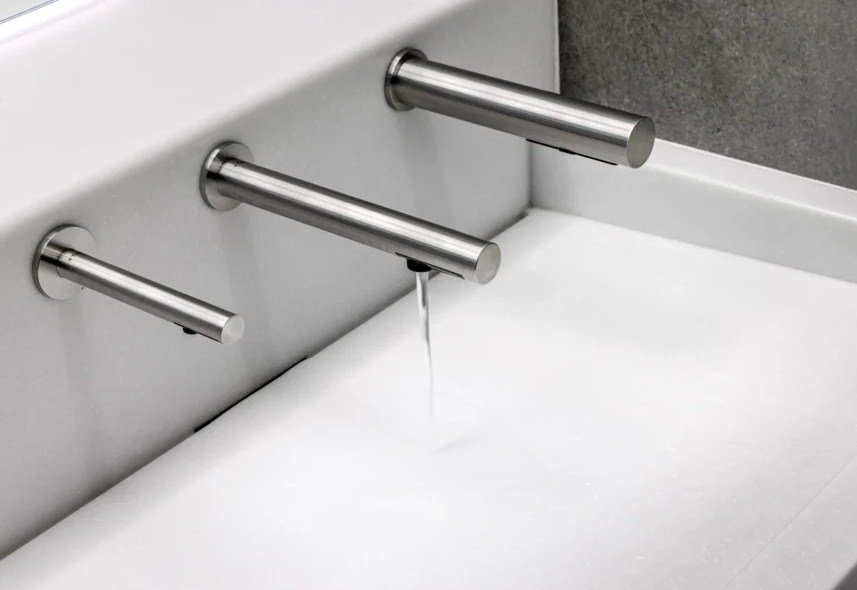

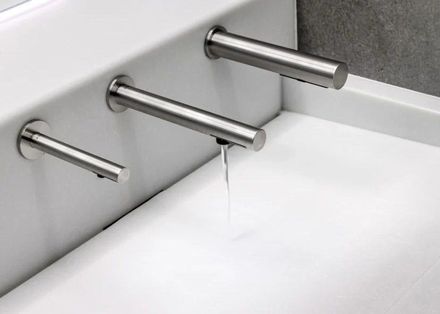

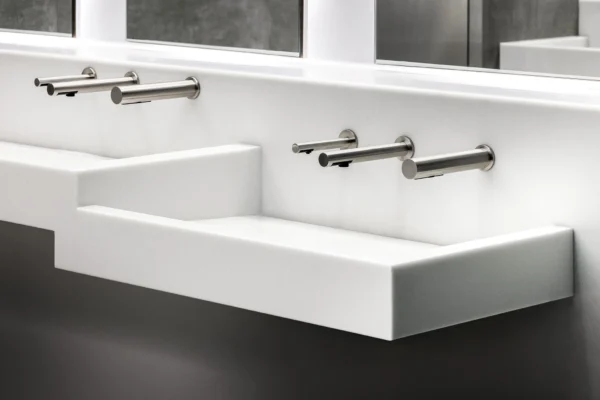

With specifications rising for wall-mounted fixtures, the brand created a design for a trio of cylindrical, wall-mounted fixtures using the same principles – sanitise, rinse and dry over the basin.
The Channel reimagines this same journey for The Splash Lab, challenging the aesthetics and fitting the slimmer fixtures with the same innovative technology as The Ribbon.
HARMONIOUS IN FORM AND FUNCTIONALITY
Designed with the other Channel Fixtures to conform to the Golden Ratio for harmonious proportions, the dryer has a marine-grade stainless steel housing engineered to its barest and most perfect form: an uninterrupted cylinder.
A small vent on the underside of the fixtures produces a gentle but powerful stream of air that directs water off the hands and into the basin in a process that is both pleasant and hygienic. The sensor is placed just in front of the vent, so triggering the airflow is a seamless and intuitive gesture for the user.
REASONS TO CHOOSE : DESIGN FOR DESIGNERS
As the specification of wall-mounted fixtures increases, The Channel fulfils a need for a space-saving design that reduces errant water in the washroom.
TRUSTED TECHNOLOGY, REDEFINED
The same technology inside the award-winning Ribbon System is reimagined for wall-mounted fixtures.
BEAUTIFULLY TOUCH FREE
Reliable IR sensors placed in front of the dispensing point trigger a single, intuitive gesture.
SIMPLY VERSATILE
Elegant enough for boutique installations and small spaces; efficient enough for high-traffic restrooms.
EASY ACCESS
The optional access panel offers a simple solution benefiting installers and users alike.
information
BRAND
Thesplashlabusa
MATERIAL
AISI 316 stainless steel
STANDBY POWER
0.3-0.4W
VOLTAGE
220-240V ac; 50/60Hz
MOTOR TYPE
Brush type; dual ball bearings
SPECIFICATIONS
- Easy maintenance
- IR Sensor operated
- Wall-mounted design
- Marine-grade stainless steel housing
CURRENT DRAW
3.8-4.2A
POWER CONSUMPTION
0.84-1.0kW
DRYING TIME
<15 seconds
NOISE LEVELS
68.6dB
AIR SPEED
93-110 m/s
MOTOR POWER
500-350W
WARRANTY
1 year warranty on parts and labour

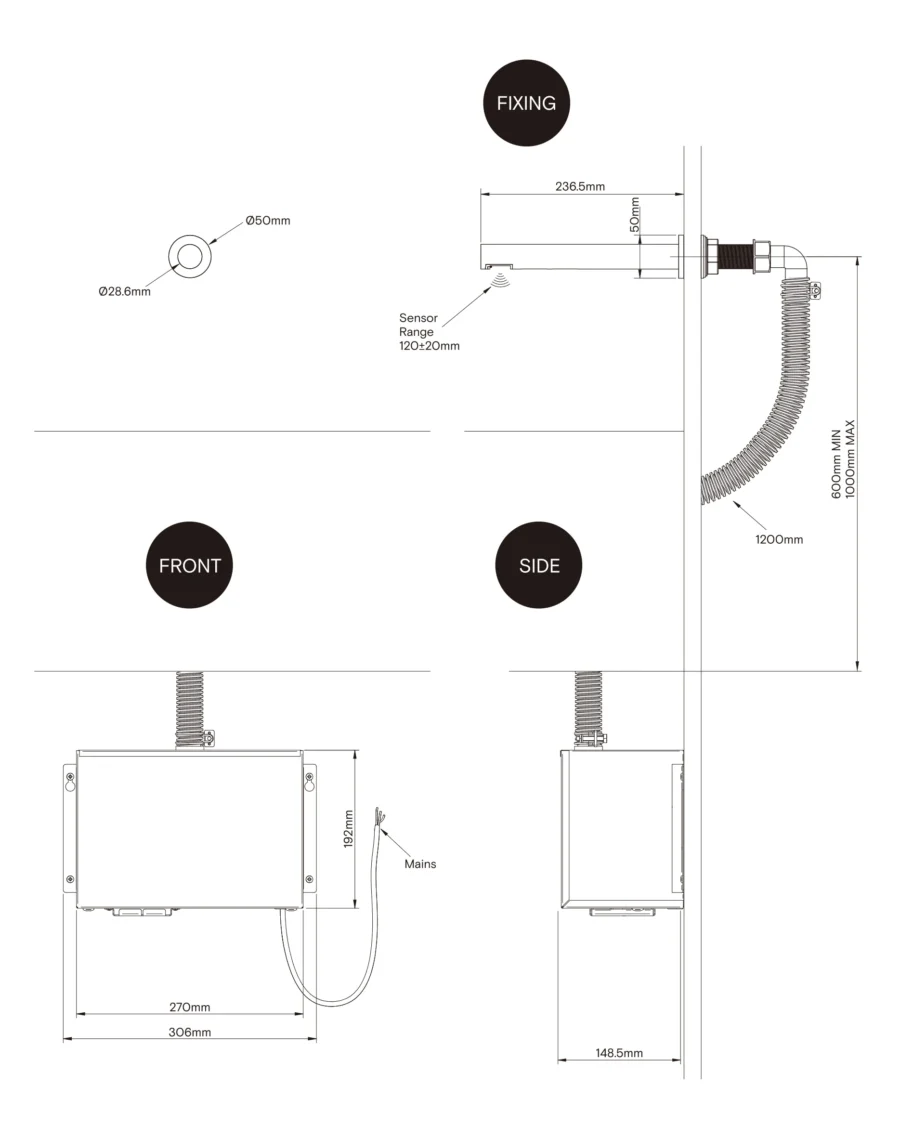

TECHNICAL DRAWING
DATA
With an acoustically insulated and powerful blower unit, the Channel Hand Dryer offers a quiet user experience with fast and efficient drying times. Furthermore, with a touch free sink mounted system, there are no longer any drips carried across your washroom floors.

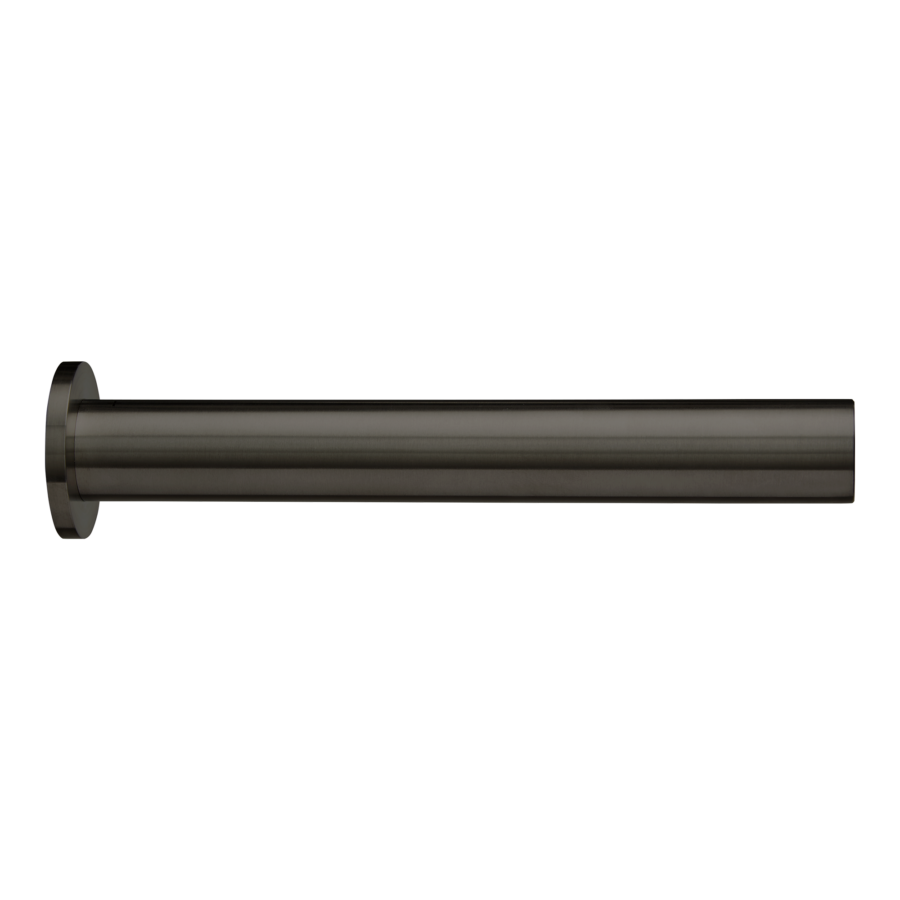

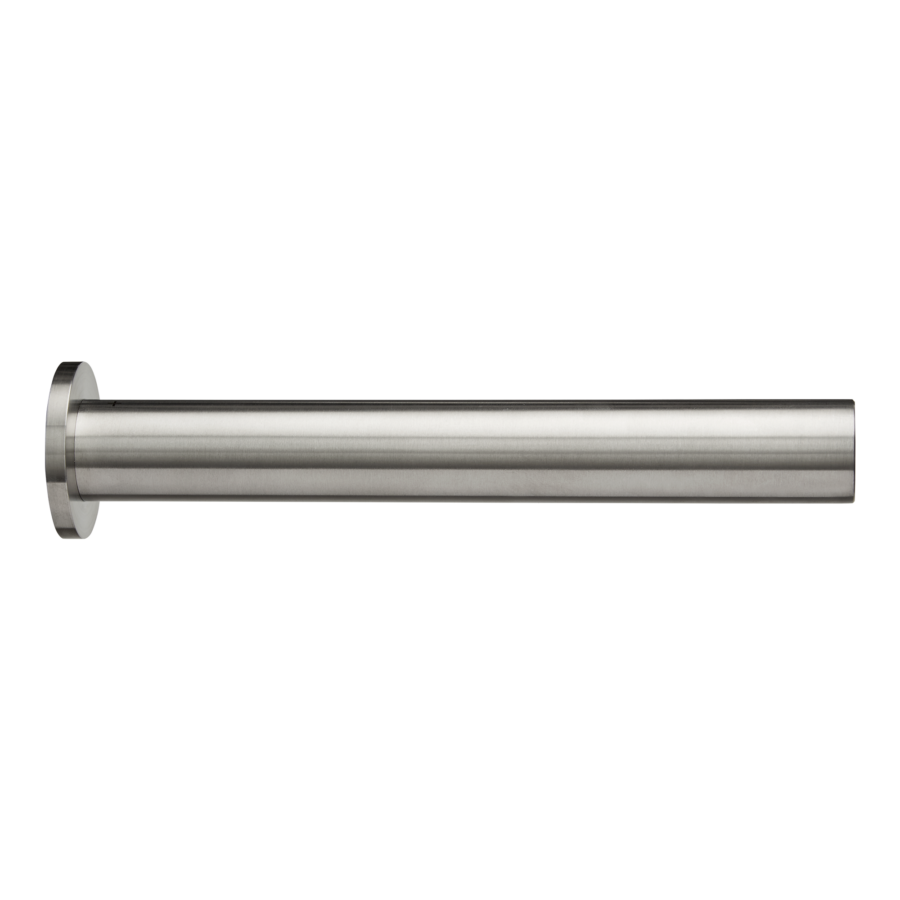

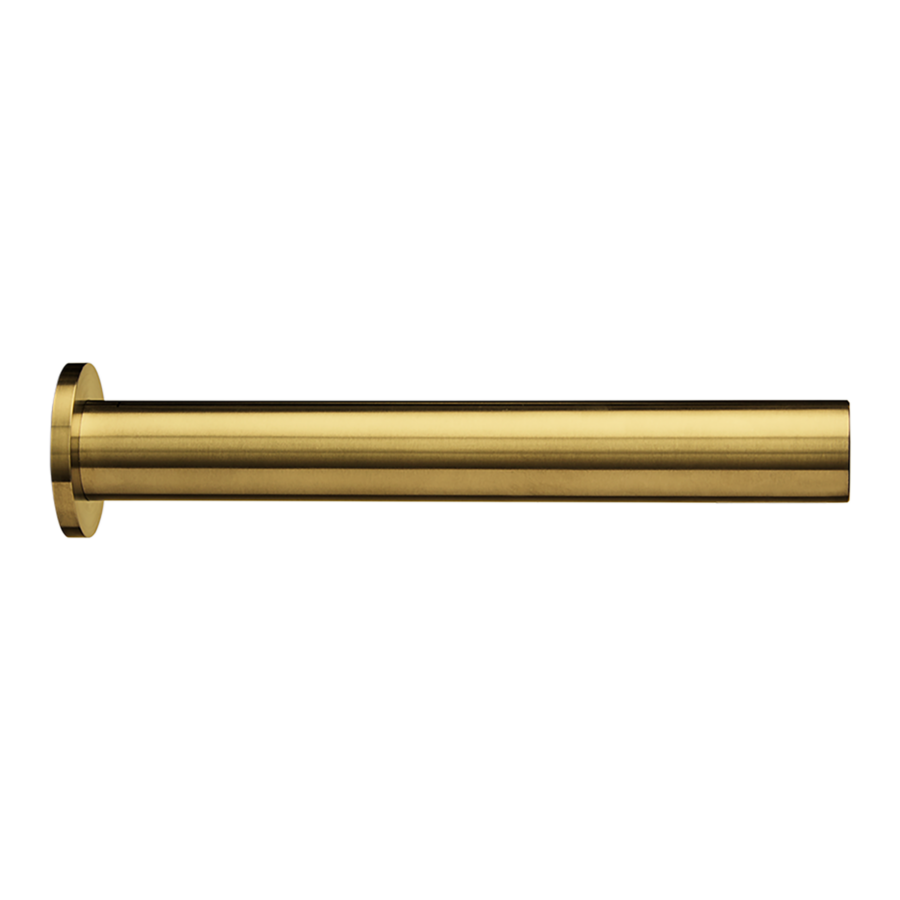

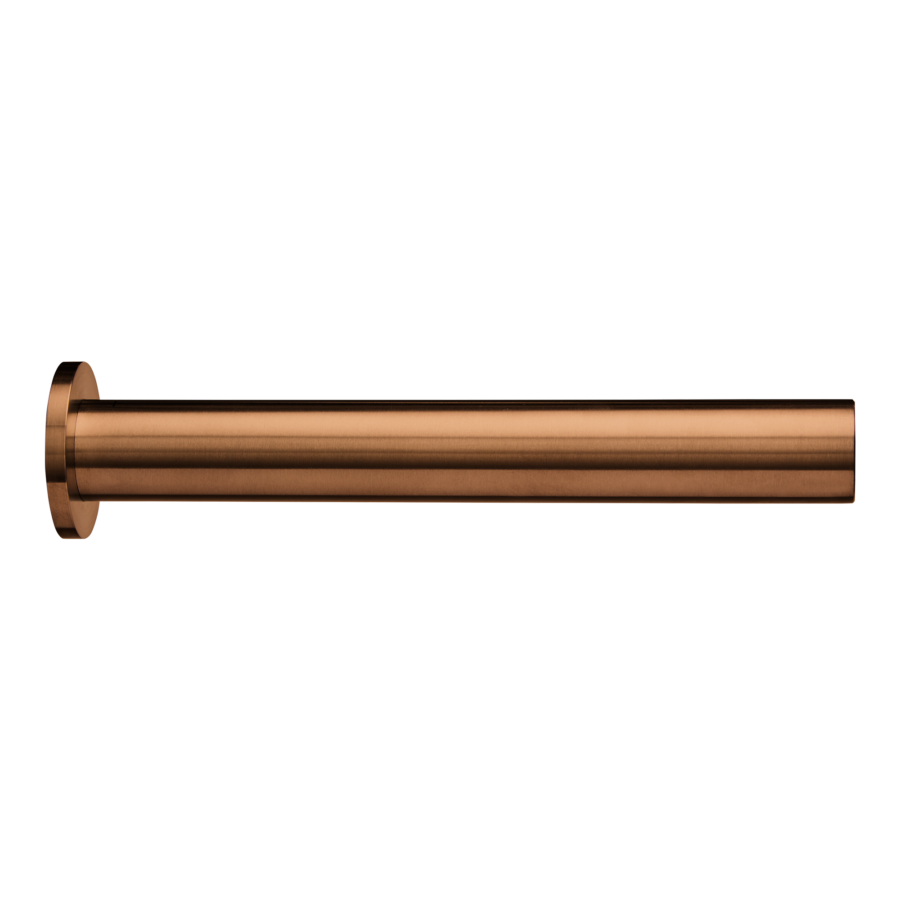

COLORS
