MLS72 TB LIFT & SLIDE SYSTEMS
MLS72 TB LIFT & SLIDE SYSTEMS
Steel | Cor-ten Steel | Stainless Steel

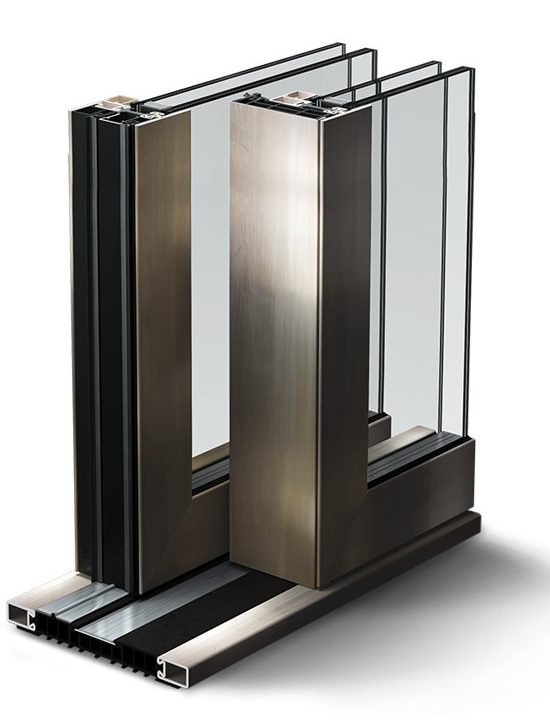

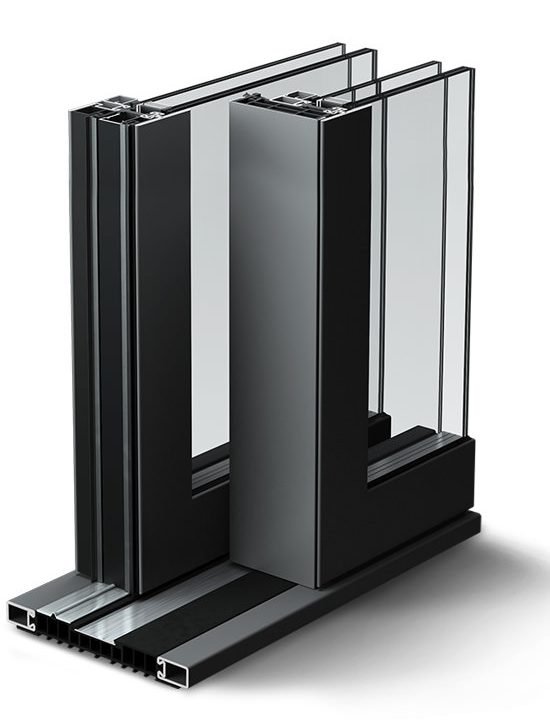

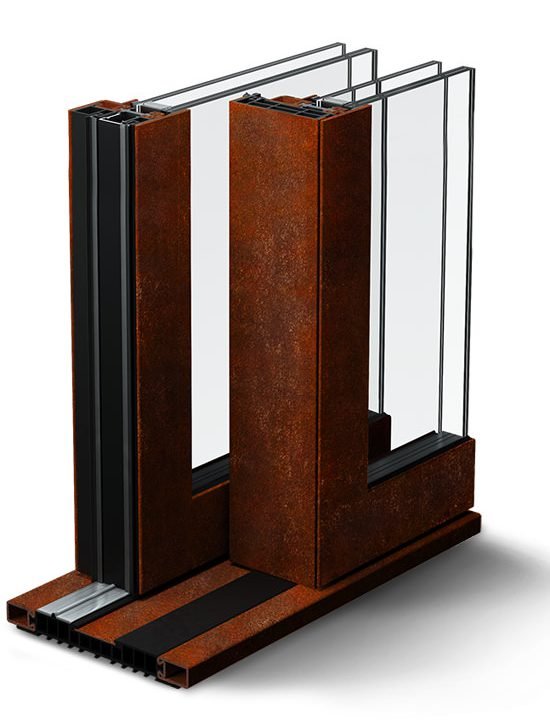

The code “MLS72 TB” stands for an extensive family of thermal barrier lift and slide door solutions in steel, galvanized steel, cor-ten steel and stainless steel marine grade AISI 316L.
All profiles are cold formed with 2mm thick steel – ideal solution for large glazing with weights up to 600 kg.
The 72 mm profile depth is a perfect compromise between design and security. The extremely strong framing material accommodates security glass up to 50 mm and can be automated.
INFORMATION
PRODUCT TYPE
Steel Structure Hardwares
BRAND
Ottostumm
PRODUCTION
Made In Switzerland
CERTIFICATION
Recognized By Green Guide
DIMENSIONS
- Height : 187 cm
- Width : 40 cm
- Width : 24 cm
USE
Interior Partitions
INSULATION
Thermo-Acoustic
APPLICATIONS
- 19th/20th-century Renovation
- Residential
- Commercial
- Institutional
CHARACTERISTICS
- Choice Of Type And Finish
- High Stability Profiles
- Can Span Large Areas
- Natural Surface Finishes
FEATURES OF MLS72 TB
- 2 mm tubular profile with extremely high moments of inertia
- Aesthetic cover cap with insulating material
- Thermal barrier in polyamide PA 6.6
- Insulated front strike
- Mechanically fixed rebate gaskets
- Profiles available in galvanized steel, cor-ten and stainless steel AISI 316L
- Water drainage
- Profiles accommodate high-performance glazing
- Wide range of square and angular glazing beads
- Fittings with concealed sliding mechanism
- Manual opening up to 400 Kg and automated up to 600 Kg, single and multiple sliding, pocket solution
COLOR
- Steel
- Cor-ten Steel
- Stainless Steel
DETAIL

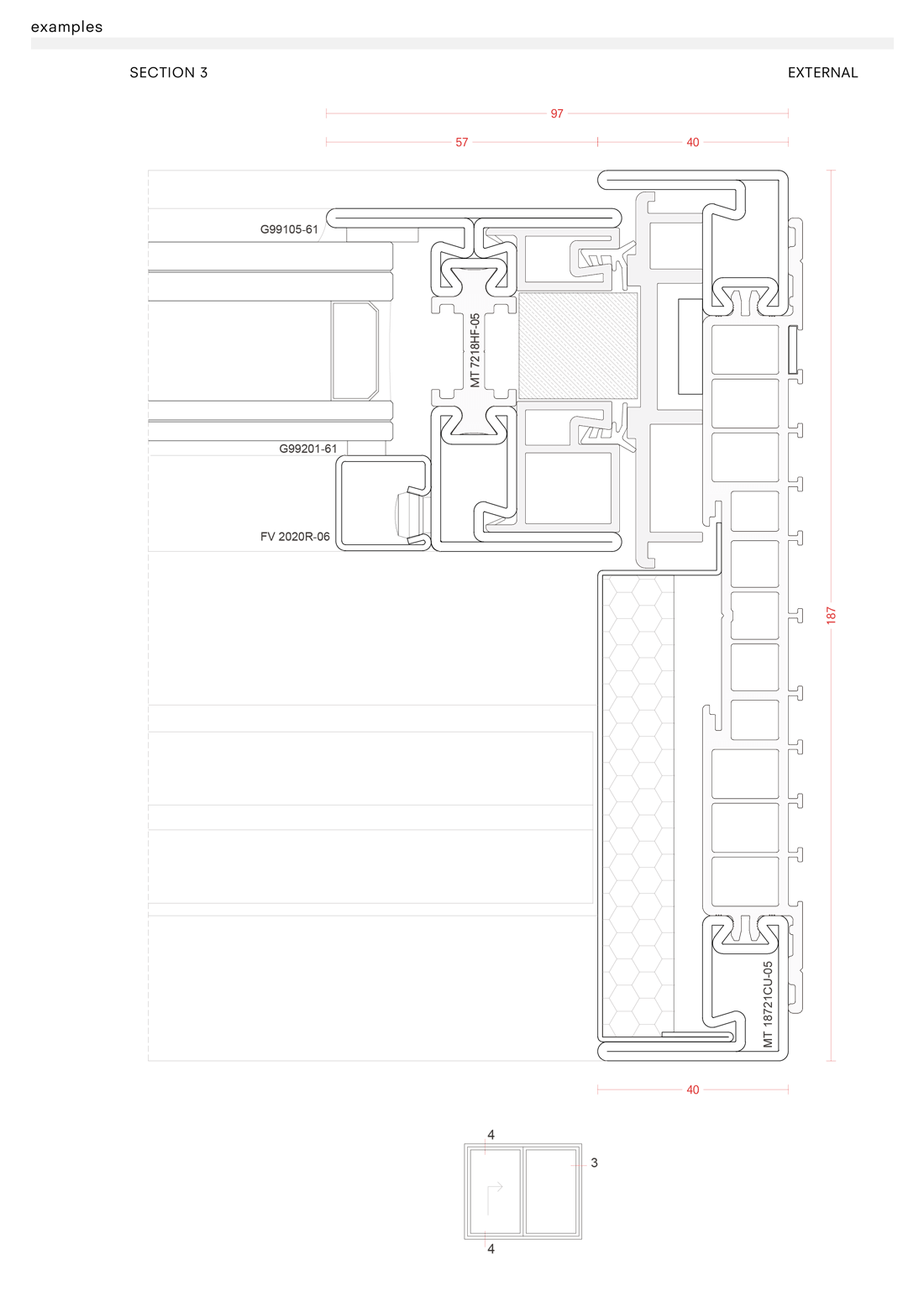

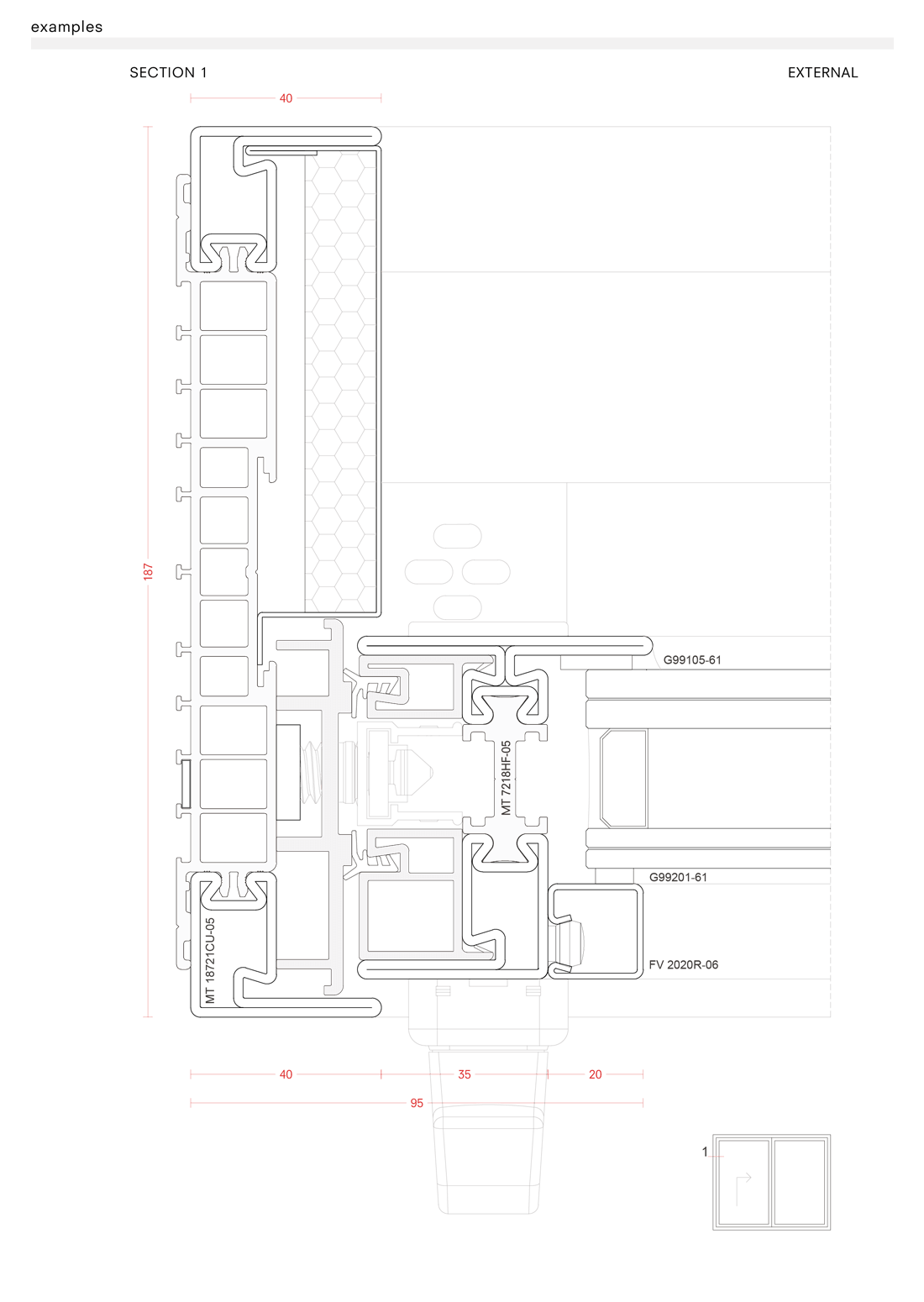

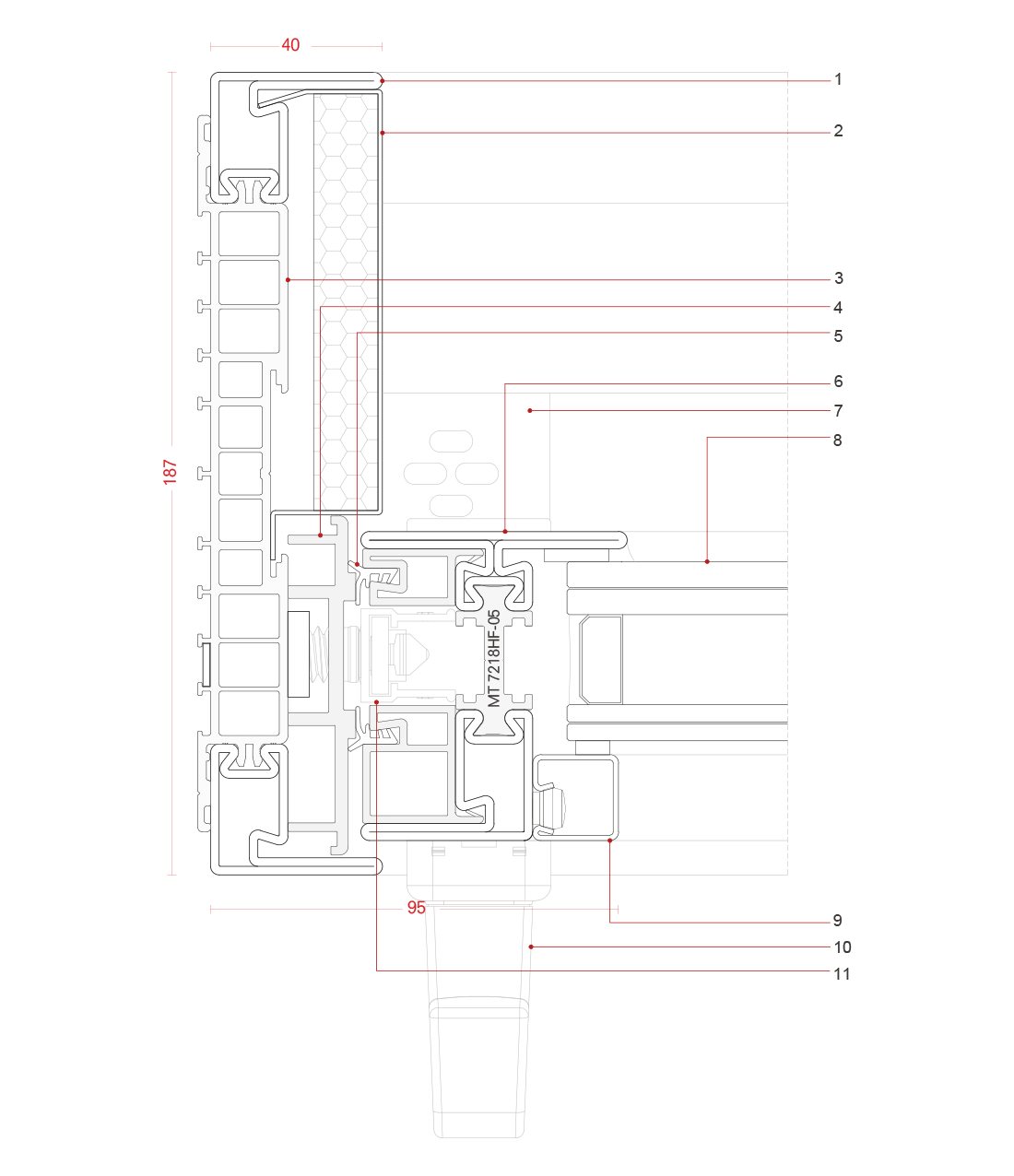

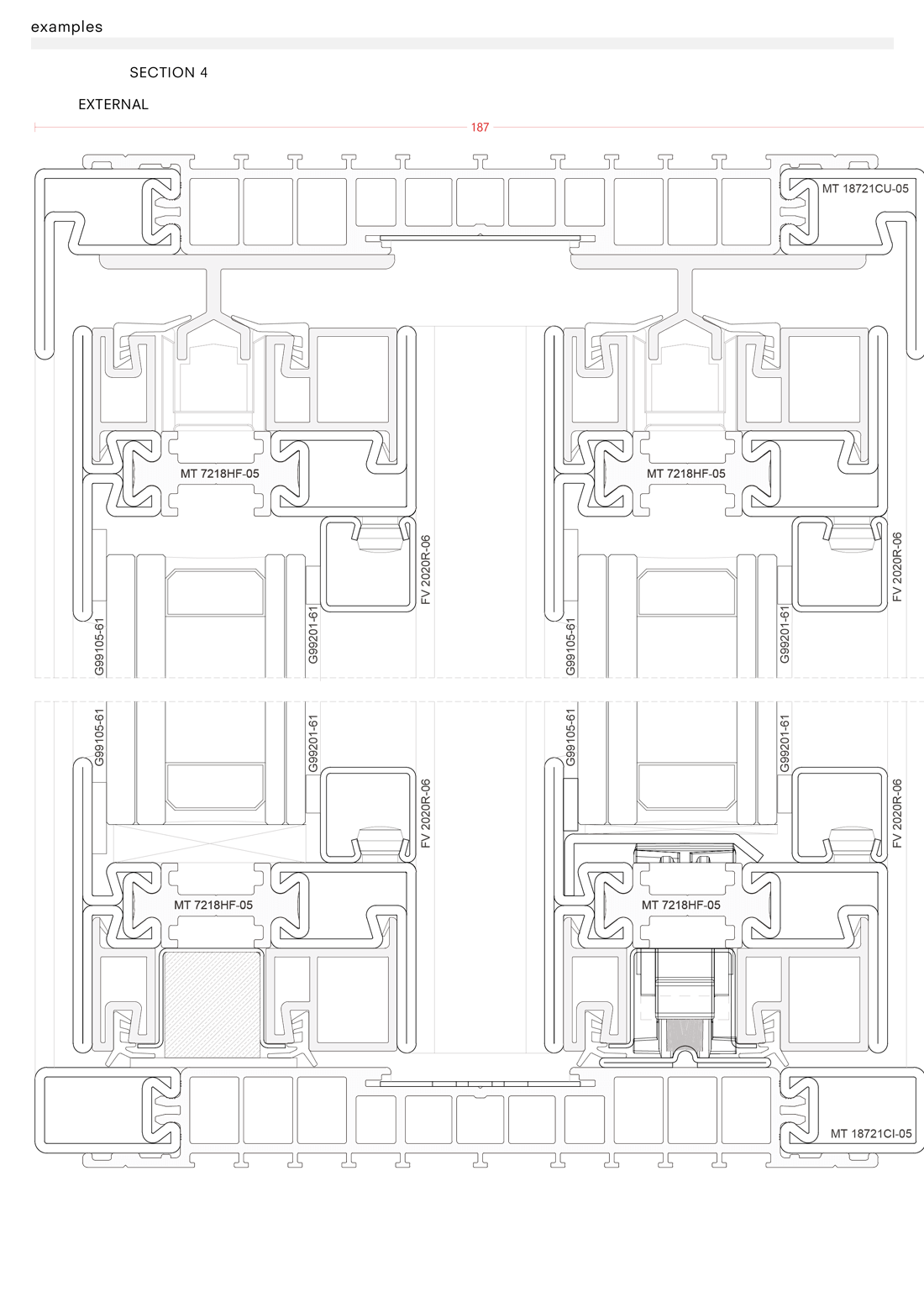

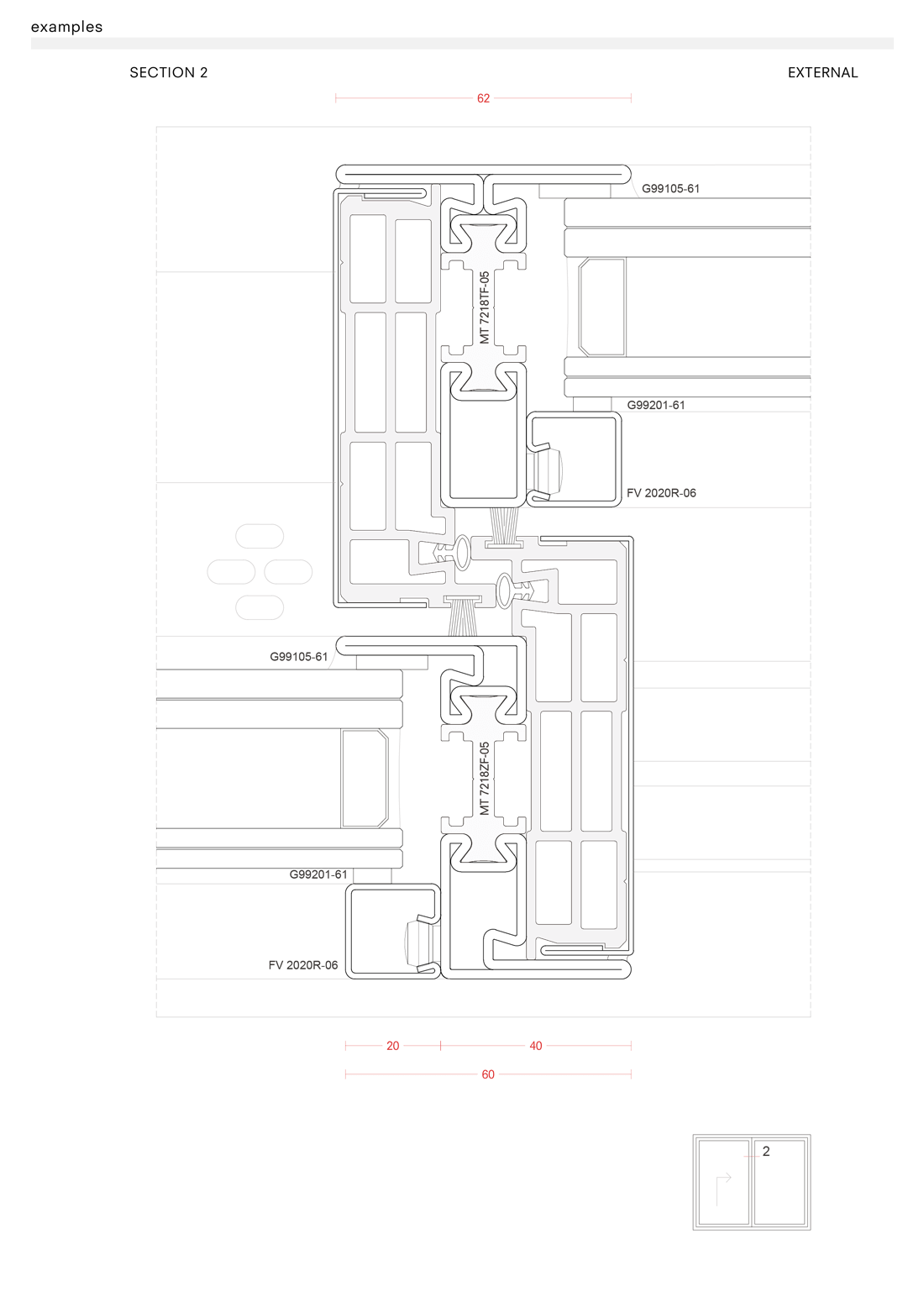

SECTIONS

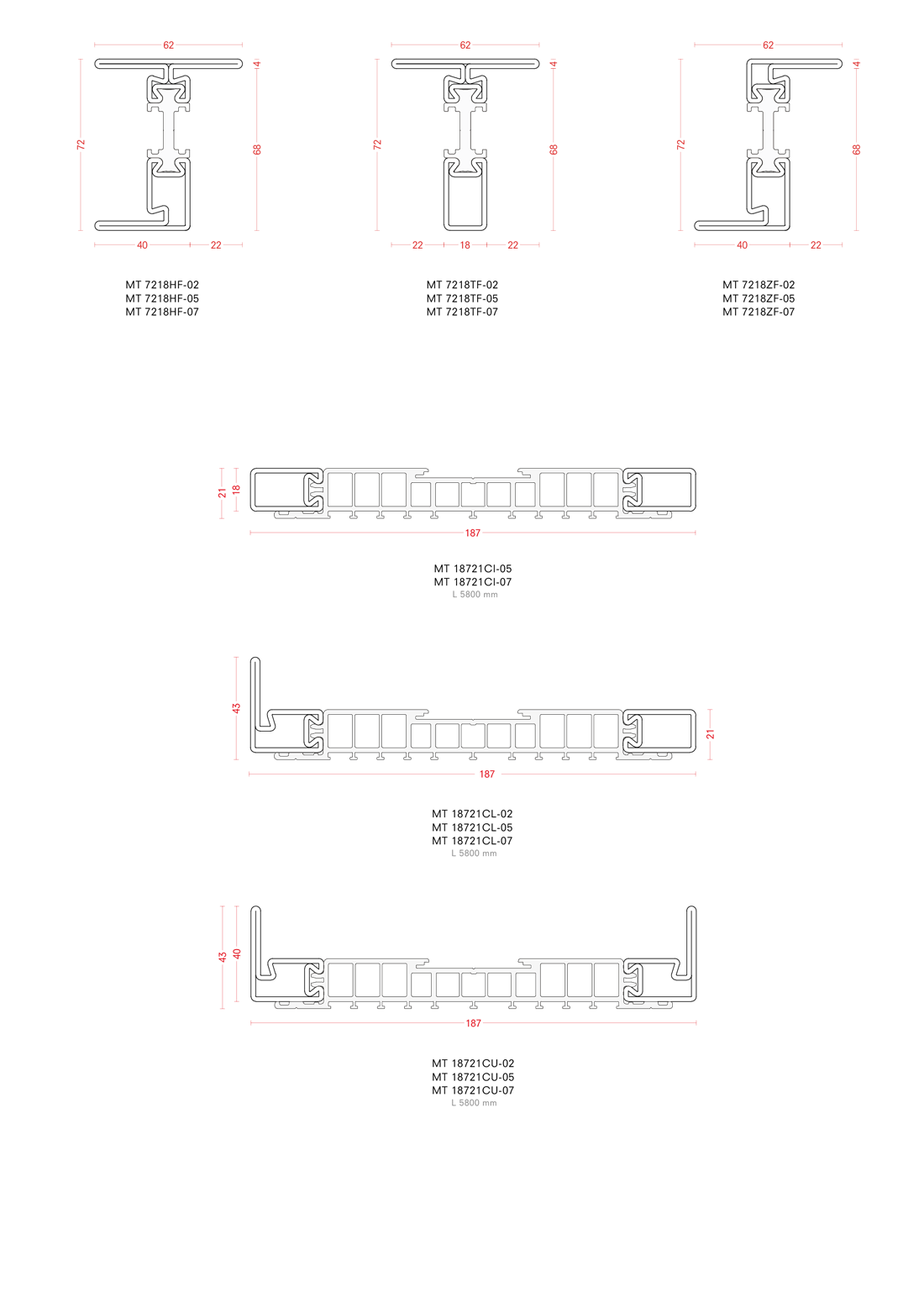

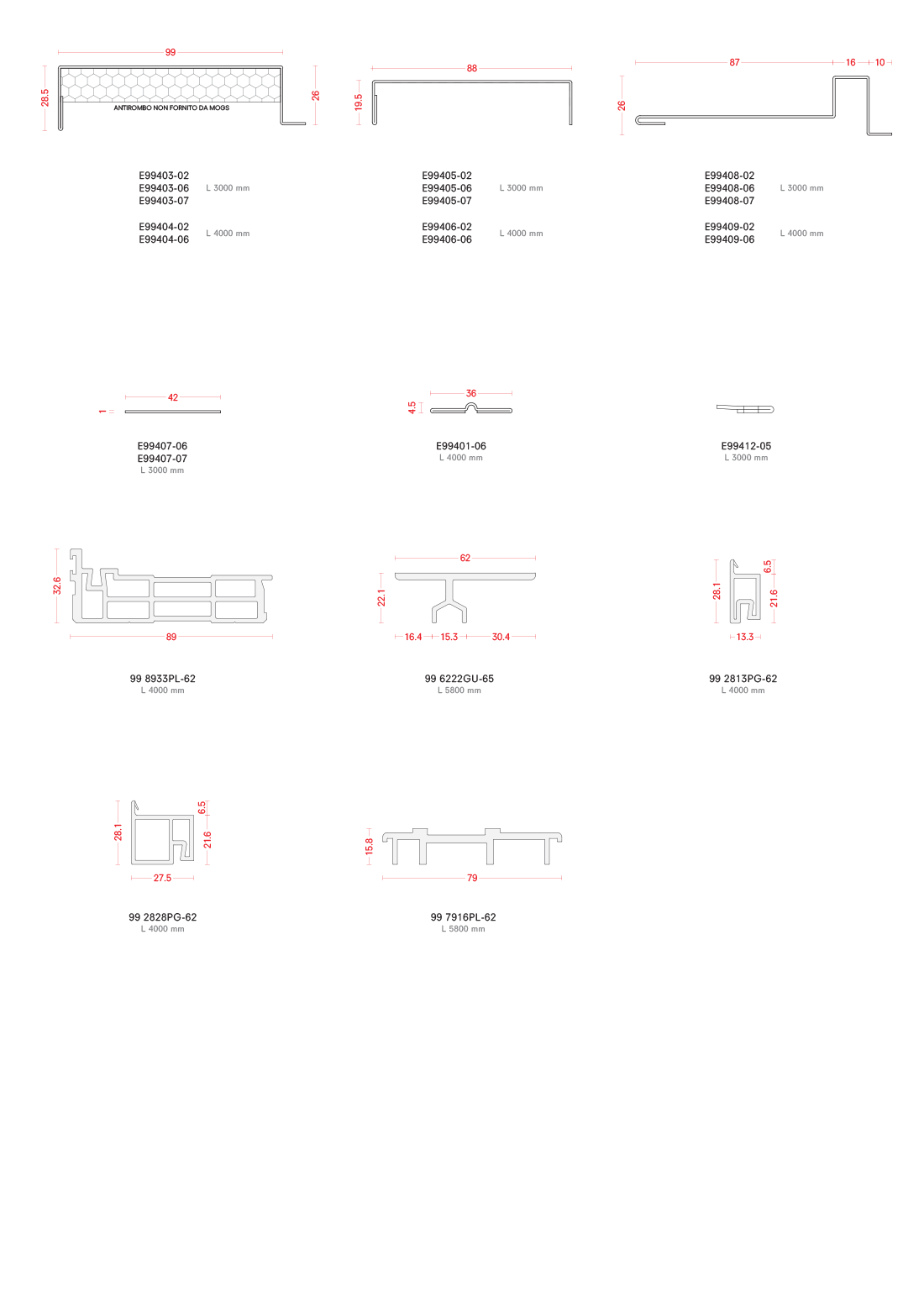

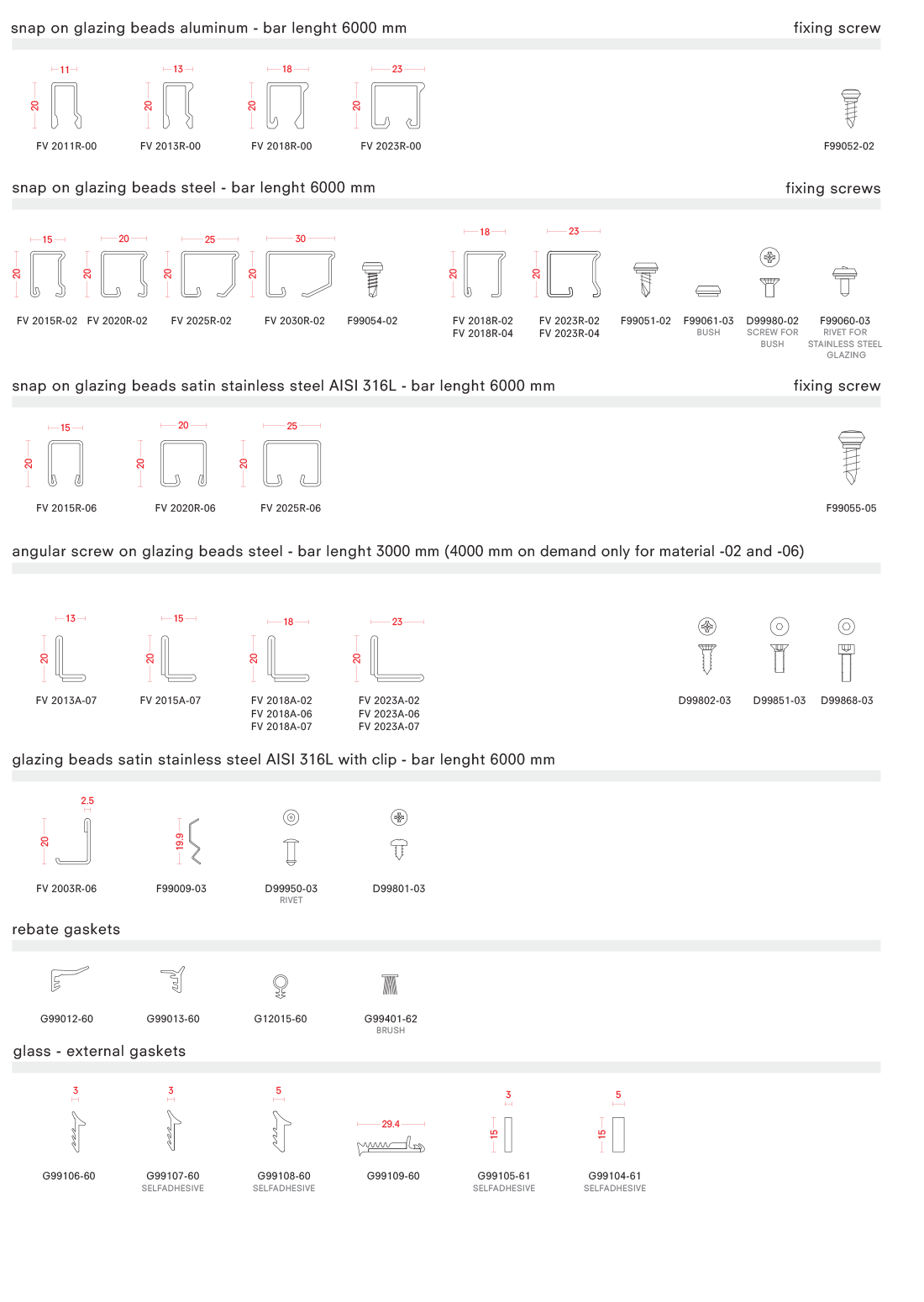

BF40 PROFILE RANGE AND GLAZING BEADS GASKETS & ACCESSORIES
