Solarlux SDL Atrium Plus Shelter
SDL ATRIUM PLUS SHELTER
SDL ATRIUM PLUS SHELTER GLASS CANOPY
Enjoy the fresh air almost 365 days a year

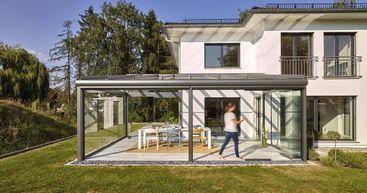

The Solarlux SDL Atrium plus glass canopy will transform your patio into an oasis of peace and relaxation.
With a span of up to 5.72 m and a roof depth of up to 6.37 m, even greater transparency is possible, and even complex custom shapes can be implemented without any problem. A permanent roof ventilation system keeps the climate comfortable at all times.
It also offers an impressively high degree of pre-fabrication and short assembly times. When combined with the SL 20e vertical sliding system, fixed glazing or the tried-and-tested SL 25 slide-and-turn system, the glass canopy can be transformed into a glass house with protection on all sides.
Its wide range of accessories, such as the designer radiant heater, many different types of awning, and energy-efficient, dimmable LED spotlights make the SDL Atrium plus an all-rounder that can cater to any requirements.
FEATURES
THE PERFECT SHELTER
Enjoy The Fresh Air All Year Round
Transform your patio into an oasis of peace and relaxation
SDL ATRIUM PLUS GLASS CANOPY
The All-rounder
The perfect glass canopy for any application: the Atrium plus allows you to create extremely large areas of glass with immense spans – and complex special shapes, too.
WIDE RANGE OF ACCESSORIES
The Right Choice In Every Respect
Choose from a comprehensive range of accessories to complement your system. Convenient and practical: everything is provided directly by Solarlux – the one-stop shop for all your glass house needs.
INFORMATION
BRAND
Solarlux
TYPE
Shelter
DRAINAGE
Concealed
USE
Glass canopies and houses
GLAZING
8, 10 and 12 mm glazing; can be extended to form a glass house using vertical glazing
CHARACTERISTICS
- Ventilation
- Internal lighting
- Customizable shapes
- Prefabricated for easy assembly
- Up to 5.72 m span and 6.37 m roof depth
SPANS
Huge spans possible
ACCESSORIES
-Heating -LED lighting
SURFACE FINISH
-RAL powder coating -Eloxal in accordance with EURAS
VERTICAL ELEMENTS
Recommended vertical elements: SL 20e, SL 22, SL 25, SL 25 XXL, SL 25R, SL 35, SL 45
APPLICATIONS
- Roofs
- Canopies
- Pool Glazing
- Glass Partition
- Terrace Covering
- Exterior Living Space
MATERIAL
Aluminium
VERTICAL GLAZING
Also suitable for permanent installation under a canopy
PROFILE TECHNOLOGY
- Roof pitch: 5 – 45°
- Concealed roof drainage
- Interior or exterior shading available
- Wide range of functional accessories
- Non-insulated aluminium roof system
- Available with or without roof overhang
- Built-in spotlight rail and cable duct as lighting system
- Softline profiles for elegant design and high transparency
- Reduced costs due to quick installation times and high degree of prefabrication
- Available as a monopitch, pitched or custom roof or a stand-alone structure (SDL Atrium Carré)
- High bearing capacity and large spans due to steel reinforcement in rafters, eaves and pillars
THE SOLARLUX WORLD OF COLORS
When you choose a Solarlux aluminium system, you opt for individuality. Solarlux standard colour options, which include around 30 RAL colours, offer all the colours of the rainbow in matt and gloss finishes, at no extra cost. This allows every system to be matched with the building’s interior and exterior design. We use our own in-house coating plant – one of the most modern in Europe – for top surface quality.
-Ral 1015 -Ral 3011 -Ral 5003 -Ral 5008 -Ral 5014 -Ral 6005 -Ral 6009 -Ral 7004 -Ral 7006 -Ral 7015 -Ral 7016 -Ral 7021 -Ral 7024 -Ral 7035 -Ral 7038 -Ral 7039 -Ral 7040 -Ral 8017 -Ral 8019 -Ral 8022 -Ral 8077 -Ral 9001 -Ral 9003 -Ral 9004 -Ral 9005 -Ral 9006 -Ral 9007 -Ral 9010 -Ral 9011 -Ral 9016
