Danpal® Louvre Translucent Polycarbonate Shading System
LOUVRE TRANSLUCENT SHADING SYSTEM
LOUVRE TRANSLUCENT POLYCARBONATE SHADING SYSTEM
Danpal introduces new dynamic shade-shift technology, a revolutionary concept, completely unique in its approach to external fixed louvre systems.
Create High-Quality Environment interior spaces, by choosing a DanpaShade louvre system, each constructed from our featherweight UV protected Danpalon polycarbonate material.
Our latest Aura Louvre System, allows you to colour with shade, and ensure a comfortable interior space year-round, increasing your building’s energy efficiency.All this while allowing you to express your unique style, reflected by your choice of unique 2 in 1 color options, another first provided by DanpaShade Aura.
FEATURES
SIMPLE AND LOW COST INSTALLATION
The system contains snap on interlocking dry-glazed connectors made of aluminium – providing simple and low cost installation.
HIGH RESISTANCE
The system provides a double tooth grip-lock connection that ensures extended longevity even when subject to high wind loads.
ABILITY TO PLAY WITH LIGHT AND SHADE
Users can adjust the louvres to create their desired balance of light and shade, achieving the right atmosphere.
WIDE VARIETY OF COLORS AND FINISHES
The Danpal® Louvre translucent shading system can be installed on various types of building envelopes in a variety of color combinations. Customers can select light transmission levels, with either a glossy or matt surface finish.
MICROCELL TECHNOLOGY
Made with Microcell technology, the latest and most advanced system for architectural shading applications, Danpal® Louvre Systems offer high impact resistance. Specifically designed for architectural daylight applications, the tight spacing between the ribs produces a superior quality of light and an aesthetically appealing presence.
EXTENDED UV PROTECTION
Danpal® panels offer co-extruded UV protection – resulting in longer system life.
ALL-WEATHER DESIGN
Suitable in all weather conditions and compliant with all building code requirements.
INFORMATION
CHARACTERISTICS
- Translucent shading system
- Maximum control over light and Heat
- UV protection
- High impact resistance.
PROPERTIES
UV Protection
FORMAT
- Panels
- Modular
APPLICATIONS
- Residential
- Commercial
- Hotels
- Restaurant
- Offices
- Educational.
DIMENSIONS
- Width : 300 mm
- Length : 6 meter
- Weight : 1000 gm, 3000 gm2
UNIQUE SYSTEM BENEFITS
- Colour-Shift technology
- Z-Frame construction

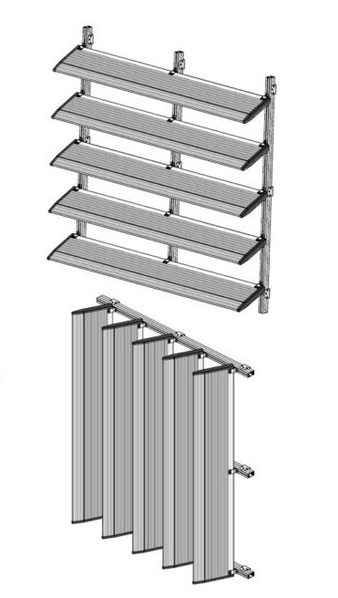

- Horizontal or vertical install
- Featherweight design
- Shade-shift properties
- Dual-colour integration
PRODUCTION
Made in Australia
PITCH OPTIONS
22.5', 45', 90'
THICKNESS
30 mm
MATERIAL
Plastic
FINISHES
- Glazing Material
- Finishing
TECHNICAL FEATURES
| MODULE | 616, 3D LITE, KINETIC | STANDARD |
|---|---|---|
| Reaction to fire | B-s1,do | Norm NF EN 13501-1 2002 PV. LNE MO7I009 - DE/S: DE/9 |
| Acoustic | As por panel characteristics | CSTB:ACOB-26018441/1 ot ACOB-2618441/2. |
| Light Transmission | As per panel characteristics | norm ASHRAE- 74-1988 |
| 10 Year Warranty | Yes | - |
| Impact and shock resistance | Pass | PV CSTB GM 89/10, PV CSTB GM 94/2 |
| Finishes of panel | - | Low E, softite, HP |
PROPERTIES
| MODULE | RESULT |
|---|---|
| Reaction to Fire | B-sido |
| Wind load resistance: for 2m span | 120 kirv/h |
| Distance between brackets. | 2000 mm |
| Distance between louvers, | 330mm" |
| Distance from louver bracket and end of louver | 50-100 mm* |
DETAIL
SECTIONAL DRAWING
- Danpashade Aura
- Danpashade Umbra
SYSTEM STRUCTURE
DANPA SHADE AURA
-Colour-Shift Technology -Z-Frame construction -Horizontal or vertical install -Featherweight design -100% UV protected -Shade-shift properties -Dual-colour integration -Proprietory aluminium sub-structure -Complete design & install solution
DANPASHADE UMBRA
-Lightweight -Wide range of colours and finishes -Quick & cost effective installation -Recyclable materials -Fully adjustable and compatible -With building automation systems
