FritsJurgens Self-Closing Pivot Door Hinge - System M
SELF-CLOSING PIVOT DOOR
- SYSTEM M
SELF-CLOSING PIVOT DOOR HINGE - SYSTEM M
System M is a self-closing pivot system and offers adjustable soft-close and hydraulic backcheck.
INFORMATION
CHARACTERISTICS
-Self-closing -Three hold positions -Closing damping -Hydraulic backcheck -Loadbearing up to 500 kg -Easy installation, -No maintenance
USE
- Interior
- Exterior pivot door hinges
APPLICATIONS
- Commercial
- Residential
PRODUCTION
Made in Netherlands
FINISHES
- Stainless steel
- Black
DIMENSIONS
- 294,8 x 32 x 99,6 mm
- Weight : 2,6 KG
MATERIAL
- Stainless Steel
- Anodized Aluminum
DOOR SPECIFICATIONS
- Door acting : Single & double-acting
- Weight capacity : 20 - 210 kg
- Min. door thickness : 40 mm
- Door width : 400 - 4400 mm
- Top gap : 4-10 mm
- Bottom gap : 11 mm
- Hold positioning : 90° , -90° and 0°
- Guarantee : 2 years
TYPES
4 types, weight class AA - C
CORROSION RESISTANCE
EN 1670 - class 5 (norm: 0-5)
SYSTEM M FOR MAXIMUM CLEAR WIDTHS
Thanks to the fixed pivot point at 40 mm, this top pivot makes the most of any space. The top pivot is as close as possible to the side of the door. All available space is used, and the clear opening is as large as possible. In the open position, the pivot door is therefore minimally present. This is ideal for situations where a standard door width must be maintained. This top pivot is ADA compliant. -Pivot point: fixed at 40 mm -Top pivot: 40 mm -Finishes: Stainless steel and Black
SYSTEM M FOR ALL PIVOT DOORS
This top pivot is a real all-rounder. The ability to position the system 70 mm from the door’s side reduces unused space while retaining the beautiful, distinctive pivot door movement. This top pivot can be placed in any position between 70 mm and the center of the door and is suitable for all FritsJurgens’ pivot systems. -Pivot point : Flexible from 70 mm -Top pivot : 70mm, Reversed and Cable Grommet
Adjustability
CONTROLLED DOOR MOVEMENT
Thanks to Damper Control, System M has adjustable soft-close and hydraulic backcheck to guarantee fluid door movement.
SELF-CLOSING AND HOLD POSITIONS
System M is self-closing and has hold positions at every 90° angle. This way, you determine the door’s spatial impact.
SINGLE- AND DOUBLE ACTING DOORS
System M is suitable for almost every type of pivot door. Single- and double-acting, interior and exterior, with and without door frames.
COMPONENTS
CEILING PLATES
The ceiling plate is fitted in the ceiling, where the pin of the top pivot seamlessly fits into the hole in the ceiling plate. The ceiling plate is available in two finishes: brushed stainless steel and black.
TOP PIVOT
The top pivot is mounted into the top of the door. It uses a so-called pinhole connection, in which the pin is fixed to the top pivot and goes into the hole in the ceiling plate when the door is placed. FritsJurgens offers two types of top pivots: Top pivot Regular and Top pivot Cable Grommet. Top pivot Cable Grommet is designed to enable easy wiring through the door for lighting or electronic security.
BOTTOM PIVOT

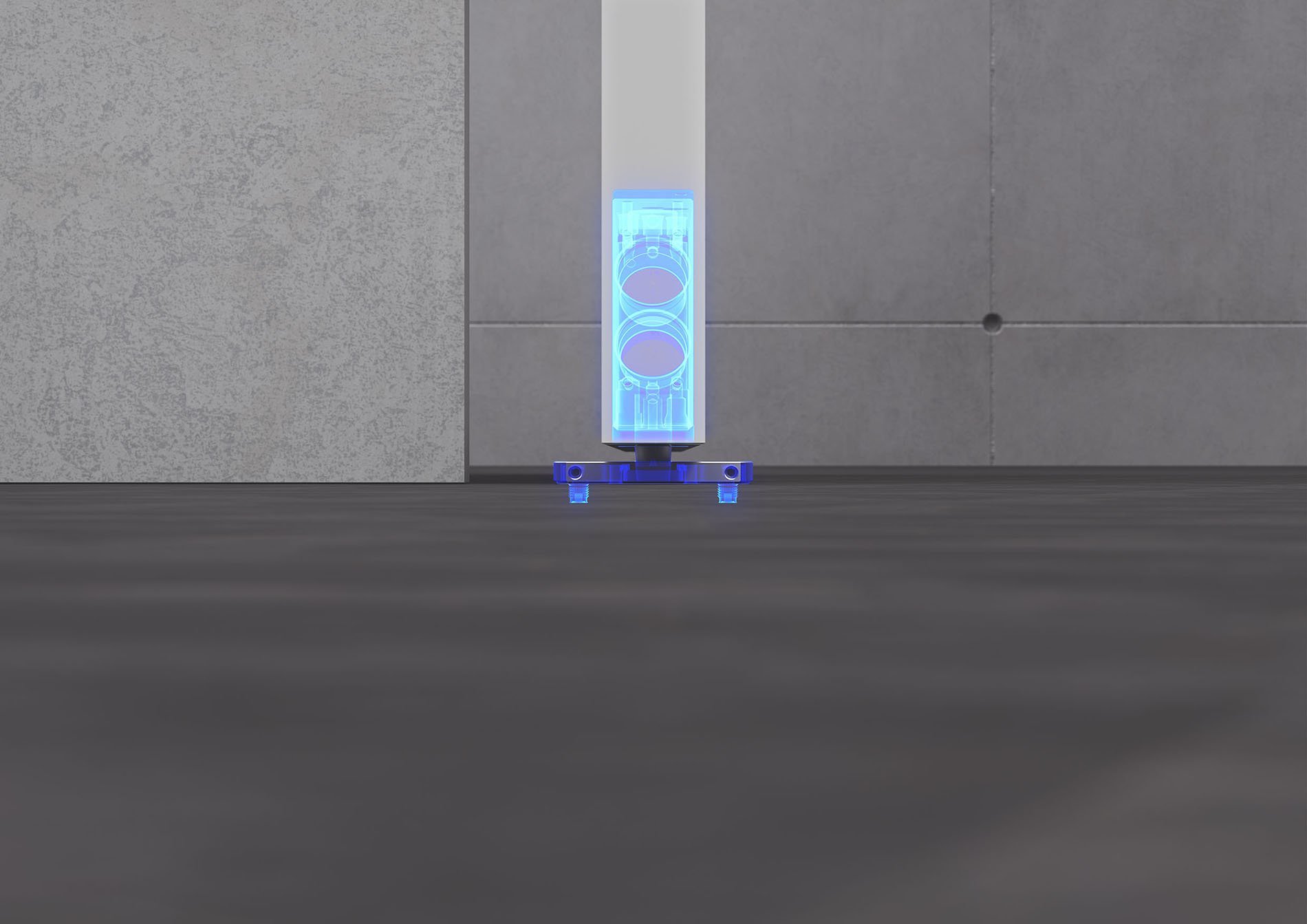

The bottom pivot is the pivot mechanism and driver of the pivot door and is fitted in the bottom side of the door. The pivot mechanism therefore is virtually invisible. FritsJurgens bottom pivots have a load bearing capacity for pivot doors up to 500 Kg.
The bottom pivot offers several features, depending on the choice of bottom pivot, such as: hold positions, damper control, latch control, 30° speed control, free swing. The bottom pivots placement determines the the spatial impact that the pivot door will have on its surroundings. Besides a more regular side placement to create pivot doors, FritsJurgens pivot hinges are also suitable for 360 degree rotating panels or walls.
FLOOR PLATES
Every FritsJurgens floor plate is mounted 8 mm in the floor. This is sufficient for almost every floor type and makes it possible to combine FritsJurgens’ hinges with floor heating. Two longer, shortenable floor plate pins of 30 mm are included with the square floor plate designs.
There are various floor plates available for System M. The standard floor plate is available in four designs: brushed stainless steel (Series 420) and PVD black in a round and a square version. Also available is floor plate Flush, which can be integrated into thresholds and into interior floors. The floor plates by FritsJurgens are made of solid tempered steel and therefore fully scratch resistant.
