Hunter Douglas Architectural Open Metal Ceiling – V100 V200
open METAL CEILING – V100 V200
OPEN METAL CEILING V100 / V200

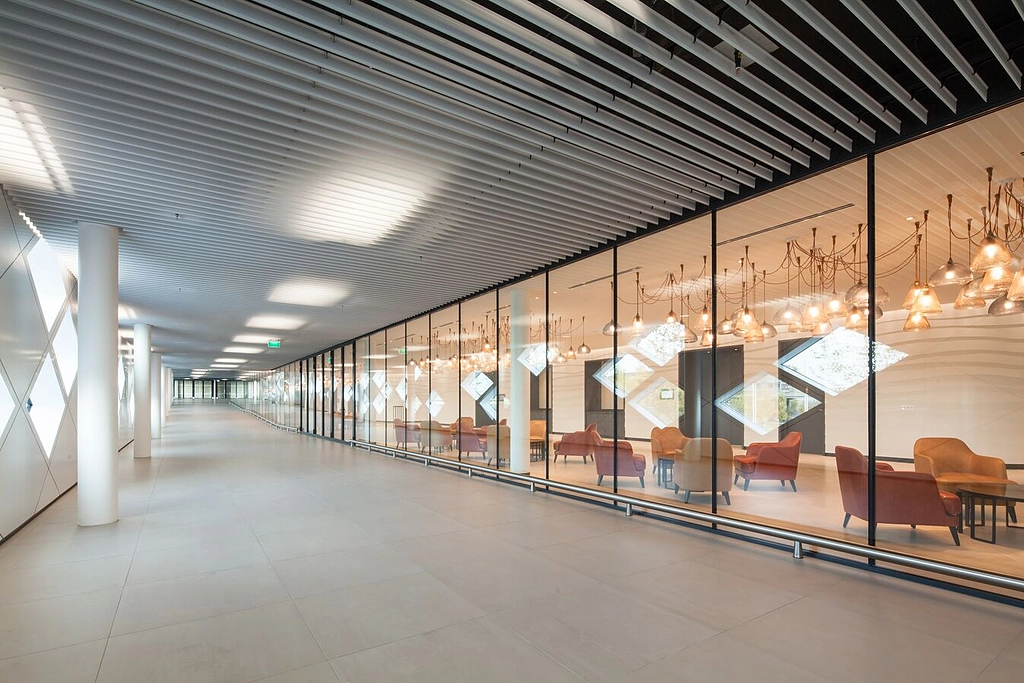

Luxalon® V100/V200 screen ceilings are engineered to dimensionally define the ceiling plane. Consisting of vertically hung, ‘floating’ panels, V100/V200 create unique visual patterns and lines without compromising the sense of a spacious environment.
This unique look can be further enhanced, by incorporating V100/V200 Deco to the screens. The Luxalon® V100/V200 open ceiling mask the plenum while allowing easy access as well as efficient performance of air conditioning, lighting, and sprinkler systems.
WHY V100/V200?
The Luxalon® Screen Ceiling is ideal for applications where the design criteria is to visually reduce the room height while retaining original room volume. The Luxalon® screen ceiling excels at diffusing daylight or artificial light entering from above. At a minimum angle of approximately 45 degrees, the ceiling has a closed appearance.
INFORMATION
MATERIAL CHARACTERISTICS
The V100/V200 open ceiling system consists of vertical hung panels with a height of 101mm (V100) or 200mm (V200) that can be easily clipped onto a carrier. The panels are installed in standard modules of 100 mm, 150mm or 200mm. Other modules are available on request.
APPLICATION
The V100/ V200 screen ceiling is suitable for those building sectors where a light weight and open ceiling is required. These include corporate, transport (airports, metro, bus & train stations), retail, leisure, public space and hospitality environments.
BRAND
Hunter Douglas Architectural
USE
Interior ceilings
SIZES
Up to 6000 mm
DESIGN AND INSPIRATION
Luxalon® V100/ V200 screen ceilings enable architects to design an open ceiling with high-performance aluminium. With a variety of panel heights, modules and systems these ceilings offer maximum freedom in design. Screen Ceilings create a spacious appearance ideal for interior designs where open, light constructions are desired. Systems are available as fixed carrier or sliding screen. 2 different profile types and carriers in different modules are available as standard or special.
CHARACTERISTICS
-Vertically installed panels in 100, 150 or 200mm module -The panels come in either 101 mm high (V100) or 200 mm high (V200) and clip easily to the carrier. -Fixing clips fitted on the carriers between the panels provide a secure locking of the panels and make the system suitable for exterior applications (only V100) -Panels can be supplied in any length up to 6000 mm (as standard) -If required, panels and fixing clips are easily demountable by hand, which allows full access to services and equipment in plenum
COLOURS & FINISHES
RANGE OF STANDARD COLOURS
The Hunter Douglas range of Metal Ceilings, are available in a range of standard colours that are suitable for most applications. For further information on ceiling types and the special finishes and colour ranges that are available for specific projects please contact our sales office.
WOOD TONES
NATURE TONES
WARM WHITES
