CUSTOM CPX TB INTERNAL PARTITIONS
CUSTOM CPX TB INTERNAL PARTITIONS
Steel | Stainless Steel
The code CPX stands for the possibility to design your own custom profiles with or without thermal barrier in steel and stainless steel. Such tailor made profiles give architects and specialized window fabricators the possibility to stand out of the crowd and to follow their own ideas on window design.
INFORMATION
BRAND
Ottostumm
PRODUCT TYPE
Internal Partitions
COLLECTION
Custom
PRODUCTION
Made in Italy
GLAZING
Accommodates double and triple glazing
APPLICATIONS
19th/20th-century renovation, Residential, commercial, Institutional
BARRIER
Thermal barrier in fiberglass-reinforced polyamide or solid steel
MATERIAL
Stainless Steel
USE
Interior partitions
THICKNESS
Thickness, width as well as the contour of the outer flanges can be defined freely. The web consists of highly insulating fiberglass-reinforced polyamide combined with a mechanically fixed steel adapter (CPX TB). If there is no requirement for a thermal barrier, steel can be used instead of polyamide (CPX). Sophisticated laser lines connect the outer flanges to the web. Customized CPX and CPX TB profiles open up an infinite number of solutions.
SHAPE
Steel or stainless steel flanges with sharp corners
DESIGN
Customized design & Self-adhesive non-shrinking gaskets
CHARACTERISTICS
- Choice of type and finish
- High stability profiles
- Can span large areas
- Natural surface finishes
OTHER INFORMATION
Fixed glazing, single-sash and double-sash, side-hung and bottom-hung - windows opening inwards and outwards, top-hung, vertical and - horizontal pivoting windows, window and doors opening inwards and outwards
CERTIFICATION
Recognized by Green Guide
HINGES
Compatibility with friction hinges
SECTIONS
CPX TB PROFILE RANGE

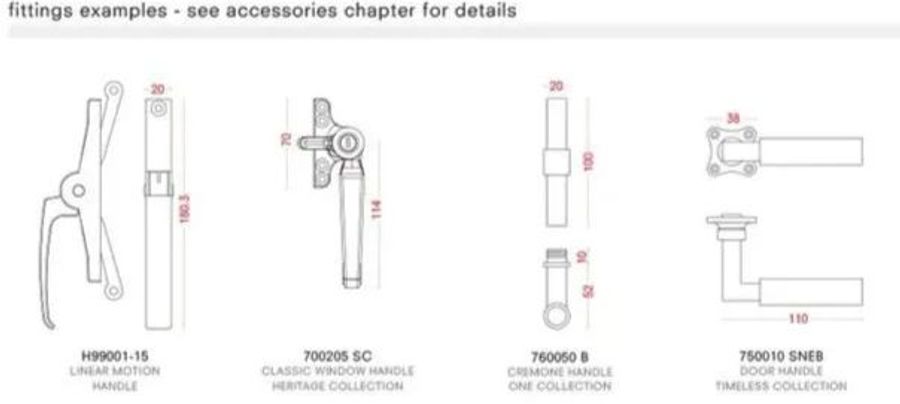

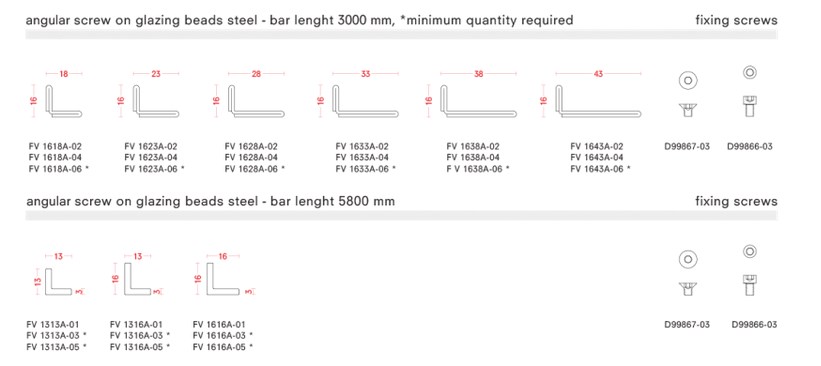

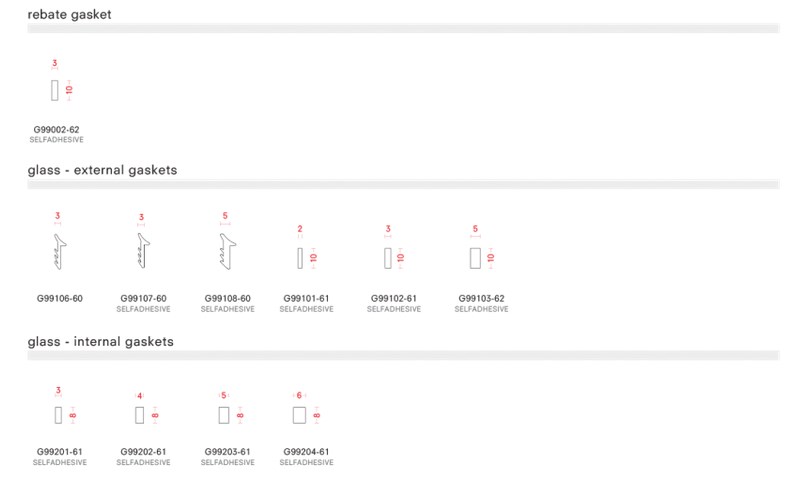

GLAZING BEADS GASKETS AND ACCESSORIES

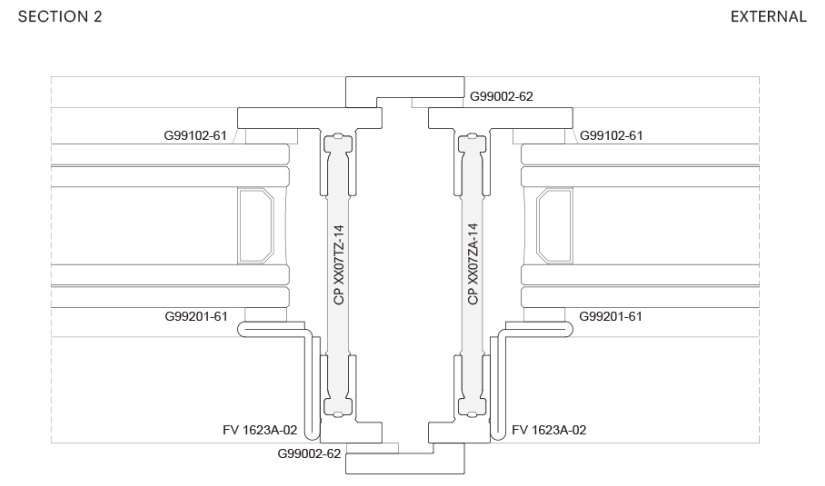

CPX TB SECTIONS
