Fakro Balcony Roof Window
BALCONY ROOF WINDOW
BALCONY ROOF WINDOW

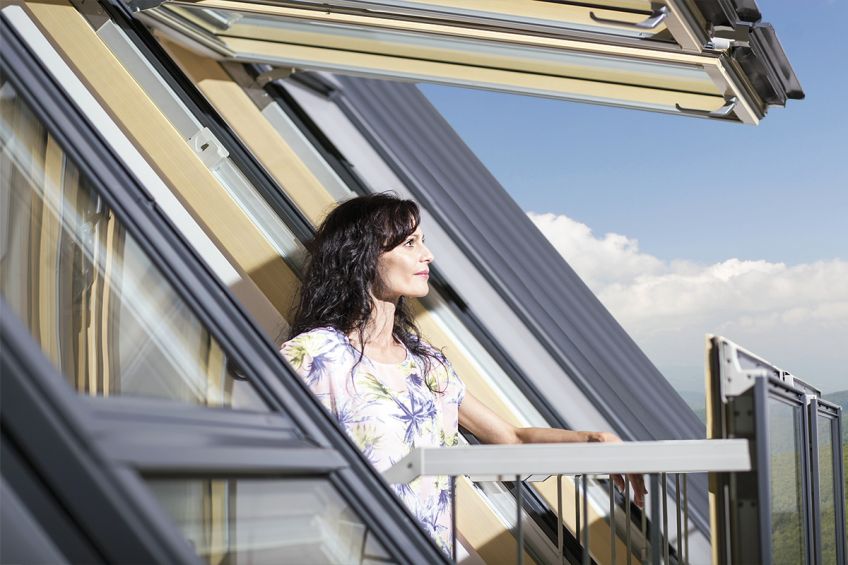

Innovative, large roof window in which the open sashes create a balcony. The upper sash is opened upwards, the lower forward allowing easy access to the balcony bay.
The sash when opened in position form 0 °to 45 ° is supported by innovative supporting mechanism enabling to leave the sash open in any position within this range.
INFORMATION
BRAND
Fakro
PRODUCTION
Made in Poland
PROPERTIES
Energy Efficiency
WOOD
Pine Wood
APPLICATIONS
- Loft
- Interior Design
- Residential Roofs
CHARACTERISTICS
Richly equipped double sash window, axis of rotation is situated above the centre of the window, handle equipped with a two-step micro opening mechanism, suitable for roof pitches between 25° and 65°
INERT GAS FILLED PANES
Argon
GLAZING U-VALUE
1.1 W/m²K
ACOUSTIC INSULATION RW
35 DB
SAFETY GLAZING UNIT
P2
WINDOW U-VALUE
1.5 W/m²K
GLAZING UNIT
4HS-14-33.2T
GUARANTEE
- Lifetime against hail
- 10 years for windows
SIZES
78x140 (78x50) cm, 78x160 (78x50) cm, 78x160 (78x78) cm, 78x160 (78x98) cm, 94x140 (94x50) cm, 94x160 (94x50) cm, 94x160 (94x78) cm, 94x160 (94x98) cm
AIR INLET TYPE
V40P
SEALS
Four
HANDLE
Elegant
INSTALLATION RANGE
35 – 55°
USE
Roof windows
CERTIFICATION
Certificate TÜV SÜD
SAFETY
Side safety barriers are integrated into the bottom sash and slide out during opening. When closing the lower sash, balcony rails are hidden inside the window and are not visible above the roof surface. Concealed under the window flashing elements they do not collect dirt or spoil aesthetics of the roof. Once the balcony window is open, barriers are always dry and clean to secure trouble-free operation.
INTERNAL GLASS LAMINATED
+
ANT I BURGLARY GLASS P2A
+
EXTERNAL GLASS TOUGHENED
+
DETAILS
- The window is operated by the handle located at the bottom of the upper sash. Handle has a two-point locking mechanism.
- The sash when rotated through 180 degrees is locked by the bolt for cleaning.
- Automatic air inlet V40P.
- Both the upper and lower sashes are equipped with safety glazing unit P2.
- The highest quality pine wood, glued in layers, vacuum impregnated.
- Double coated wood with ecological acrylic lacquer in natural colour.
- Increased resistance to burglary - TopSafe system.
- A wide range of accessories.
- Installation range from 35 to 55 degrees.
