DOMESTIC CABIN LIFT
DOMESTIC CABIN LIFT
Designed to be affordable, reliable and easy to install, the C1 Pure domestic cabin lift is a great way to add comfort and value to your home.
- Timeless Scandinavian style
- Highly customizable design
- Quick and easy installation
FEATURES
DESIGN
- Bespoke Design : The great choice of colours and materials enables you to create your unique lift design.
- Ready-made Shaft : The ready-made shaft in glass or steel reduces your construction costs.
- Reduced Top Height : The 2500 mm top height fits easily under most ceilings.
- Reduced Lift Pit : At the bottom floor, a shallow pit of 100 mm is enough.
A UNIQUE LIFT FOR YOUR HOME
What if you could get an attractive looking home lift, without having to live on a building site for weeks on end? The C1 domestic cabin lift only takes a few days to install and is the world’s only screw-driven cabin lift that offers you premium comfort.
CIBES C1 PURE (300/375/450/525/630 KG)
- All-inclusive lift concept : The lift is delivered in ready-made modules with everything you need for installation.
- Runs on 3 Phase household electricity : No need to change the wiring of your house, your domestic lift runs on normal household electricity.
- Space-saving construction : Unlike most lifts, C1 Pure has no machinery above or beneath the lift, everything fits inside the shaft. This makes C1 Pure very easy to install.
- Fast & easy installation : Our ready-made lift concept can be installed in just a few days and requires much less building work than a conventional lift.
CIBES C1 PURE
C1 Pure is designed to make your everyday life easier. Update your living and let C1 Pure take you to the magic moments of your day.
KEY FEATURE
INFORMATION
CE MARKED
Our lifts are certified by the notified body Liftinstituut B.V. and carry the CE mark.
SWEDISH QUALITY EST 1947
Cibes Lift was founded in 1947. Our lifts are engineered and manufactured in Sweden.
SAFE AND EASY TO USE
Our lifts meet the requirements of European safety standards and are safe and easy to use.
SITE-BUILT SHAFT
C1 Pure can be designed to be fitted inside a site-built or existing lift shaft for seamless integration with your interior design.

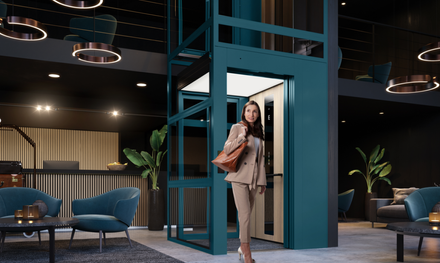

READY-MADE SHAFT
C1 Pure is available with an elegant, modular lift shaft of steel or glass to reduce installation time and construction costs.
ALL IN GLASS
Glass adds a touch of ethereal elegance and brings natural light into the room. The lift shaft, cabin and doors of C1 Pure are available in glass.
DESIGN FREEDOM
The control panel, cabin profiles and ceiling of Cibes C1 Pure are available in any RAL or premium colour, so that you can create a truly bespoke colour scheme.
PLAIN COLOUR
The horizontal control panel in stainless steel is available as a single unit for the machinery side (side D), or as a double unit (side D and B). -On the D side, the control panel is delivered with 2 sturdy handrails in black, anodised aluminium. -The additional control panel on the B side is delivered without handrails. -The service panel is always delivered in stainless steel to match the horizontal control panel.

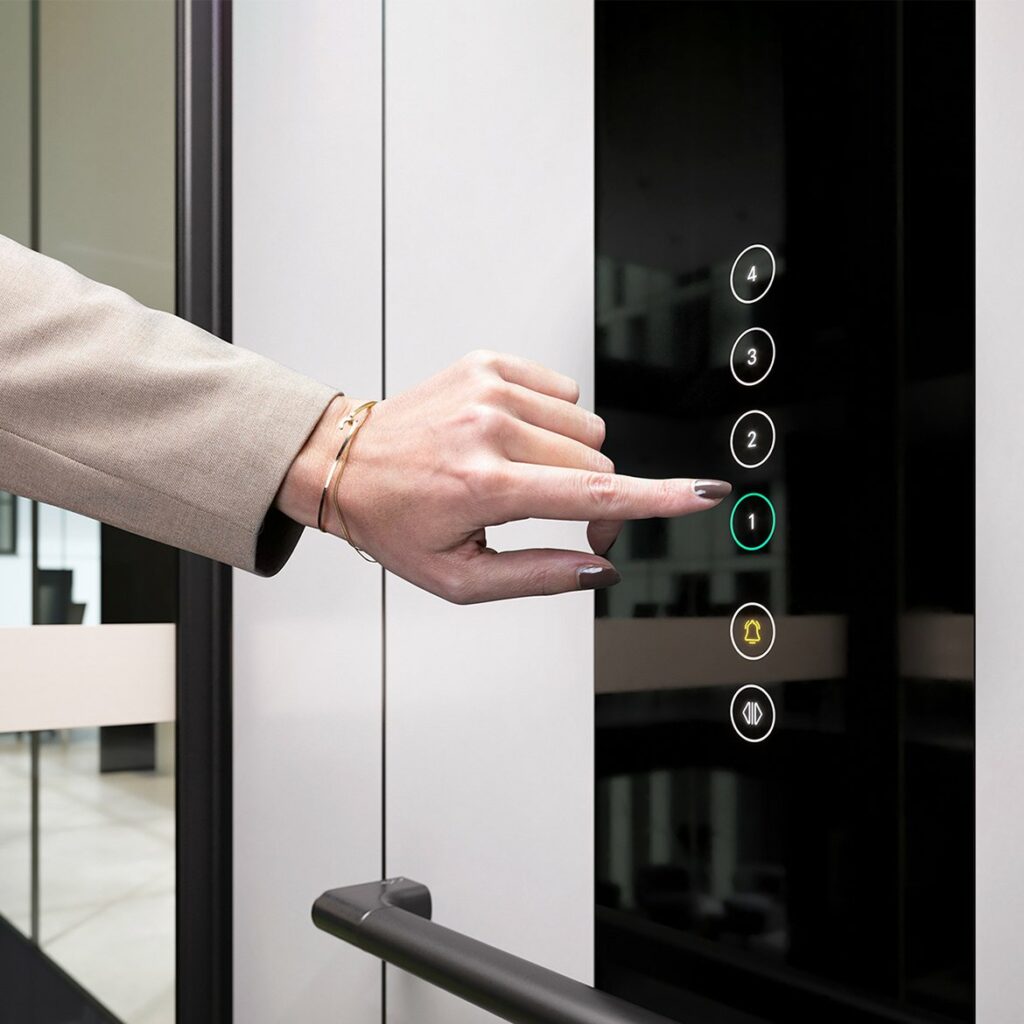

LIFT CONTROLS
-Horizontal control panel in stainless steel with 50×50 mm tactile push buttons equipped with back light and Braille, compliant with EN 81-70. -User-friendly 50×50 mm tactile call buttons with back light, compliant with EN 81-70. Available with face plate in any RAL or premium colour as an option.
DISCOVER OUR MIRRORS
Wall mounted mirrors are a great visual aid for entering and exiting the lift, especially for wheelchair users. We offer you several wall mounted mirror options :
- Mirror for side A or C, facing the door.
- Mirror for side B, facing the machinery side.
FINISHES
C1 PURE WITH READY-MADE SHAFT
| Cabin Size – W X D | Floor Cut Out – W X D Doors – Single Entry | Floor Cut Out – W X D Doors – Open-through |
|---|---|---|
| 900 x 950 mm | 1410 x 1310 mm | 1410 x 1450 mm |
| 900 x1200 mm | 1410 x 1560 mm | 1410 x 1700 mm |
| 900 x 1400 mm | 1410 x 1740 mm | 1410 x 1900 mm |
| 1100 x 1200 mm | 1610 x 1560 mm | 1610 x 1700 mm |
| 1100 x 1400 mm | 1610 x 1740 mm | 1610 x 1900 mm |
| 1100 x 1700 mm | Not available | Not available |
C1 PURE FOR SITE-BUILT SHAFT
| Cabin Size – W X D | Floor Cut Out – W X D Doors – Single Entry | Floor Cut Out – W X D Doors – Open-through |
|---|---|---|
| 900 x 950 mm | 1350 x 1240 mm | 1350 x 1410 mm |
| 900 x1200 mm | 1350 x 1490 mm | 1350 x 1660 mm |
| 900 x 1400 mm | 1350 x 1690 mm | 1350 x 1860 mm |
| 1100 x 1200 mm | 1550 x 1490 mm | 1550 x 1660 mm |
| 1100 x 1400 mm | 1550 x 1690 mm | 1550 x 1860 mm |
| 1100 x 1700 mm | 1550 x 1990 mm | 1550 x 2160 mm |
