Fryreglet Column Cover Systems
COLUMN COVER SYSTEMS
COLUMN COVER SYSTEMS
Our metal Column Cover Systems are custom-fabricated, durable enclosures.
We offer highly configurable options in a variety of materials, patterns, and finishes for interior and exterior applications.
They can be fabricated and installed to integrate with a wide array of technology, way-finding, or safety devices.
INFORMATION
BRAND
Fryregle
PRODUCT TYPE
Ceilings
ECONOMICAL (E)
Our E Column Cover attachments are available with or without vertical and horizontal reveals and are the most cost-effective Column Cover attachment. The assembly is designed for a permanent installation where access behind the column skin is not required. They are available with or without horizontal reveals and designed for diameters of 16" or greater.
APPLICATIONS
Our Column Covers allow architects and designers to cosmetically wrap standard structural elements to suit any type of space. They have been installed in transit and aviation, convention centers, sports stadiums, education, and corporate facilities.
FIELD FINISHED (FF)
Our FF Column Cover attachments offer a monolithic joint and are available with or without factory supplied studs. All joints are seamlessly taped, finished, sanded, and primed for field painting. This assembly is designed for a permanent installation where access behind the column skin is not required.

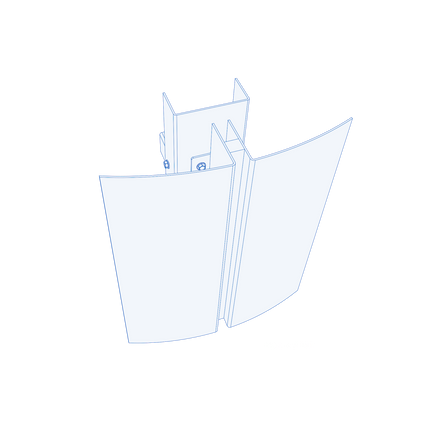

KEY SLOT (KS)
Our KS Column Cover attachments have a vertical butt-joint and are supplied with custom posts designed to allow for removal of the column skin. They are available with or without horizontal reveals and designed for diameters of 8" or greater.
KEY SLOT REVEAL (KSR)
Our KSR Column Cover attachments have all the benefits of the KS Series but include a vertical reveal joint between the colum skins. They are available with or without horizontal reveals and designed for diameters of 8" or greater.

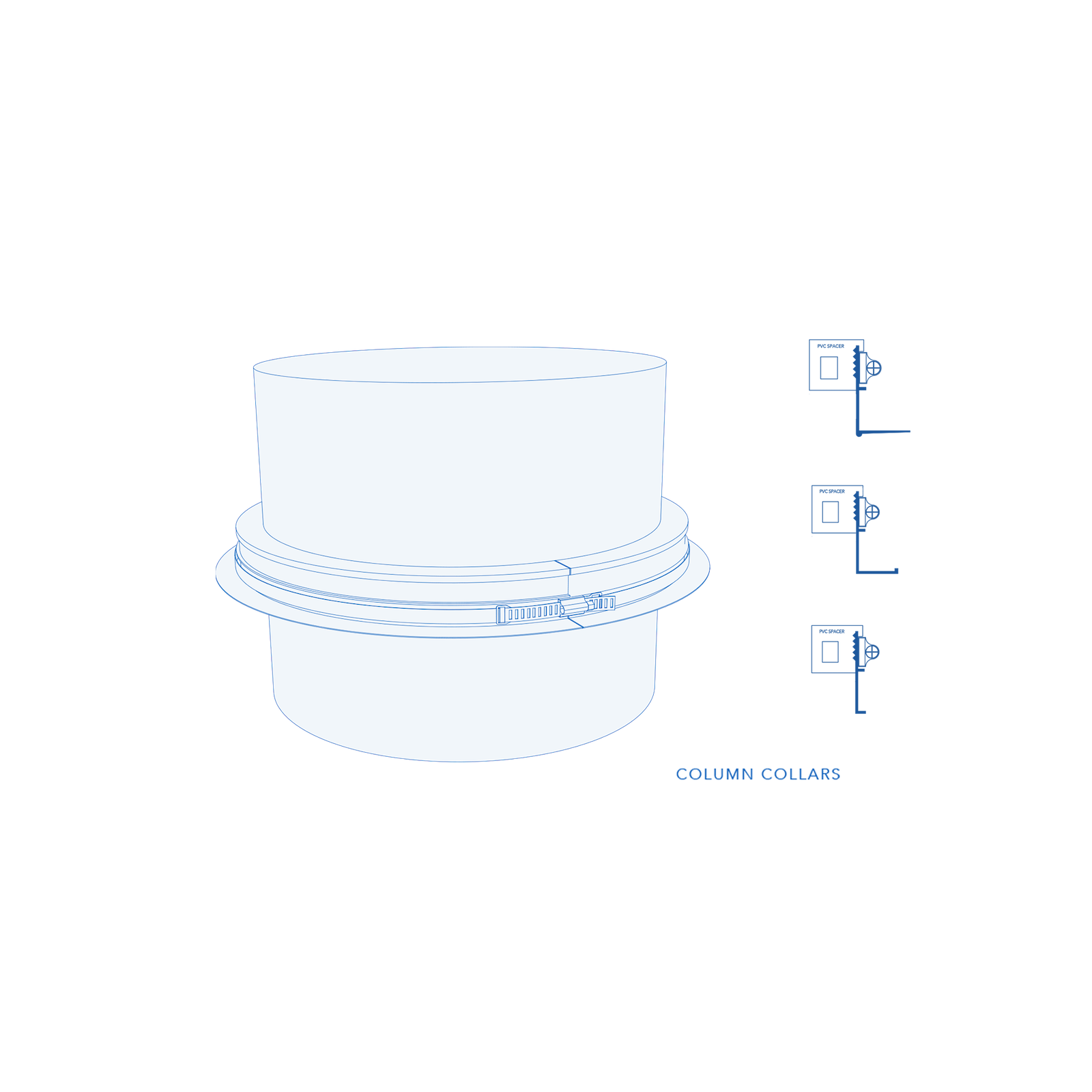

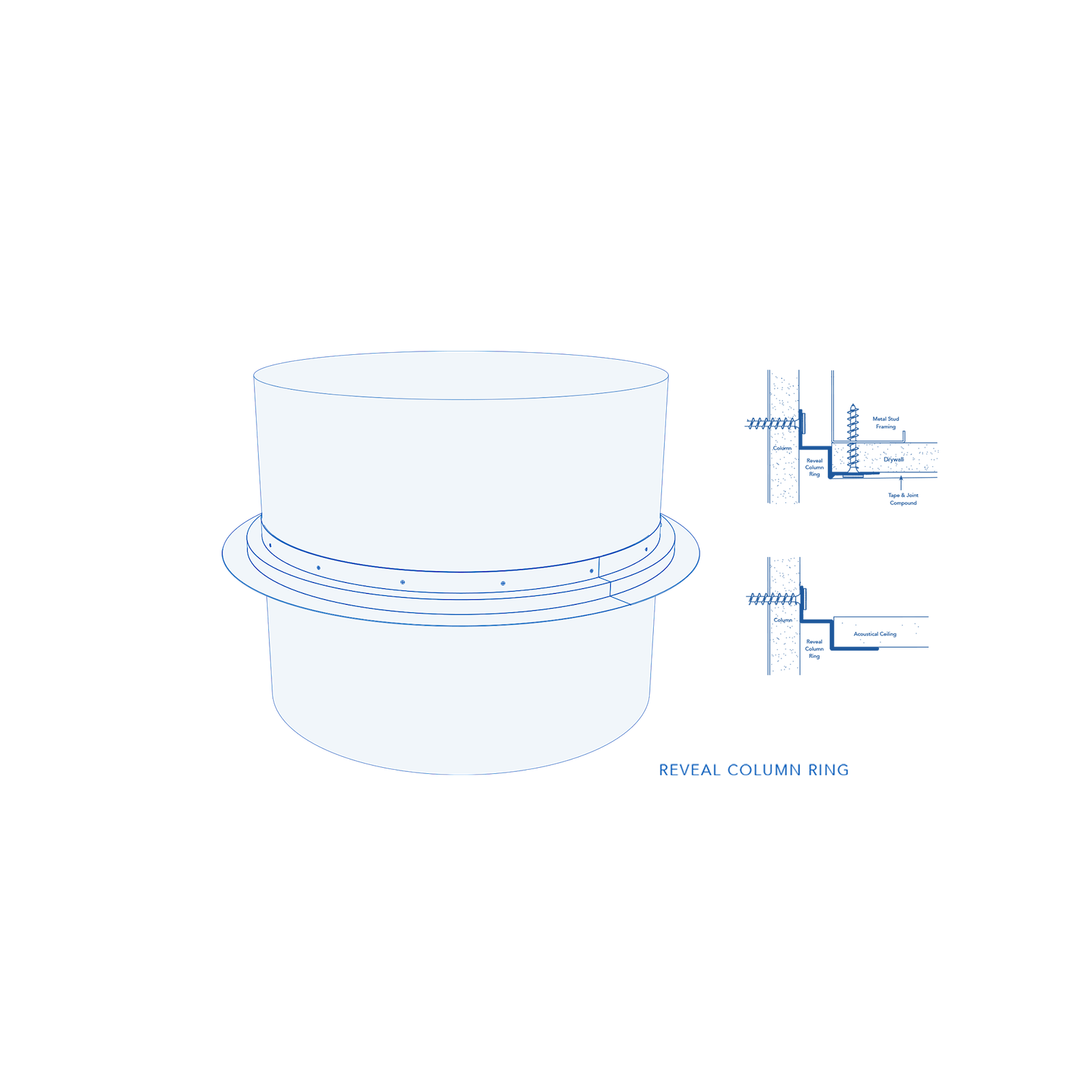

CEILING CONNECTIONS
Where the Column Cover abuts the ceiling, we offer extruded aluminum Column Collars and Rings.Factory-curved to the exact radius of the column, our Column Collars and Rings are available in clear anodized, powder coat, or color anodized options and suited for drywall or acoustical ceiling tile.
JOINTS
VERTICAL JOINTS
Fry Reglet Column Covers can have one of the following vertical joints:
- Butt Joint
- Reveal
- LED Reveal
- Tech Zone
HORIZONTAL JOINTS
Fry Reglet Column Covers can have one of the following horizontal joints:
- EX Reveal
- EX Splice
- Neoprene
- Butt Joint
- LED EX Reveal
EX REVEAL
An economical, extruded aluminum reveal designed to capture the top and bottom edge of the column skins to insure alignment. Available in clear anodized, powder coated, or color anodized.
EX SPLICE
An economical, extruded aluminum T-joint designed to capture the top and bottom edge of the column skins to ensure alignment.
Available in clear anodized, powder coated, or color anodized.
NEOPRENE
A custom fabricated reveal using the column skin material. Best suited when textured, or natural finished metals are selected.
BUTT JOINT
Soft “V” Joint where column skins abut.
REVEAL
Varying width reveal between the column skins.
LED JOINT
1/2” or 1” LED reveal between column skins.
TECH ZONE
Varying width and height flat section between the column skins, intended for simple mounting devices.
LED JOINT
LED Joints are intended for square or round columns with a radius greater than 3 feet. Available in 1/2” or 1” width.
BUTT JOINT
An economical joint where the column skins sit atop one another, joined together with a splice plate behind the joint.
SHAPES & FINISHES
SHAPES & FINISHES
Using a vast resource of quality plate metal suppliers and refinishers, we offer a wide selection of steel and aluminum Column Cover patterns and finishes.
From natural to textured metals, perforated metals, powder coat, or Kynar painted, the finish options are nearly limitless.
Our most common Column Cover shapes include round, square, racetrack, and elliptical. Column Covers are factory-fabricated to any diameter and height, with a column skin height up to 12 feet.
