3m Blackout Film Fpw9000j Pvc Filing
BLACKOUT FILM FPW9000J PVC FILING
3M BLACKOUT FILM FPW9000J PVC FILING
3M™ Blackout Film FPW9000J is a 5 mil thick high-gloss polyolefin film used to provide the blackout appearance around automotive side glass.
High-gloss (90% reflectivity) black appearance and an outer clearcoat integrate into vehicle designs. An easy-to-apply modified PSA delivers excellent final adhesion and high peel performance. Pre-masked and die-cut parts are available.
A High-Gloss, High-Peel OEM Film with Clearcoat An excellent alternative to automotive paint and paint processes, our 3M™ Paint Replacement Film FPW9000J is developed for a range of interior and exterior automotive applications such as window and door sashes, division bars and door moldings. This durable, pliable polyolefin film resists tearing, punctures and yellowing.
INFORMATION
BRAND
3M
PRODUCT TYPE
PVC Filling
SIZES
- Overall Length (Metric): 25 m
- Overall Width (Metric): 1.22 m
POLYOLEFIN FILM
- Resists Tearing
- Punctures
- Yellowing
AVAILABLE PARTS
- Pre-masked
- Die-cut
PRODUCTION
Made in United States
USE
Interior
CERTIFICATION
- Flammability
- IMO standards
COLORS
- Black
- Grey
- White
- Neutral
- Brown
APPLICATIONS
- Ceilings
- Furniture
- Lobbies
- Elevators
- Partitions
- Walls
APPEARANCE
Black
THICKNESS
5 mil
HIGH-GLOSS
90% reflectivity
USED
High-Gloss Polyolefin film
FEATURE
The air-bleedable feature of the adhesive layer has been designed for air bubble free application of the blackout film while still providing strong, reliable adhesion under extreme conditions of environmental stress such as climatic change and humidity cycling. The special release liner features a structured pattern which it imparts into the adhesive.
CHARACTERISTICS
- Adhesive tiles
- Easy to maintain
- Quick to install
- Easy to clean
- Patch repair
- Metallic finish
- 3M™ Comply™ adhesive technology
PRODUCT DETAILS
-Top clearcoat adds design flexibility -Helps eliminate time and expense of paint processes and related steps -A substitute for paint in areas of the automotive body that are expensive or difficult to paint -High-gloss black surface is an effective design tool for brand differentiation and visual impact -OEM-approved conformable PVC film used to provide blackout appearance around automotive side glass
DETAIL
DESIGN
The 5 mil (.127 mm) film features a high-gloss (90% reflectivity) black appearance and an outer clearcoat that meets stringent OEM automotive design specifications.
CYCLE
The modified acrylic adhesive is pressure-sensitive for easy application and reduced cycle times, and delivers very high final adhesion to a range of automotive surfaces even under extreme environmental conditions such as humidity and temperature changes.
PAINT PROCESS
A 6.8 mil PET liner provides fast, easy release.3M™ Paint Replacement Film FPW9000J eliminates the paint process and cumbersome masking and de-masking, reducing reject levels and production costs.
FEATURE
The air-bleedable feature of the adhesive layer has been designed for air bubble free application of the blackout film while still providing strong, reliable adhesion under extreme conditions of environmental stress such as climatic change and humidity cycling.
PATTERN
The special release liner features a structured pattern which it imparts into the adhesive. This pattern creates microchannels in the adhesive, which allow air to escape at the film edges. This feature reduces the chance of bubbling, and allows for faster removal of any remaining bubbles without air release tools. This automotive paint replacement film is available in pre-masked, die-cut parts for fast, efficient application.
SOLUTION

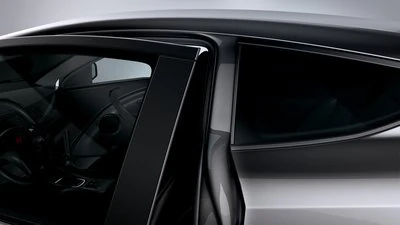

Recommended Applications Window and door sashes Front and rear door moldings Pillars and division bars About 3M Paint Replacement Films 3M™ Paint Replacement Films are part of a global array of engineered solutions for automotive manufacturers, including project planning, training and doc.
