MC-05 METAL CLIP SET
MC-05 METAL CLIP SET MC-F5 & MC-M5 - 5KG
Female metal clip with white center to indicate 5 kg pull out load. Compatible with MC-M5. Self taps into 20mm hole with MC-IT5. Screw fit installation with #5 gauge screws. For installation of wall panels only.
INFORMATION
BRAND
Fastmount®
PRODUCT TYPE
Steel Structure Hardwares
CHARACTERISTICS
Fire resistance and heavy load bearing, rapid installation
APPLICATIONS
- Fire rated panels
- Panels in fire egress paths
- Suitable for interior wall panels
- Mounting of curved panels
- Variety of substrates
SPECIFICATION
The MC-05 clip set is a combination of the MC-F5 (identified by white centre) and MC-M5 clips. The MC-F5 self taps and/or screw fixes into the substrate, and the MC-M5 self taps into the back of the panel. Innately fire resistant and ideal for heavy load bearing. Refer to Panel Offset Guide for gap between substrate and panel, pull out and shear loads.
INSTALLATION GUIDE
MC-05
PRODUCTION
Made in New Zealand
INSTALLATION

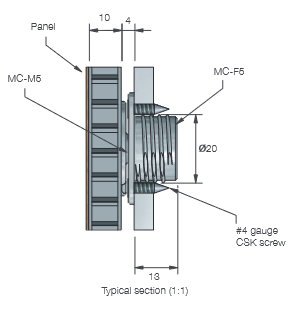

Partially exploded through section showing typical installation method
BENEFITS
- 5kg pull out load
- Self tapping and screw fit mounting options
- Metal clip to withstand high temperatures
- Allows for tolerance and panel flex (self centering)
- Provides acoustic and vibration isolation
SELF TAPS
20mm hole
CLIP LAYOUT GUIDE
TD-02, 09, 12
WHITE CENTRE
5kg load
CATEGORY
Metal Range
MATERIAL
- EZDA 3 triple plated
- SS spring
USE
- Interior panels
- Alumnium honeycomb panels - Lightweight fire rated panels
- Fire-rated heavyweight panels - High density panels
- Interior FR alucobond panels
- Fire rated access panels
- Where surface mount is required
