Fastmount MC-SM5 Surface Mount – Screw
MC-SM5 SURFACE MOUNT–SCREW
MC-SM5 SURFACE MOUNT–SCREW

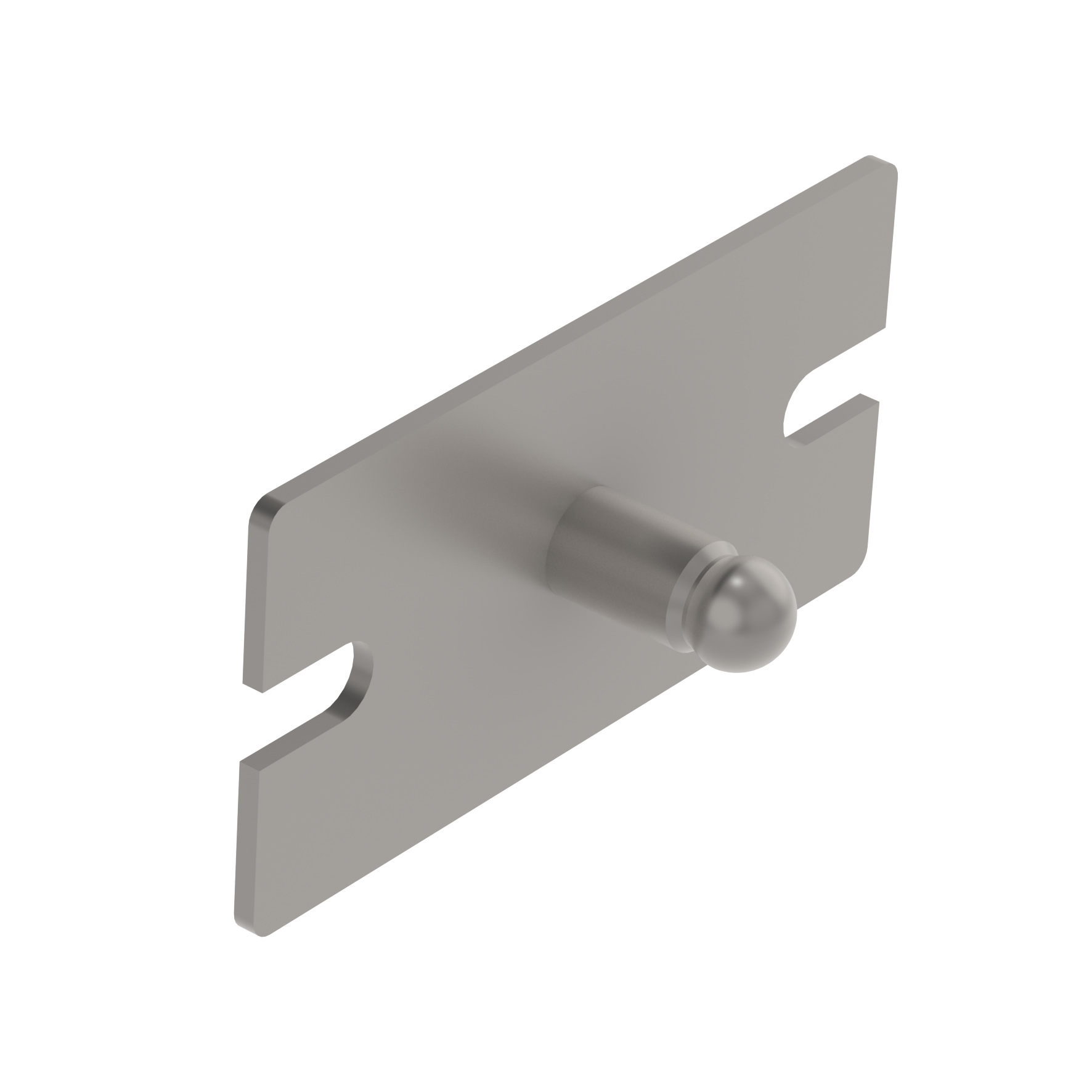

MC-SM5 Metal Male Surface Mount – Screw
Male clip with screw fix or rivet fix installation. Fire retardant with stainless steel composition. Compatible with the MC-F5 and MC-F10 depending on pull out load requirement. No special tools required for installation. For installation of wall panels only.
INFORMATION
MATERIAL
306 Stainless Steel
APPLICATIONS
- Marine, architectural, aviation and RV
- Suitable for interior wall panels only
- Aluminium honeycomb panels
- Lightweight fire rated panels
- Fire-rated heavyweight panels
- High density panels, where surface mount is required
- Interior FR alucobond panels
- Fire rated access panels
INSTALLATION
Partially exploded through section showing typical installation method
CATEGORY
Metal Range
METAL MALE CLIP
Surface Mount
CHARACTERISTICS
- Rapid Installation
- Fire Resistance and Heavy Load Bearing
BRAND
Fastmount
PRODUCT TYPE
Steel Structure Hardwares
BENEFITS
-Stainless steel clip withstands high temperatures -MC-SM5-VHBFR supplied with fire-resistant tape attached -Simple install with rivet, screw (MC-SM5) or adhesive (MC-SM5-VHBFR) -5kg pull out load with MC-F5 -10kg pull out load with MC-F10
SPECIFICATION
The Fastmount Metal Range was designed for demanding applications that require fire resistance and heavy load bearing.
The surface mount male provides a rapid install fixing compatible with the MC-F5 (5kg pull-out load) and MC-F10 (10kg pull-out load), with the option to screw or rivet fix to the panel using the MC-SM5, or self-adhesive fix using the MC-SM5-VHBFR. The MC-SM5-VHBFR is supplied with fire-rated VHB adhesive backing pre-applied for rapid panel mounting.
Gap between panel and substrate with MC-SM5: 3.75mm; with MC-SM5-VHBFR: 4.75mm. Refer to Panel Offset Guide for gap between substrate and panel, pull out and shear loads. Note: For use with wall panels only, not suitable for ceiling panel installation.
