GUSTAFS LINEAR MODULE
GUSTAFS LINEAR MODULE -WOOD CLADDING
Gustafs Linear Modules are our slatted timber panels in solid wood that comes fully assembled and ready to use, including the acoustic felt.
The Module system provides quick, user friendly and concealed installations and a modern linear look in solid wood.
A look that can be adapted to your request when it comes to the rib dimension and the spacing in between them, but also the type of wood and wood treatment.
information
USE
Interior acoustic cladding
PRODUCTION
Made In Sweden
CORE & TOP FINISH
- Core : -Solid Wood -All species of wood
- Top Finish : -Lacquer -Stain -Oil -Paint
APPLICATIONS
- Commercial
- Cultural
- Hospitality
- Residential
WALL MODULES
- 600 x 2400
- 600 x 3000mm
REACTION TO FIRE
The solid wood in Gustafs modules can be impregnated to classification B-s1,d0.
CEILING MODELS
- 600 x 1200 mm
- 600 x 3000
ACOUSTICS
Open area and sound absorption depends on the design.
MODULES T24 SUSPENSION
CHARACTERISTICS
-Acoustic Properties -Non-flammable -Sustainable -Pre-Assembled -Solid Wood -Customizable Finish and Spacing
HIGH LEED & BREEAM SCORES
High Leed & Breeam Scores Gustafs products contain no added urea formaldehyde, they are produced with 100% renewable power. Gustafs is FSC® certified.
FULLY CONCEALED & DEMOUNTABLE SUSPENSION
DESIGN
DIMENSIONS AND SOLID WOOD SPECIES
Design your Module freely according to your personal preferences but please note that the following rib dimensions will result in the most cost effective solutions with the shortest possible lead times and that we keep raw material in stock for oak, ash, birch and pine.
RIB LENGHTS
-For Gustafs Wall Modules: 2400 and 3000 mm
-For Gustafs Ceiling Modules: 1200 and 1800 mm
RIB THICKNESSES – VALID FOR BOTH WALL AND CEILING MODULES

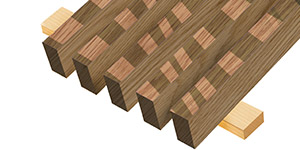

PORTRAIT RIBS
- 20×33 / 20×70 mm
- 27×33 / 27×70 / 27×95 mm
- 33×33 / 33×70 / 33×95 / 33×120 mm
- 44×70 / 44×95 / 44×120 / 44×145 mm
LANDSCAPE RIBS
- 33×20 / 70×20 / 95×20 / 120×20 / 145×20 mm
- 33×27 / 70×27 / 95×27 / 120×27 / 145×27 mm
- 33×33 / 70×33 / 95×33 / 120×33 / 145×33 mm
- 70×44 / 95×44 / 120×44 / 145×44 mm
TOP FINISH
TOP FINISH
Gustafs Linear Modules offers many possibilities to create environments with the highest demands for design and appearance. We collaborate closely with architects and designers and are attentive to what lies in the future. Choose your desired top finish method to achieve an unique design.
LACQUERED SURFACE
A clear lacquered finish is by far the most common maintenance-free and durable finish for wooden surfaces. Utilizing a multi-stage UV-lacquering process, our surface finish achieves these demands while aspiring to maintain technical aspects such as our fire retardation and environmental goals. Our lacquer is a multi-layer UV-cured process which is available in a range of gloss finishes.
LACQUERED SURFACE – PIGMENTATION
A pigment can be used to change the colour tone on Gustafs Modules. We have developed a three stage scale of white pigment for modules. Since various species react differently to the process we recommend a consultation before proceeding with surface finishing.
STAINED SURFACE
You can also stain the module to achieve different effects on your wall or ceiling. Different wood react different to certain treatments so contact us to guarantee that the final result matches your vision.
PAINTED SURFACE
Among the many advantages of a Gustafs Module is its plane and even surface. This enables us to create a painted surface finish and at the same time keep the beautiful wooden structure on the surface. we can produce painted surfaces in a multitude of colors in accordance with for example NCS or RAL codes up to a gloss rate up to 50.
PRINTED SURFACE
You can have your print directly on the module surface. We offer new design opportunities with Gustafs Print. You can design every module in a completely unique way. Design module by module or spread your graphics over several modules with a seamless transference.
OILED SURFACE
Oiled Module top finish creates a matte and beautiful finish on wooden surfaces. Contact us for advice and samples.
INSTALLATION
INSTALLATION
With more than 100 years of wood experience, we know how to handle and care for solid wood, a challenging job when perfectly aligned linear installations are requested.
CEILING INSTALLATION – FREE SUSPENDED
The ceiling modules come ready to use including an acoustic felt and are easily suspended from the integral M6 connection points. The M6 connection allows the height positioning to be fine-tuned with laser edge accuracy. Once the modules with the female shaped interlocking’s are in place, simply add and couple the male modules in between for a perfect alignment, while every second row of modules remaining fully demountable. We recommend 5mm spacing between the modules in length direction.
CEILING INSTALLATION – T24 SUSPENSION
Modules designed for Gustafs Capax T24 Ceiling Grid have a semi concealed and fully demountable installation system! The stability and sturdiness in our Capax T24 Ceiling Grid provide the unique combination of real demountability and a high level of bearing safety and safety during the mounting and demounting process.
Of course T24 ceiling modules can be supplied ready to use including a black or white acoustic felt, alternatively a 15 mm integrated black or white insulation layer.
WALL INSTALLATION
The Linear modules for walls also comes fully assembled and equipped with an acoustic felt. The modules are hung from hook shaped battens and once in place secured by a screw. The screw will be hidden behind the acoustic felt, using an overlap principle for a stylish end result
