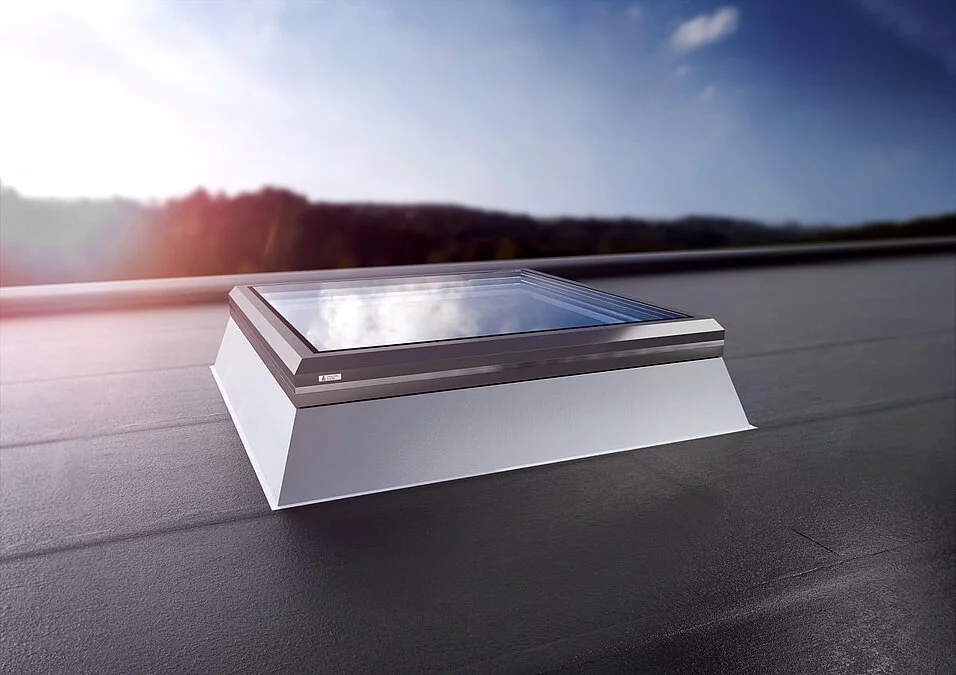

The new Glass Skylight FE – functions that also shine optically
INFORMATION
CHARACTERISTICS
-Flat Window -Generous Daylight Incidence -Self-cleaning -Thermally Insulated Upstand -Minimized Risk Of Condensation -Emergency Stop Function
MATERIAL
Glass
APPLICATIONS
Roofs
SIZES
Top roof edge dimensions 120 x 300 cm
DESIGN
- Award-winning: German Design Award, reddot design award, Plus X Award
- Uniform appearance
- Aesthetic, classical and elegant design language
- Avoidance of dirt on the glass surface
VARIETY
-Large range of sizes - Customisation to the overall concept -Various glazing types -Various drive options
USE
- Our Flat Roof Window FE is BIM-Ready - Download at Bimobject.com
- Fully pre-assembled
- Simple installation
- Efficient maintenance
- Versatile adapter frame
TECHNICAL DESIGN DETAILS- THERMO ACTIVE DESIGN
A patented structural ribbing uses the heat energy of the room air below the base for the glazing. This increases the surface temperature in the aluminium frame. The result: A flawless isothermal line and minimised risk of condensation.
QUALITY
-Passivhaus standard certified skylight in Passivhaus efficiency class phC
-Overall structure free of thermal bridges
-Water tightness under driving rain to DIN EN 1027 = E (1950)
-Optimised soundproofing and minimised rain noise
-Long service life
-Permeability to air in line with DIN EN 1026 = Class 4
-Life-cycle assessment made easy : There is a comprehensive Environmental Product Declaration for the Glass Skylight FE in accordance to ISO EN 15804
DIN 18234 – PREVENTION OF FIRE SPREAD ON FLAT ROOFS
The GRP upstand and the aluminium surrounding frame profile render further safety measures unnecessary on flat roofs. Surface protection in the form of gravel fill is not required.
CERTIFICATION
Compliance with DIN 18234 without additional measures (prevention of fire expansion on the flat roof), resistance to external fire exposure from flying sparks and radiant heat with classification Broof(t1) according to DIN EN 13501-5, fall-through proof according to DIN 18008-6
SAFETY
-Fall-proof according to DIN EN 18008-6
-Flat Roof Window with general building inspection approval in "Structural Glazing" construction method - certified by the German Institute for Construction Technology in Berlin (DIBt)
-Smoke exhaust opening
-Resistance against wind load in line with DIN EN 12211 = C5
-Resistance to external fire exposure from flying sparks and radiant heat with classification B,roof(t1) according to DIN EN 13501-5
GRP UPSTAND
Stability and heat insulation in many models
The upstand forms the base for the construction. It provides the ideal thermal connection to the building structure. Manufactured by LAMILUX, using fibre-reinforced composite, our upstands are CFC-free, solid white in colour and thermally insulated with polyurethane hard foam.
They include a weatherproof sealing and are classified as non-flammable components with no burning droplets. LAMILUX upstands have a closed box section, which makes them very stable and warp-resistant. Different metal inserts can directly be laminated into the structure. Secure anchorage for fittings and personal protective equipment (PPE) is guaranteed.
LAMILUX upstands can be manufactured in an extremely large number of variants with regard to height and inclination angle. They also offer many options for customised roof connections.
VARIANTS
GLAZING TYPES
Our range of glazing takes different aspects on an individual basis into account :
- Incidence of daylight / Transparency and light diffusion
- Energy efficiency / thermal insulation
- Sun protection / protection against heat
- Sound insulation
- Self-cleaning
- Permanently fall-through protection
LAMILUX JOINTLESS GRP UPSTAND
- Available with upstand heights of 15, 30, 40 and 50 cm
- Seamless upstand
- Complies with DIN 18234 without additional measures
- Element pre-mounted on the upstand, ex works
W102 DOUBLE-LAYERED HEAT INSULATING GLAZING TSG*
- Ug-Value : approx. 1,1 W/(m²K)
- Sound insulation value : approx. 38 dB
- Light transmittance : approx. 80 %
- Energy permeability : approx. 62 %
W110 TRIPLE-LAYERED HEAT INSULATING GLAZING TSG*
- Ug-Value: approx. 0,6 W/(m²K)
- Sound insulation value: approx. 39 dB
- Light transmittance: approx. 72 %
- Energy permeability: approx. 51%
W103 DOUBLE-LAYERED HEAT INSULATING GLAZING TSG* WITH MATT, LIGHT-COLOURED FILM (MLF**)
- Ug-Value: approx. 1,1 W/(m²K)
- Sound insulation value: approx. 38 dB
- Light transmittance: approx. 54 %
- Energy permeability: approx. 59%
W303 TRIPLE-LAYERED HEAT INSULATING GLAZING TSG* WITH MATT, LIGHT-COLOURED FILM (MLF**)
- Ug-Value: ca. 0,6 W/(m²K)
- Sound insulation value: approx. 39 dB
- Light transmittance: approx. 49 %
- Energy permeability: approx. 50%
DOUBLE-LAYERED SOLAR PROTECTION INSULATION GLASS S109 60/30 TSG*
- Ug-Value: approx. 1,1 W/(m²K)
- Sound insulation value: approx. 38 dB
- Light transmittance: approx. 61 %
- Energy permeability: approx. 30%
TRIPLE-LAYERED SOLAR PROTECTION INSULATION GLASS S117 60/30 TSG*
- Ug-Value: approx. 0,6 W/(m²K)
- Sound insulation value: approx. 39 dB
- Light transmittance: approx. 55 %
- Energy permeability: approx. 28%
