LARGO TWIST 2045 WIRE MESH STEEL FRAME
LARGO TWIST 2045 WIRE MESH STEEL FRAME

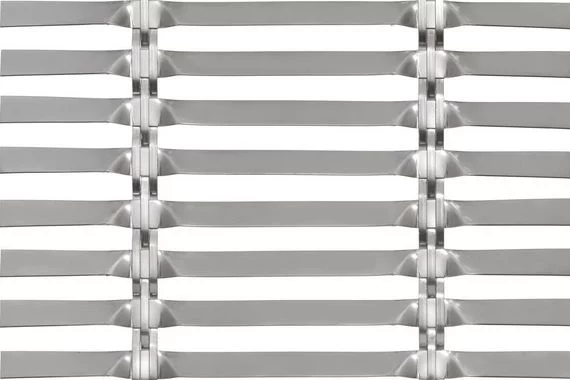

The HAVER Architectural Mesh LARGO-TWIST is characterized by its tilted horizontal flat wires. Depending on the orientation of this mesh type it acts as an effective sun or privacy screen.
INFORMATION
PRODUCT TYPE
Steel Frames
PRODUCTION
Made in Germany
FORMAT
Modular wire mesh
OPEN AREA
38%
WEIGHT
5.5 kg/m²
MAIN APPLICATIONS
- Facade
- Sun Protection
MAX. WIDTH
3.0 m
PROPERTIES
Solar Control
CHARACTERISTICS
- Consists of inclined, horizontal flat wires
- A sturdy and robust wire mesh
- Creates an homogeneous appearance with low transparency
- A particularly effective sun protection mesh
- Can also be used as a privacy screen depending on orientation
MATERIAL
Stainless Steel
DOWNLOAD
↓ Data Sheet

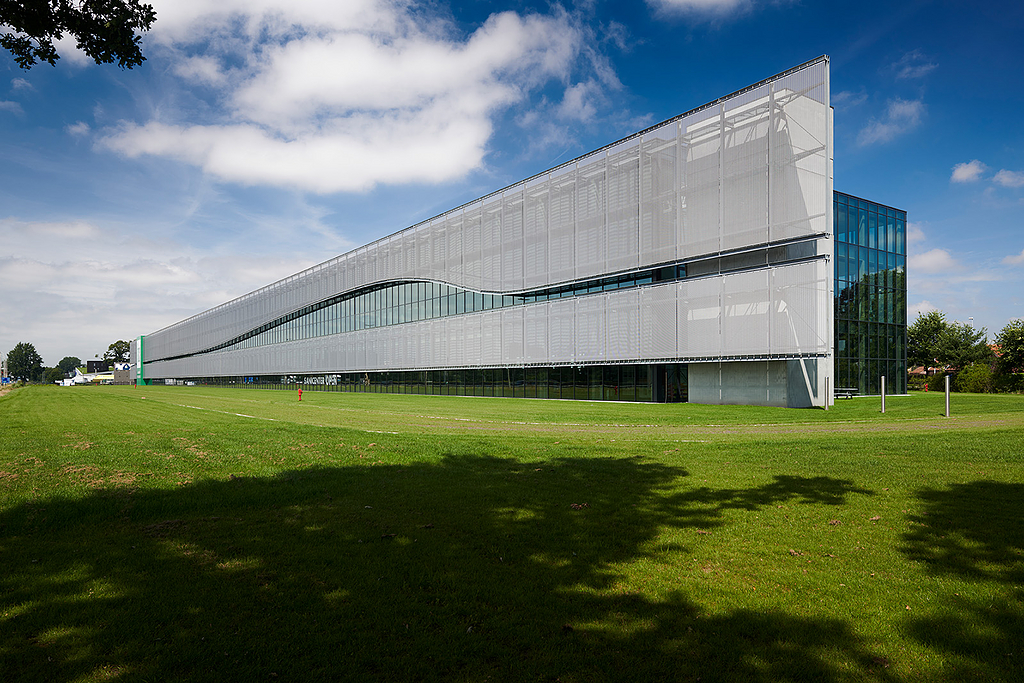

LARGO-TWIST 2045 VIEWS
SUN PROTECTION GLAZING - LARGO-TWIST 2045
| Angle Of Incidence α | Glazing | 0° | 30° | 60° |
|---|---|---|---|---|
| g-value | 0.29 | 0.15 | 0.11 | 0.02 |
| Fc factor | 1.00 | 0.50 | 0.37 | 0.08 |
DOUBLE GLAZING - LARGO-TWIST 2045
| Angle Of Incidence α | Glazing | 0° | 30° | 60° |
|---|---|---|---|---|
| g-value | 0.78 | 0.38 | 0.27 | 0.06 |
| Fc factor | 1.00 | 0.49 | 0.35 | 0.08 |
