3M™ Fire Barrier Plug
FIRE BARRIER PLUG
FIRE BARRIER PLUG

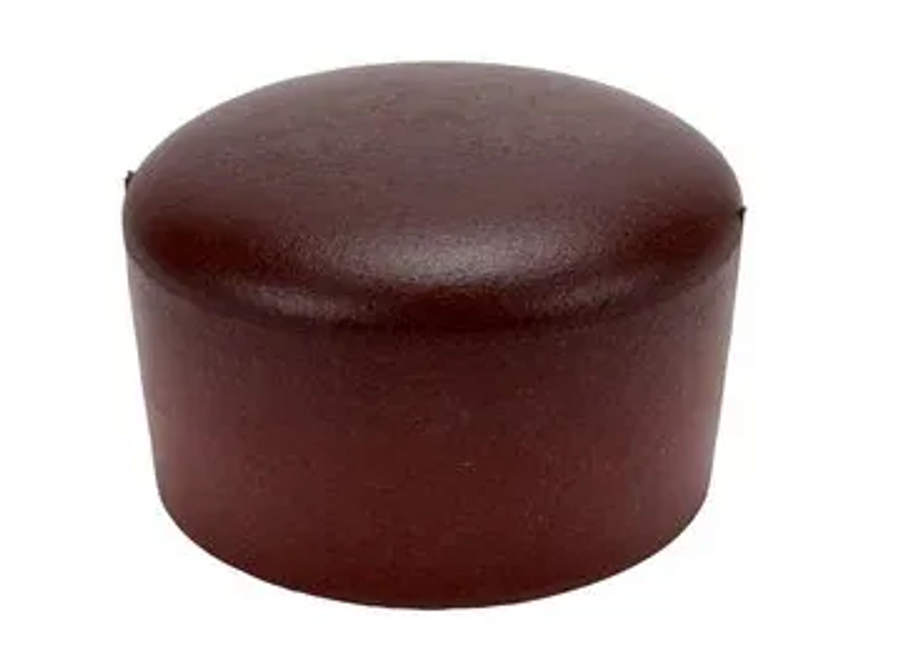

3M™ Fire Barrier Plug is a replacement foam plug for 2-inch Round 3M™ Fire Barrier Pass-Through Device.
This product works together with the device to help prevent the spread of smoke and fire. These foam plugs enhance the cold and hot smoke seal and help the system achieve UL classified L-Rating.
INFORMATION
BRAND
3M™
PRODUCT TYPE
Plug
CHARACTERISTICS
- Gradient glass
- Wood grain finishes
- Easy installation
- Shatter reisistnat
- Versatile
FEATURES
- Re-enterable/repairable
- Fully reusable
- Easy to install
- Paintable with primer
- No cure time
APPLICATIONS

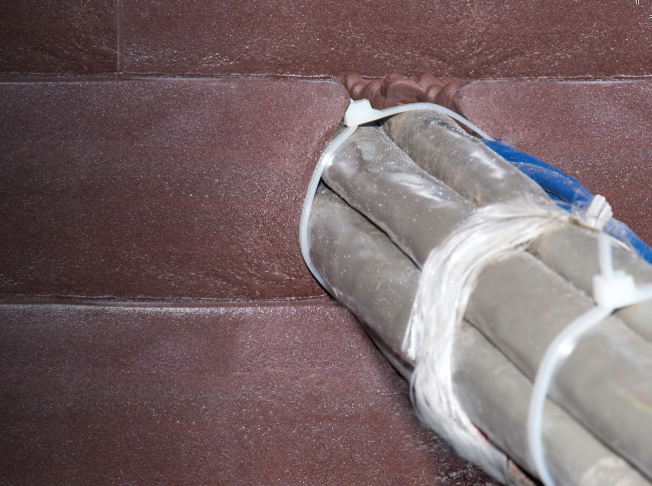

- Sleeves & Cables
- Blank openings
- Open metal conduits
- Concrete walls and floors
- Gypsum wall board assemblies
PRODUCTION
Made in Bangalore
COLLECTION
Fire
FULLY TESTED AND APPROVED
Our 3M™ Fire Barrier Plug (PDF, 78 Kb) are firestop tested to the criteria of ASTM E 814/UL 1479 Standard Test Method for Fire Tests of Penetration Firestop Systems, ASTM E 84/UL 273 Standard Test Method for Surface Burning Characteristics of Building Materials, ASTM E 90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E 413 Classification for Rating Sound Insulation.
DETAIL
-Plays a part in a system that allows pass-through device to achieve UL classified L-Rating -Foam plugs are part of a hassle-free firestop method -Works with 2-inch Round 3M™ Fire Barrier Pass-Through Device to help prevent the spread of smoke and fire
-Enhance cold and hot smoke seal
AREA
1.8 million ft2
YEAR OF PRODUCTION
2016
ENHANCED SEAL FOR FIRE PREVENTION

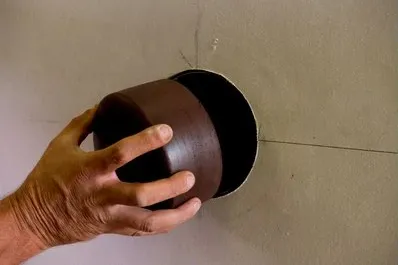

Engineered to help stop smoke, sound and fire, our 3M™ Fire Barrier Plug are designed for firestop applications in walls and floors. These are re-enterable, repairable and reusable. Installation is easy, saving both time and labor. Our foam plugs are paintable with primer and have no cure time. 3M™ Fire Barrier Rated Foam FIP Plug is rated for up to 2 hours.
RELIABLE AND AFFORDABLE FIRE PROTECTION
Effective and easy to install, 3M™ Fire Barrier Plug are part of our family of fire protection products that offer the broadest, long-lasting solutions for a variety of commercial, industrial and residential applications. As a trusted leader in the fire protection industry, 3M offers a broad line of affordable products designed to meet the most demanding firestop requirements. Find the solution you need from the industry-preferred line of fire protection products.
CERTIFICATION
Leed Gold Certified
FOAM PLUGS
Enhance the cold and hot smoke seal and help the system achieve UL classified L-Rating
PERFORMANCE
| Surface Burning | Flame Spread 5, Smoke Development 250 | ASTM E 84 |
|---|---|---|
| Air Leakage | Less than 1 CFM/sq. ft. @ 400°F less than 1 CFM/sq. ft. @ ambient | UL 1479 Section 6 |
TYPICAL PHYSICAL PROPERTIES
| Product | Size | Color | Mass | Units/Ctn | Wt./Ctn |
|---|---|---|---|---|---|
| 3M Fire Barrier Block B258 | 2-3/8 in. x 5-1/8 in. x 7-7/8 in. (60 mm x 130 mm x 200 mm) | Maroo n | 575g | 12 | 15.2 lbs. |
| 3M Fire Barrier Plank PK39 | 2-3/8 in. x 5-1/8 in. x 39-3/8 in. (60 mm x 130 mm x 1000 mm) | Maroon | 2875g | 3 | 19.0 lbs. 8,6kg |
| 3M Fire Barrier Plug PLG2 | 2 in. diam. x 3-1/8 in. high | Maroon | 120g | 4 | 1.1 lbs. 0,48kg |
| 3M Fire Barrier Plug PLG4 | 4 in. diam. x 3-1/8 in. high | Maroon | 360g | 4 | 3.2 lbs. 1,4kg |
