BETTELUX SHAPE BATHTUBS
BETTELUX SHAPE BATHTUBS
Item number: 3451

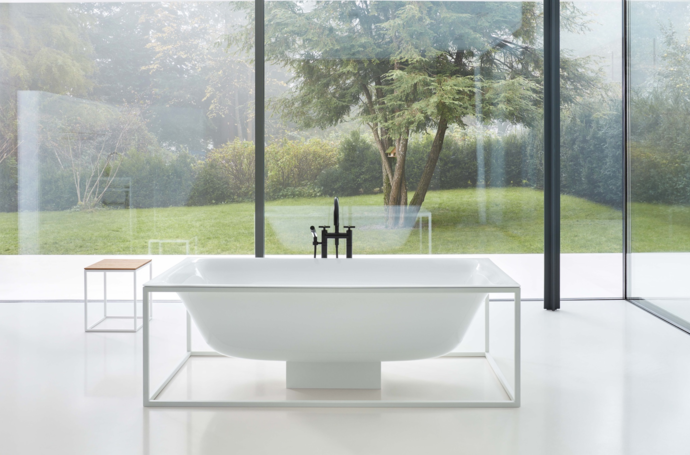

BetteLux Shape is characterised by a flowing, natural design that is formed from an organic basic shape with extremely delicate outer edges.

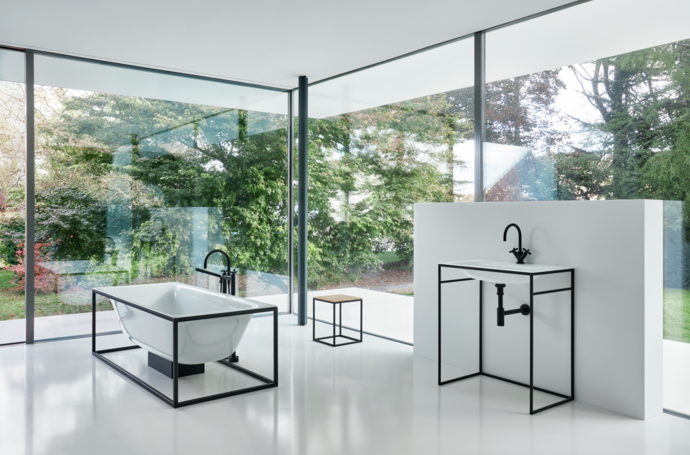

Frames in powder-coated steel accentuates the full beauty of the bath, holding it as if it were weightless. The specially developed BetteSensory overflow underscores the idea of perfect reduction.
INFORMATION
BRAND
My-Bette
PRODUCT TYPE
Bathtub
FRAME COLORS
- Black, Matt(815)
- White, Matt(807)
PRODUCTION
Made in Germany
ITEM NUMBER
3453
INSTRUCTIONS FOR USE
The Pop-up Waste Bettesensory Is Prefitted.
FUNCTIONS
2-seater Bath
WEIGHT
54.2 kg
MATERIAL
Glazed Titanium-Steel
CAPACITY
234 l
CORNER RADIUS
8 mm
EDGE HEIGHT
8 mm
DRAIN DIAMETER
52 mm
DOWNLOADS
↓ Performance Declaration
↓ Data Sheet
↓ Brand certificates
↓ Drawings (unmeasured)
↓ Drawings
↓ Care instructions
QUALITY
Sustainable Quality
INSTALLATION TYPE
Free-standing
SCOPE OF DELIVERY
- Waste And Overflow Set Sensory (Pre-assembled)
- Control Box
- 12v Power Supply
- Emergency Battery
- Two 8m Long Control Cables
- Drain Box In Frame Colour
WARRANTY
30 Year Warranty
SHAPE
Rectangular
TECHNICAL ADVICE
-The BetteLux Shape is enamelled on the inside and outside and delivered without overflow. The overflow function is safeguarded by a pressure sensor integrated in the pop-up waste. -A 12 V electrical connection under the bath is needed for the installation of the pop-up waste. Delivery includes an 8 m long cable for connection to the control box. The control box can be integrated in a concealed socket and needs a 230 V electrical connection. Baths and frame are fixed at the factory, but must be ordered separately. An order of the individual components is not possible.
DIMENSIONS IN DETAIL
| SELECTED DIMENSION | A | B | I | K |
|---|---|---|---|---|
| 1900 x 900 x 450 / 1420 mm | 1900 | 900 | 1420 | 615 |
| 1700 x 750 x 450 / 1270 mm | 1700 | 750 | 1270 | 507 |
| 1800 x 800 x 450 / 1345 mm | 1800 | 800 | 1345 | 545 |
TECHNICAL DRAWINGS
COLORS
FRAME COLOURS
- Black Matt 815
- White Matt 807
MATT COLORS
- Snow(440) -Blue Satin(418) -Ebony(035) -Edelweib(004) -Flanell(008) -Jasmin(006)
GLOSSY COLORS
-White (000) -Black(056) -Natura(038) -Pergamon(001) -Manhattan(002) -Bahamabeige(003) -Starwhite(287) -Midnight(790)
