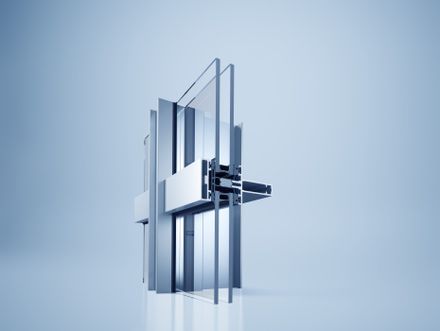

Heroal Curtain Wall Facade System - heroal C 50 ID
HEROAL C 50 ID - FACADE SYSTEM
HEROAL C 50 ID - CURTAIN WALL FACADE SYSTEM
The design-oriented curtain wall system with steel effect.
The heroal C 50 ID curtain wall system stands for creative façade design that can provide industrial design solutions. It enables planers, architects and processors to satisfy the highest of demands.
The innovative concept for heat insulation with foam-filled insulators and adapted insulator damping, and the continuous seal are standard in the industrial design options.
No-compromise design options for the façade coupled with effective compatibility with the other heroal systems in the façade form the basis for a top-quality, flexible façade design.
INFORMATION
PRODUCT CODE
C 50 Id
PRODUCTION
Made In Germany
PRODUCTION
Made In Germany
BRAND
Heroal
APPLICATION
- Facades
- Exterior
- Offices
- High-Rise Residential Buildings
- Commercial
SIZES
- Width : 50 mm
- Construction depth : 28-260 mm
- Glass filling strength : 8-62 mm
- Max weight of filling element: 800 kg
CHARACTERISTICS
- Weather-resistant
- Thermal insulation
- Air permeable
- Wind-Resistant
USE
Curtain wall system
PEODUCT TYPE
Facade systems
DOWNLOAD
↓ Brochure
EFFECT
Steel
PERFORMANCE CHARACTERISTICS
RE 1200
Resistance to driving rain
I5/E5
Impact resistance
0,78 - 1,7
Thermal insulation [Uf in W/m2K] / Profile width [mm]
AE
*Air permeability
49
dbSoundproofing class
2 kN/m²
Wind resistance
