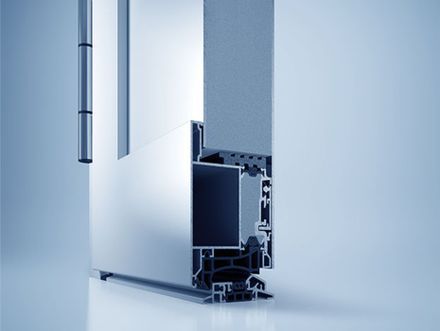

HEROAL D 72 FRONT DOOR SYSTEM
HEROAL D 72 FRONT DOOR SYSTEM
Front door system with exceptional quality and features
Heroal offers exceptional system diversity with the heroal D 72 front door system. The best materials, highest functionality, sophisticated design options and maximum flexibility are the solid foundation for individual pieces that are always customised and manufactured exclusively.
Heroal front door systems offer the greatest possible variety for a multitude of infill types and elaborate system solutions for all installation situations in new builds and renovations, whether exclusive and modern or timelessly elegant with a modern or traditional appearance.
In addition to the numerous design options, high burglary resistance up to RC 3 is guaranteed as standard.
INFORMATION
BRAND
Heroal
PRODUCT TYPE
Door System
APPLICATIONS
- Residential
- Commercial
COMPOUND PROFILE
- Patented
- Warp-resistant
PROPERTIES
- Energy Efficiency
- Thermal Insulation
PRODUCTION
Made in Germany
MANUFACTURED
Exclusively
SMALLEST COMBINABLE FACE
Width : 145 mm
MECHANICAL STRENGTH
Class 3
CONTINUOUS FUNCTION
Up To Class 8
MAX. SASH WEIGHT
180 kg
DESIGN DEPTH
- 72 mm (frame/bars)
- 65-72 mm (sash)
MAX. SASH WIDTH/ HEIGHT
- 1.400 mm
- 3.000 mm
VARIABLE FACE WIDTHS
- Frame 60-250 mm
- Sash 56-124 mm
- Bars 70-254 mm
WINDOW TYPE
Sliding
USE
Sliding Glass Door
MATERIAL
Aluminum
IMPACT RESISTANCE
Class 4
AIR PERMEABILITY
4
OPERATING FORCES
Class 2
CERTIFIED BURGLARY
Resistance up to resistance class RC 3
BEHAVIOUR BETWEEN DIFFERENT CLIMATES
Class 2 (d/e
THERMAL INSULATION
Uf >1.7 W/m²K (meetng all requirements of GEG 2020, the German Buildings Energy Act)
TIGHTNESS AGAINST DRIVING RAIN
Up to E900
DOWNLOAD
↓ Brouchers
APPLICATION AND USE IN CONSTRUCTION
Walls
WIND LOAD RESISTANCE
C4
SOUNDPROOFING
Up to Rw = 43 dB
MAX. THICKNESS OF GLASS /INFILL PANEL
- Frame up to 54 mm,
- Sash up to 68 mm (glass)
- 72 mm (panel)
SYSTEM PROPERTIES
- Glass filling strength : 54 mm
- Max. leaf weight : 180 kg
- Max. leaf widths : 1.400 mm
- Max. leaf heights : 2.500 mm
- Min. face width sash/frame profile : 145
| DIMENSIONS | PROFILE DEPTH [MM] | VISIBLE PROFILE WIDTH [MM] |
|---|---|---|
| Frame profile | 72 | 60 - 250 |
| Leaf profile | 59 - 82 | 56 - 124 |
| Bar profile | 72 | 74 - 254 |
PERFORMANCE CHARACTERISTICS
- Mechanical resistance
- Operating forces
- Air permeability
- Impact resistance
- Soundproofing class
- Wind resistance
- Resistance to driving rain
- Resistance to burglary
- Continuous function
- Heat insulation (Uw in W/m2K) / Profile width [mm]
- Thermal insulation [Uf in W/m2K] / Profile width [mm]
- Load-bearing capacity of safety equipment
DESIGN OPTIONS
- Compatible window system: heroal W 72
- All-round sash frame, with base, single or double-sided FüF
- Integration into curtain wall system heroal C 50 HI possible (entrance curtain walls)
- Opening variants: single or multi-part elements with sidelights and toplights
- Design variant heroal D 72 PF „Panel Fixed“ with fixed stop, no glazing strip required
- Single or multi-part formed elements with sidelights or toplight as segmental, round or basket arch
- High-quality colour design with heroal hwr powder coating, heroal SD surface designs and Les Couleurs® Le Corbusier
