Cupa Pizarras Natural Slate CUPA 4
NATURAL SLATE CUPA 4
NATURAL SLATE CUPA 4
CUPA PIZARRAS has been producing the most complete range of natural slate for roofing and facade since 1892.

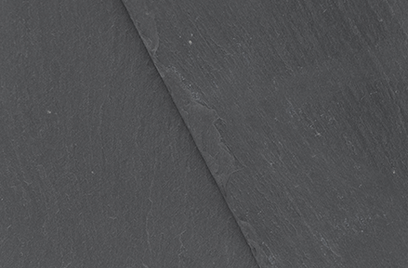

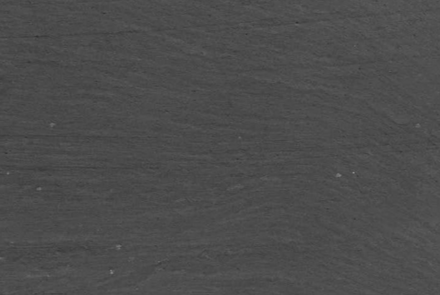

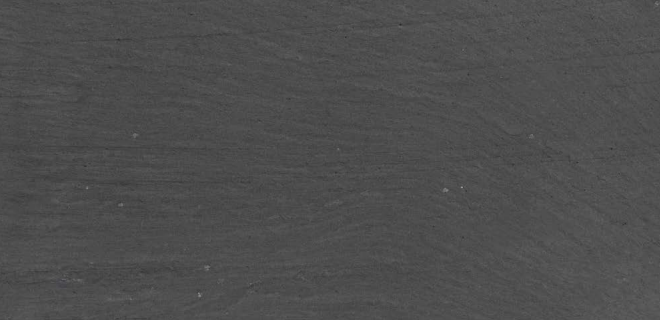

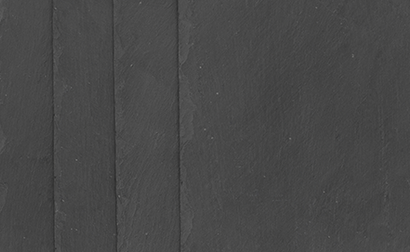

Non-carbonated slate formed by tectonic compression. Blue black slate with thin laminations and a smooth surface. Split to an average thickness of 3.75 mm, 5 mm and 7.5 mm.
information
BRAND
Cupa Pizarras
FORMAT
Multiple shapes are available
SURFACE
Smooth
SELECTIONS
R/H/Natural
APPLICATIONS
- Heritage
- Historical building
- Collective building
- Single family homes
CHARACTERISTICS
- Blue black slate
- Smooth surface
- Non-carbonated
-Formed by tectonic compression
FREEZE THAW TEST
Fulfill < 0,6%
THERMAL CYCLE TEST
T1
USE
Roofing and cladding
MOR CHARACTERISTIC
Longitudinal 56.6 MPA
INTERNATIONAL CERTIFICATIONS
CUPA 4 roofing slates meet the following international standards.
- EN 12326
- 02/02 Nº5274
- ATG/H517
- BS EN 12326:2014
SIZES
25x15 - 50x38 cms
WATER ABSORPTION
0.17% Code : W1 (< 0,4%)
DIMENSIONS
- Sizes : Between 25x15cm and 50x38cm
- Thickness : 3.75 mm, 5 mm and 7.5 mm
CERTIFICATION
- European Standard: EN 1232
- Belgian standard: ATG/H599
- British Standard: BS 680 Part 2
- French Standard: NF 228-02/06/01
NON CARBONATED
0.40% Fulfill (< 1,5%)
FREEZE THAW TEST
Fulfill < 0,6%
FORMATS
Rectangular is the most common model.
