Stacbond STB-T-REM Panel System
STB-T-REM PANEL SYSTEM
STB-T-REM PANEL SYSTEM
The STB-T-REM is a kit system of panels made of STACBOND® composite panel for the assembly of ventilated facades. It consists of a system with visible fixings and quick assembly, which admits both horizontal and vertical modulations.
It is a very versatile system that adapts perfectly to any architectural typology and offers the possibility of easily executing curved areas. For all these reasons, the STB-T-REM system meets all the requirements to be able to execute the most avant-garde architectural envelopes.
Its substructure with profile T offers a great advantage in material and weight savings. The STB-T-REM system complies with the most important international certifications.
INFORMATION
BRAND
Stacbond
PRODUCTION
Made in Spain
TYPE
Panel System
APPLICATIONS
Ventilated Facade
CHARACTERISTICS
- Versatile
- Visible Fixings
- Quick Assembly
MODULATIONS
- Horizontal
- Vertical
USE
Construction systems for composite panels
ASSEMBLY
Quick
STB-T-REM SYSTEM AUXILIARY ELEMENTS

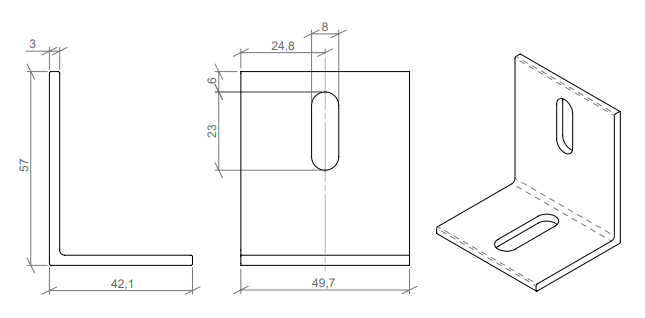

Spacer Angular
Part made of extruded 6063 T5 aluminium alloy pro le (3 mm) with holes for xing to the upright and cross-strut pro les T.
This accessory allows pro les T to be attached horizontally to the vertical substructure, reducing the number of xings to the base wall. Fixing of these spacers is done using ø 4.8 mm blind rivets or ø 4.8 mm self-tapping screws. These coupling parts are compatible with possible dilation of the substructure.
| Reference | Description | Units/box |
|---|---|---|
| 19.021 | Spacer Angular | 100 |
MEASUREMENTS
- Height 1 : 57mm
- Height 2 : 23mm
- Width : 42.1 x 49.7mm
SYSTEM CERTIFICATION STB-T-REM
| Country | Homologación | Organismo | Core, A2 | Core, FR |
|---|---|---|---|---|
| E.U. | ETA 15-0655 | MARCADO CE | IETcc, Madrid | Yes | Yes |
| Spain | DIT 553p/19 | DIT PLUS | IETcc, Madrid | Yes | Yes |
| Poland | ITB-KOT-2017/0043 wydanie 2 | ITB, Warsaw | Yes | Yes |
| Romania | CTCP | CTPC, Bucharest | Yes | Yes |
| Mexico | Valor AMEVEC | AMEVEC Mexico City | No | Yes |
