BERG XL EXPANDED METAL RAILINGS
BERG XL EXPANDED METAL RAILINGS

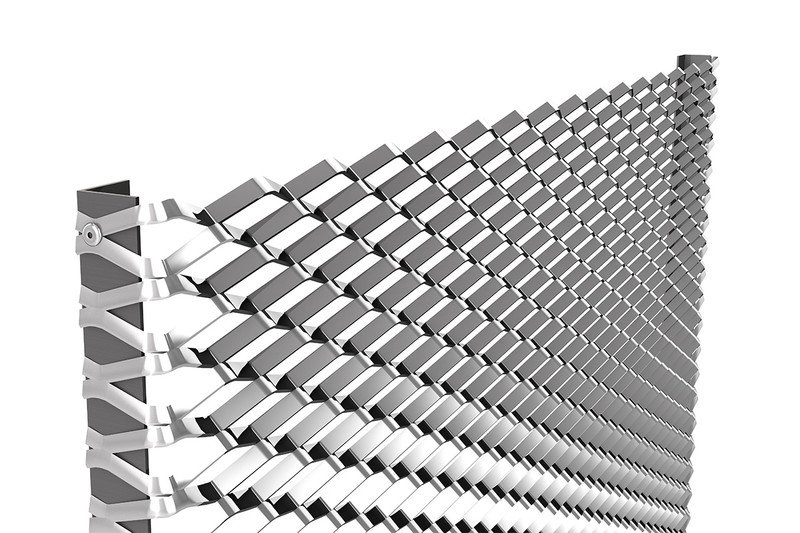

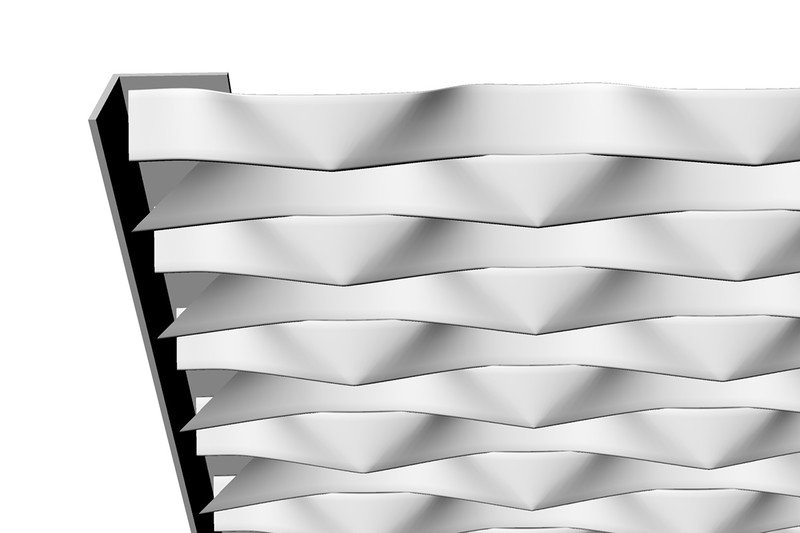

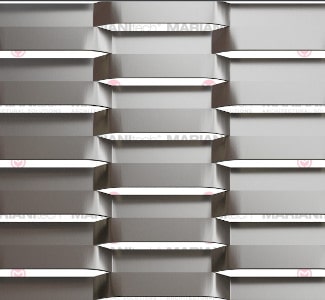

With its particular hexagonal shape, it elegantly covers any building.
By creating new lines and profiles, it is used to model every type of structure with elegance and originality. Wider version of the standard Berg.
information
BRAND
Fratellimariani
PRODUCT TYPE
Railing
SPESSORE THICKNESS
- Esagonale : 1.50 mm
- Hexagonal : 2.00 mm
MAGLIA MESH DL, LWD
- Esagonale : 225 mm
- Hexagonal : 225 mm
VUOTO/PIENO MAX MAX OPEN AREA
- Esagonale : 77 %
- Hexagonal : 77 %
COLLECTION
Berg
PRODUCTION
Made in Italy
USE

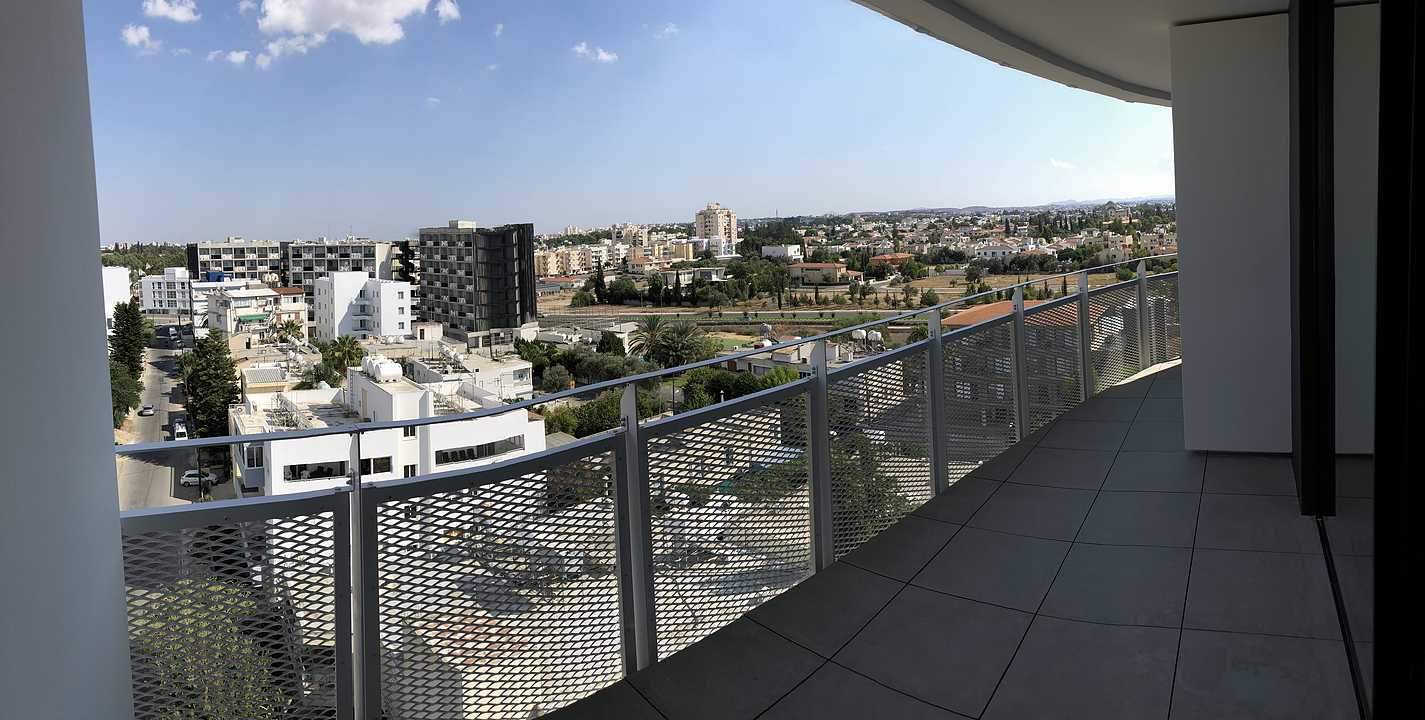

Railings
DOWNLOAD
ā Technical Data Sheet
MATERIAL
- Mild Steel
- Galvanized Steel
- Stainless Steel
- Aluminium
APPLICATIONS
- Urban
- Industrial
- Residential
- Commercial
SUNSCREEN

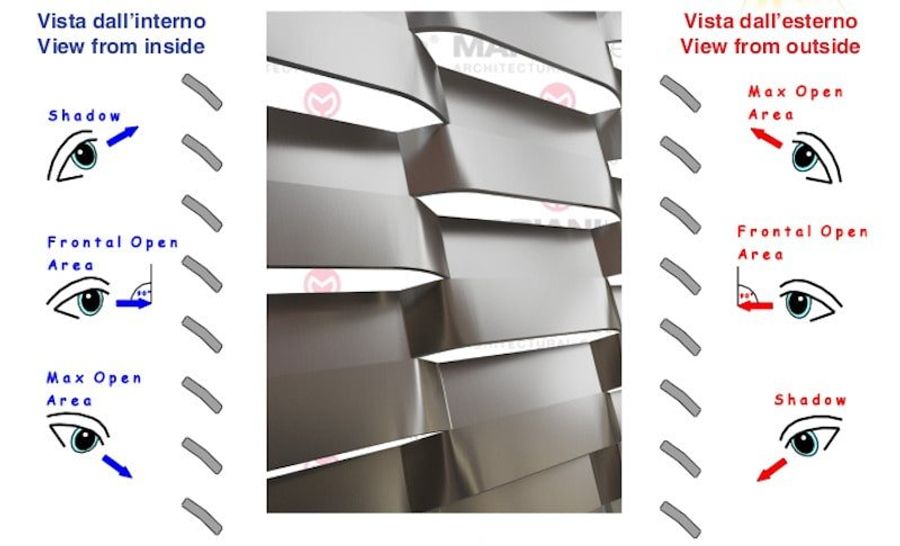

VUOTO/PIENO FRONTALE FRONT OPEN AREA
- Esagonale : 11 %
- Hexagonal : 11 %
FORMATO HMAX//DL DIMENSION HMAX//LWD
- Esagonale : 2000 mm
- Hexagonal : 2000 mm
CHARACTERISTICS
-Expanded Mesh From Different Metals -Customizable -Suitable For Metal-working Processes -Can Be Surface Treated Including Color Anodizing And Hot-dip Galvanizing -Durable -Available In Unlimited Color Variations
PESO WEIGHT
- Esagonale : 3.7/10.9 [Kg/m2]
- Hexagonal : 5.0/14.5 [Kg/m2]
SPESSORE TOT.TOTAL THICKNESS
- Esagonale : ~ 18 mm
- Hexagonal : ~ 18 mm
INSTALL
Install a shading means using an item that gives the possibility of shielding all or part of the passage of sunlight while allowing the passage of air. Expanded metal is by nature a material that contains these two features, while having the advantage of being able to add an aesthetic and architectural value to each application.
FIXING & MOUNTING
MOUNTING SYSTEMS

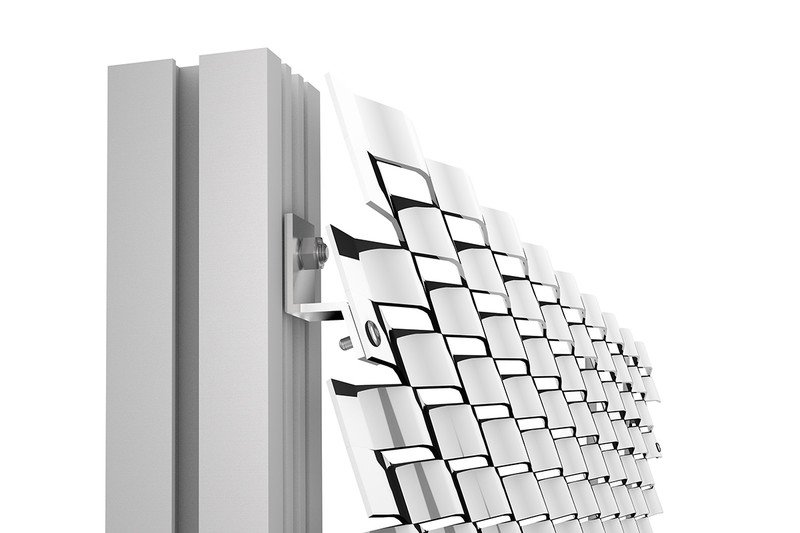

The fixing systems provide a variety of solutions for understructures and framing, making the expanded metal ready for installation. Mounting Systems For Expanded Metal :
- Direct Mounting System
- Spaced Mounting System
- Wing Mounting System

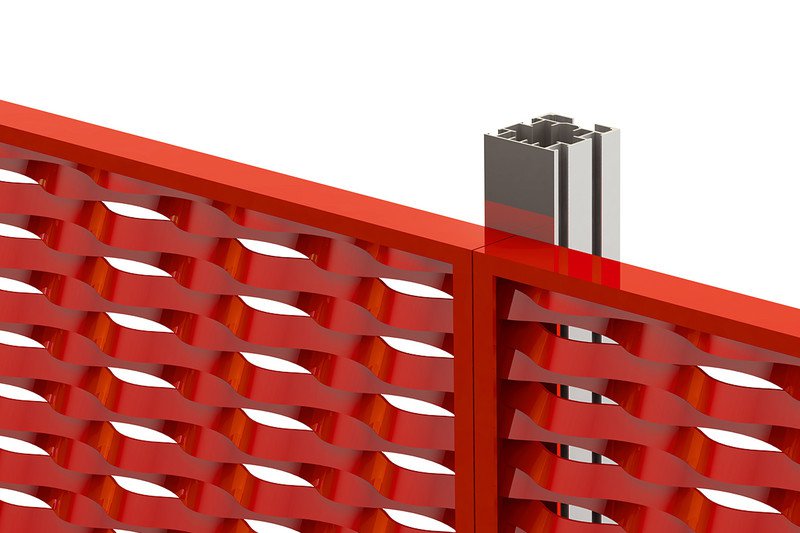

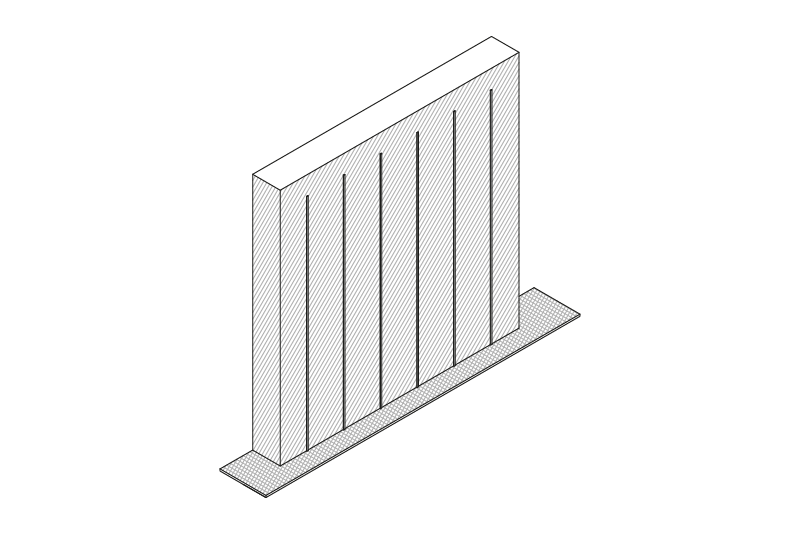

DIRECT MOUNTING SYSTEM
Elf-supporting structure with direct wall fixing.

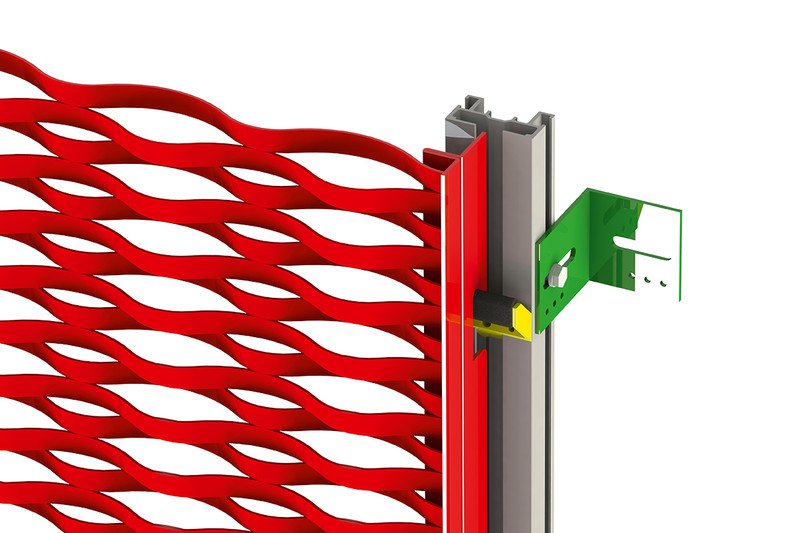

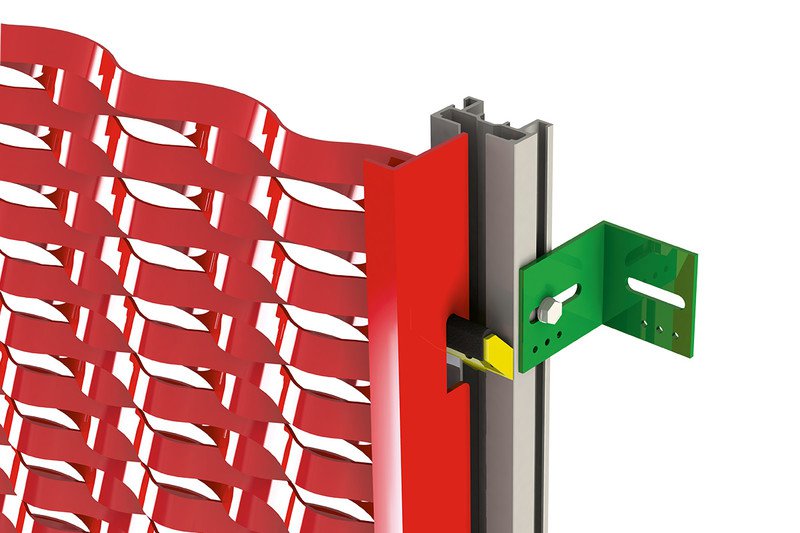

SPACED MOUNTING SYSTEM
Self-supporting structure with precise fixing spaced out from the wall.

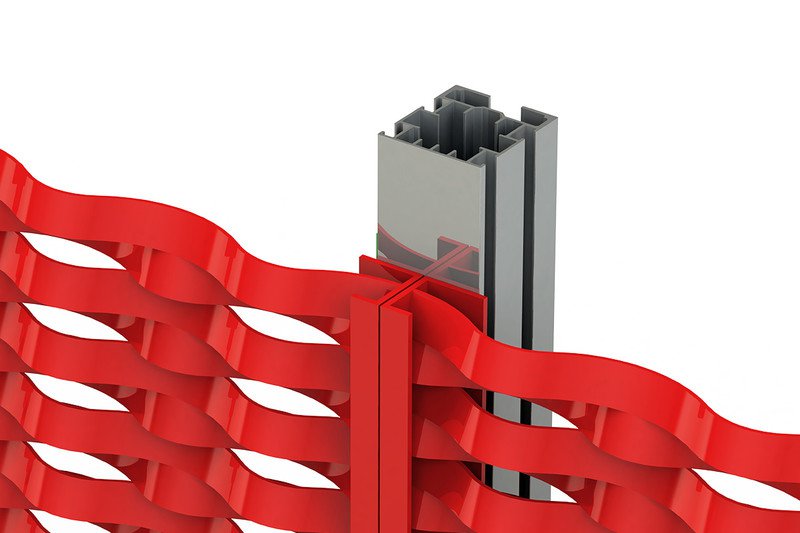

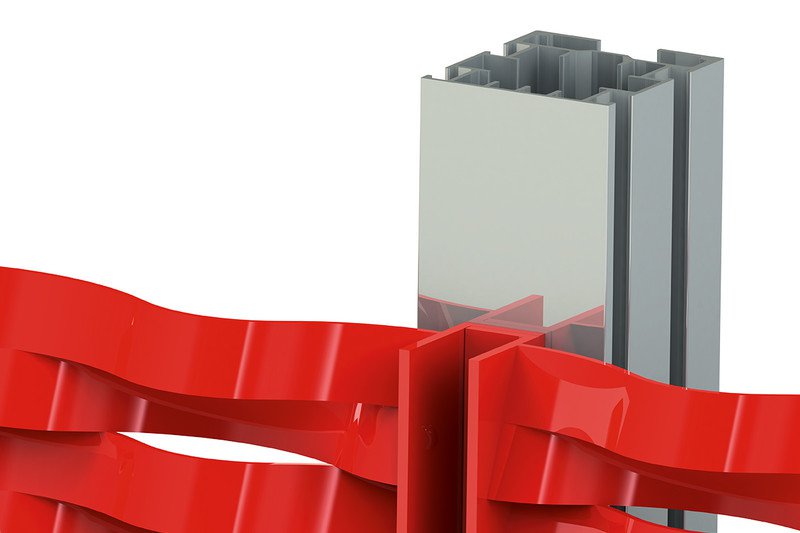

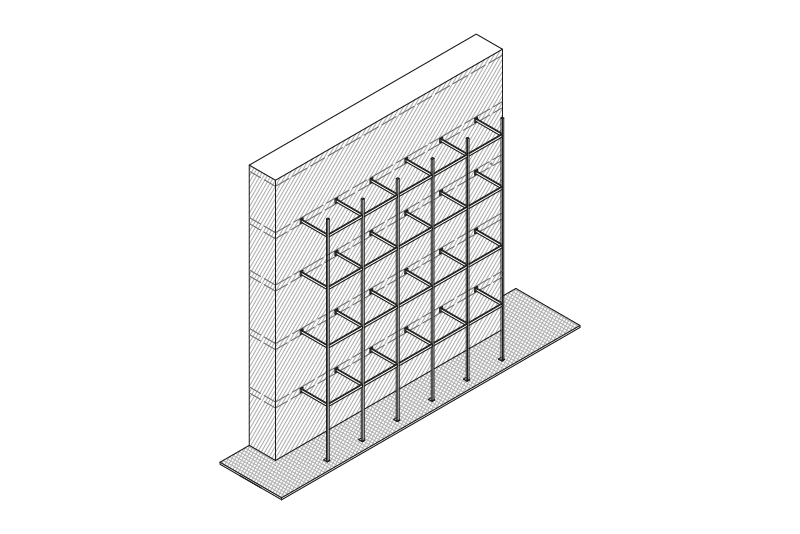

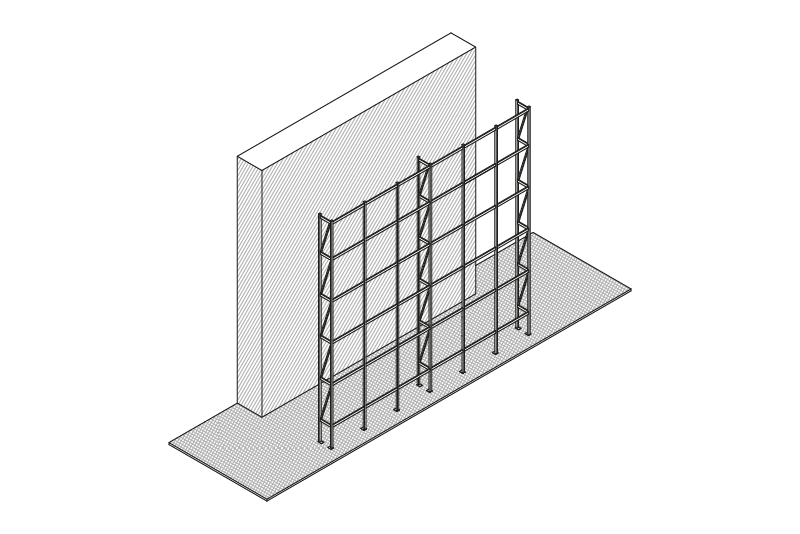

WING MOUNTING SYSTEM
Independent self-supporting structure. (wing)

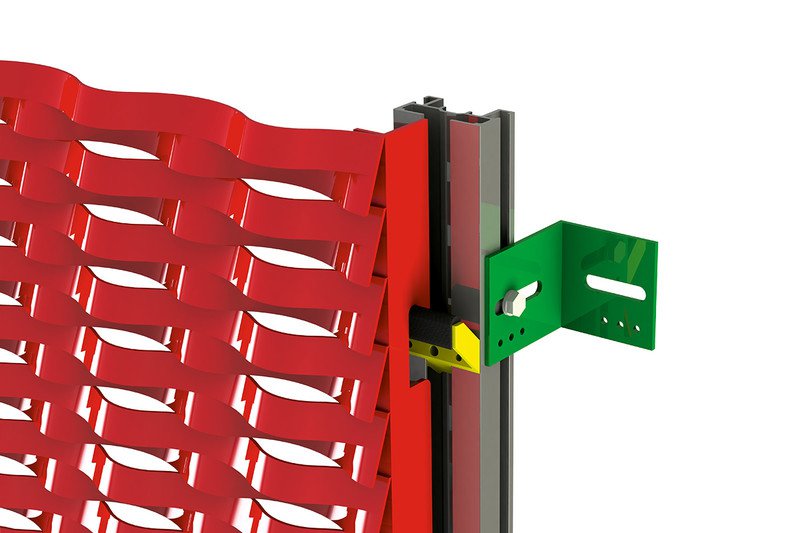

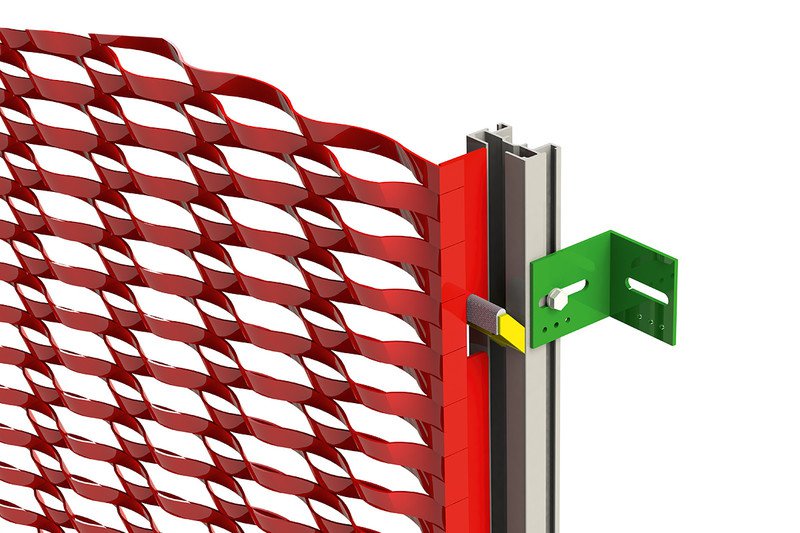

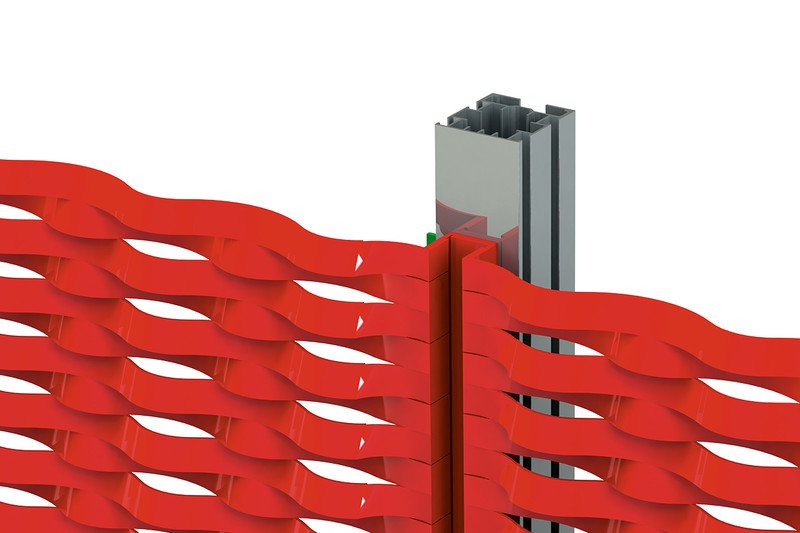

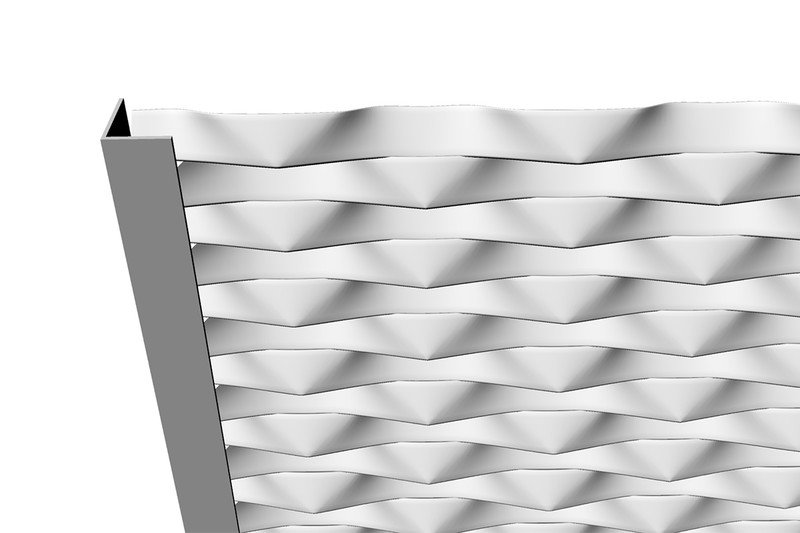

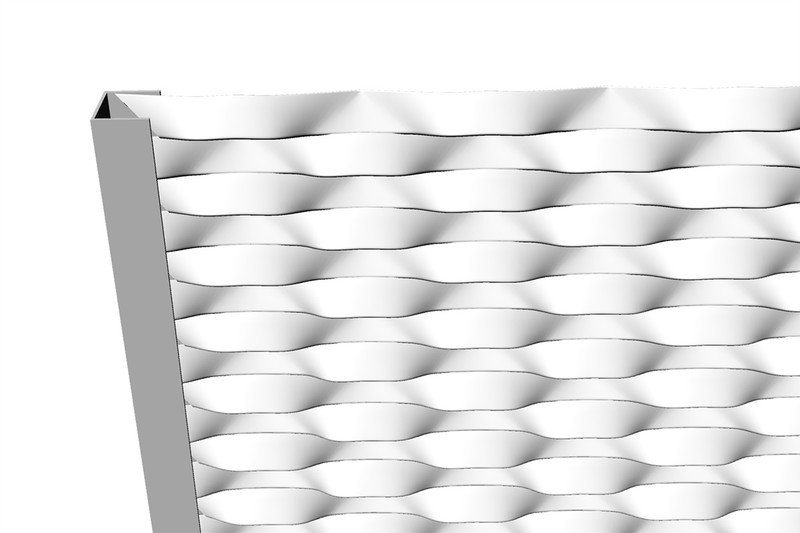

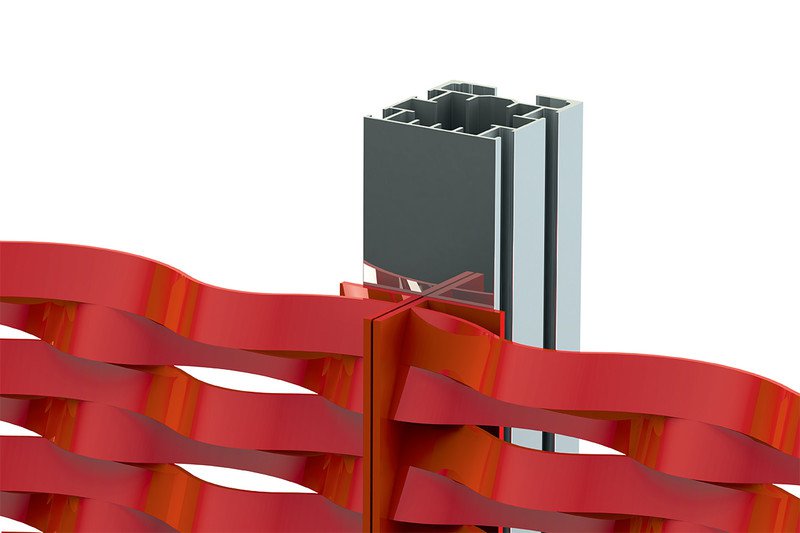

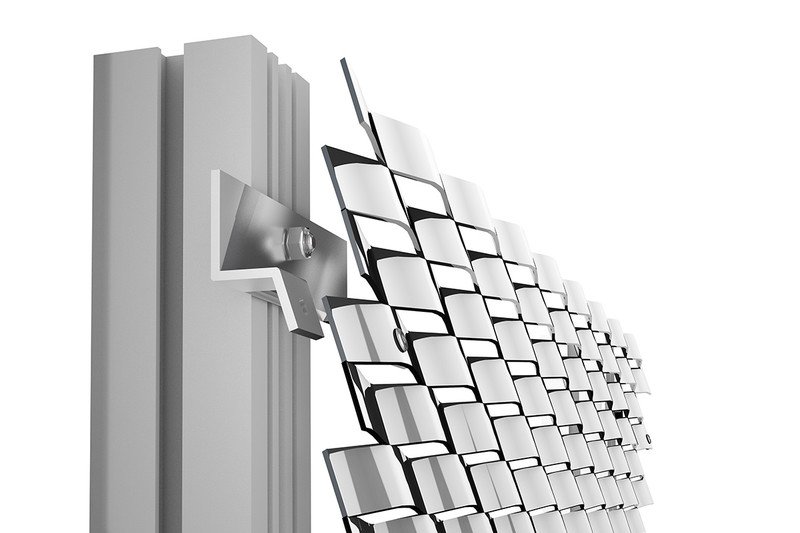

FIXING SYSTEMS
The fixing systems provide a variety of solutions for understructures and framing, making the expanded metal ready for installation.
Fixing Systems For Expanded Metal
