Werkstatt Verolith 3d Façade Elements

3D FAÇADE ELEMENTS

3D FACADE ELEMENTS

StoVerolith : Digital design transferred into façade surfaces

The monolithic, light-weight, perlite-based material Verolith is available as standard architectural profiles or it may be cut using state of the art computer aided manufacturing processes.

This allows existing stone details to be either reproduced or new three dimensional elements, patterns, textures or graphics to be created within the material. Our team will advise on how to create even large scale almost seamless facade elements.

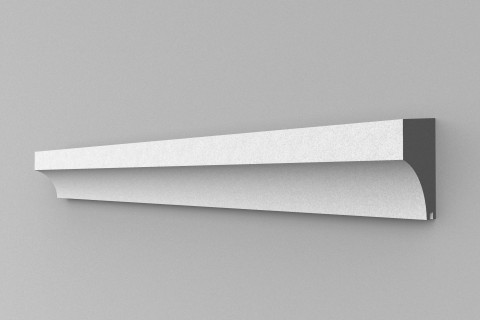

A PORTFOLIO OF STANDARD PROFILES

Used for architctural cornices, architraves, corbels, friezes, pilasters and bespoke profiles for either new or the refurbishment of facades.

information

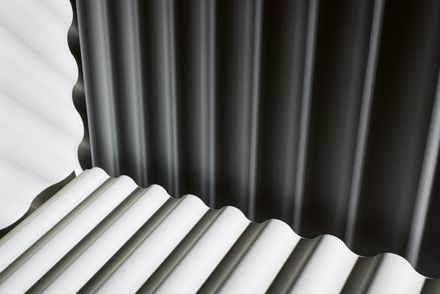

TEXTURE AND SHAPE

Bespoke surfaces, textures & profiles. Using CAD/CAM techniques verolith is cut using a CNC Router—a computer controlled cutting machine—to shape it into any design of form or pattern.

BRAND

Werkstatt

CATEGORY

3D Facade Elements

USE

Facade Elements

THICKNESS

40-200mmst

APPLICATIONS

- Outdoor
- New Projects
- Historical Renovations
- Sculptural Objects
- Moulding And Sills, Panels
- Facade Combinations

CHARACTERISTICS

- 3-dimensional
- Modular
- Large Variety Of Shapes And Panel Types

DOWNLOAD

↓ Standard Profiles and Facade Elements

SIZES

- Special Large Hollow Section
- Bespoke Profile Available Upon Reque

COLOUR AND FINISH

The board joints and fixing points are filled, sanded and finished with a compatible coating from the extensive Sto range of smooth, textured, matt or gloss coatings.

TECHNICAL CONSIDERATIONS

The thickness of the material ranges from 40mm to 200mm or in the case of large profiles, as a hollow section.

TYPOLOGIES AND GEOMETRIES MATERIALS

Perlite forms when the volcanic rock obsidian is exposed to weathering. We use a purely thermal expansion method to turn this raw material into a granulate form of Verolith®.

Using pressure and heat, slab workpieces are produced from this granular material for the StoDeco Elements.

Verolith® slab maximum format:
- 2420x1210x40mm
- 2440x1080x100mm
