TECU® CLASSIC cladding
TECU® CLASSIC RED ROLLED COPPER CLADDING
In The Beginning, The Architecture Grade Material Is Bright Red Rolled Copper.

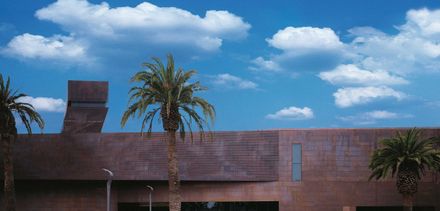

But what follows is an ever-changing spectacle of weather, light and the natural, lively language of the material: After installation on the building, TECU® Classic retains its typical bright red copper colouring for a period of time.
Changes are very gradual and not entirely predictable – just like the weather, which, in turn, is solely responsible for copper’s continual changes.
First, the surface turns matt. Gradually, the material develops an oxide layer to protect it against the effects of weathering.
This process brings with it striking colour variations through an entire range of brown and brown-violet tones, offering varying nuances according to change of light and season.
Ultimately, on the sloping surfaces, the colour process yields a robust green patina – as is typical for copper surfaces. This patina lends the cladding its distinctive character, at the same time providing long-lasting protection for decades to come.
information
PHYSICAL PROPERTIE
- Density : 8.93 g/cm³
- Coefficient Of Expansion : 1.7 mm/m ∆ T 100 K
- Modulus Of Elasticity At 20° C : 132 kN/mm²
BRAND
Kme
THICKNESS
0.70 - 1.00 mm
WIDTH TOLERANCE
0 / + 2 mm
PROOF STRENGTH (RP0.2)
180 - 230 N/mm²
THE LONGER BRIGHT BEAUTY OF COPPER
TECU® Classic_coated is the time-tested TECU® Classic copper in various thicknesses, provided with a transparent 2-layer coating system.
ELONGATION (A50)
≥ 15 %
HARDNESS HV
Max. 90
APPLICABLE WIDTH RANGE
670 mm - 1000 mm
TENSILE STRENGTH (RM)
240 - 285 N/mm²
THICKNESS TOLERANCE
+/- 0.02 mm
CHEMICAL COMPOSITION IN %
| Element | min | max |
|---|---|---|
| Cu | 99.90 | - |
| P | 0.015 | 0.040 |
LENGTH TOLERANCE FOR SHEETS
0 / +10 mm
FLATNESS (TRANSVERSE TO ROLLING DIRECTION)
< 0.2 % of strip width
LONGITUDINAL EDGE STRAIGHTNESS
- Sheets up to 3000 mm : Up to 1 mm per 1000 mm, max. 3 mm for 3000 mm gauge length
- Strips : Up to 1 mm per 1000 mm, max. 5 mm for 5000 mm gauge length
INTERNATIONAL STANDARDS
| International Standards | Symbol | Number |
|---|---|---|
| DIN EN 1172: 2012-02 | Cu-DHP | CW024A |
| UNS* | C 12200 | Unifield Numbering System |
AVAILABILITY
- Coil Inside Diameter Ø - Big Coil : 500 mm, 600 mm
- Sheets : On Request
- Surface : Copper Red Mill Finish With Transparent Coil-coating On One Side
- Temporary Protective Plastic Film : Foliation On The Coated Side
- Product Application : Construction
- Envionmental Product Declaration: Iso 14025 + En 15804
- CE-marked according to EN 14782 / EN 14783 and EU directive 89 / 106 / Eec (CPD)
