MEIJIFOCUS - FIREPLACES
MEIJIFOCUS - FIREPLACES
Central Model, Glazed
From ember to flame, fire takes centre stage.

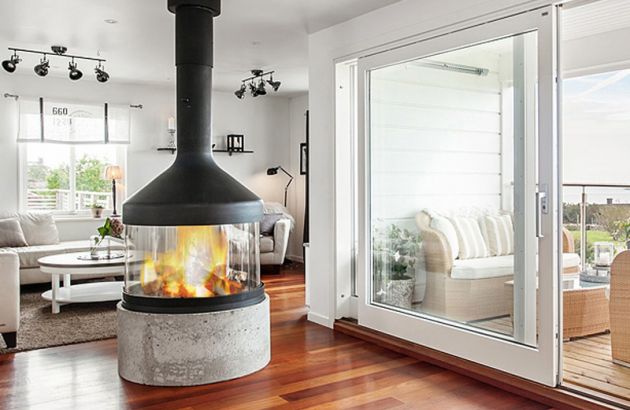

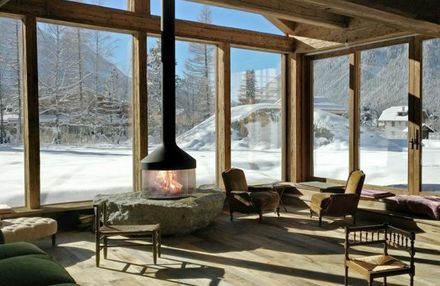

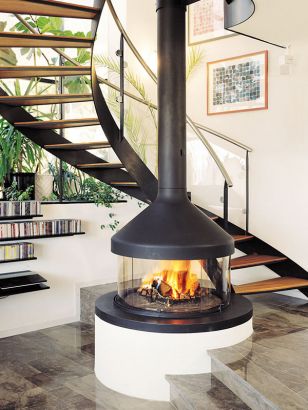

This model can be installed directly on the floor, mounted on a base of black steel or masonry, or placed at the edge of a split level.
The Meijifocus allows the fire to be viewed in complete security, bringing it within reach of our living spaces. The style evokes the clean open spaces of Japanese interiors.
INFORMATION
FUELS
Gas
DOWNLOAD
ā Information Sheet
USE
- Wood
- Gas-burning interior fireplace
FORMAT
- Floor mounted
- Base mounted
PRODUCT TYPE
Fireplaces
PROPERTIES
Energy Efficiency
COLOR
Matt Black
PERFORMANCES
Non applicable
PRODUCTION
Made in France
3D MODEL
CHARACTERISTICS
- Recyclable
- Sliding glass panels
- Can be wood/gas/propane
- Adaption parts made to measure
APPLICATIONS
- Residential
- Commercial
- Hospitality
PIPE CONNECTION
8mm via supplied adapter
FLUE REQUIREMENTS
Class I
MANUAL OPTION
Variable rotary gas control with integrated Piezo Ignition, permanent pilot facility and flame failure safety device
REMOTE OPTION
Variable rotary gas control with integrated Piezo Ignition, permanent pilot facility and flame failure safety device, with appliance mounted eye for remote control via handset. No external power supply required
TECHNICAL DATA
| MODEL | MEIJIFOCUS | |
|---|---|---|
| Gas | Natural G20 / I2H | LPG G31 / I3P / I3BP |
| Heat Input, Gross (kW | 9 | 7,8 |
| Supply Pressure (mbar) | 20 | 37 - 30 |
| Burner Pressure (mbar | 14 | 36 - 28 |
| Gas Rate (m3/h) | 0,89 | 0,31 |
| Injector Marking | 650 | 220 |

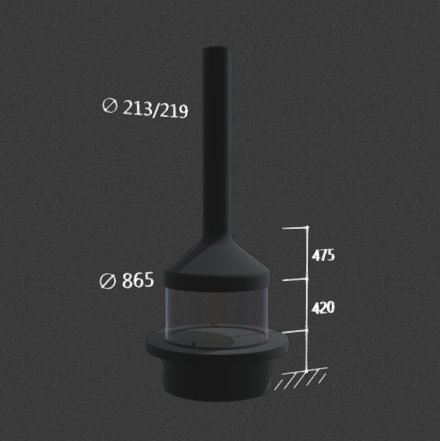

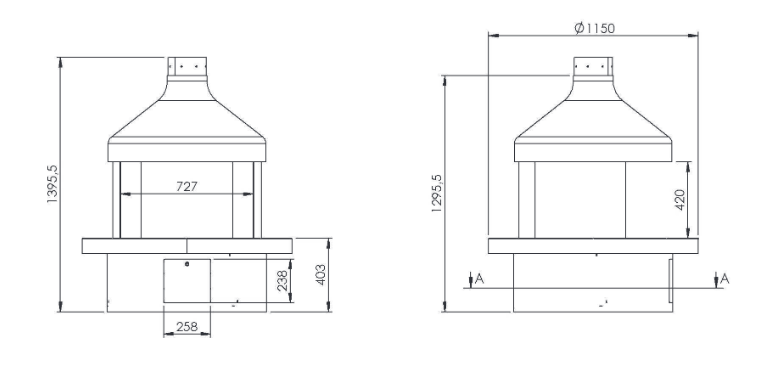

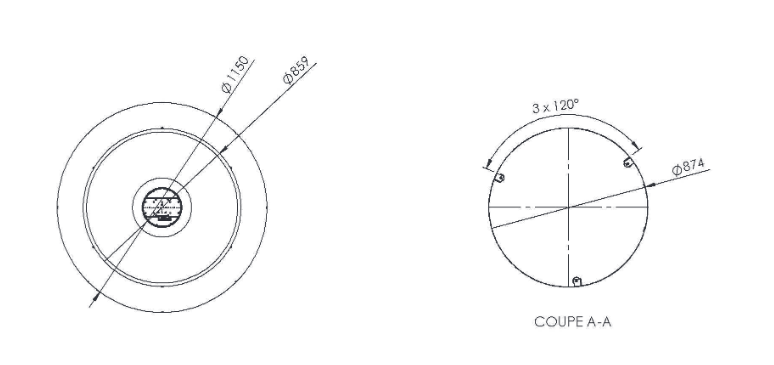

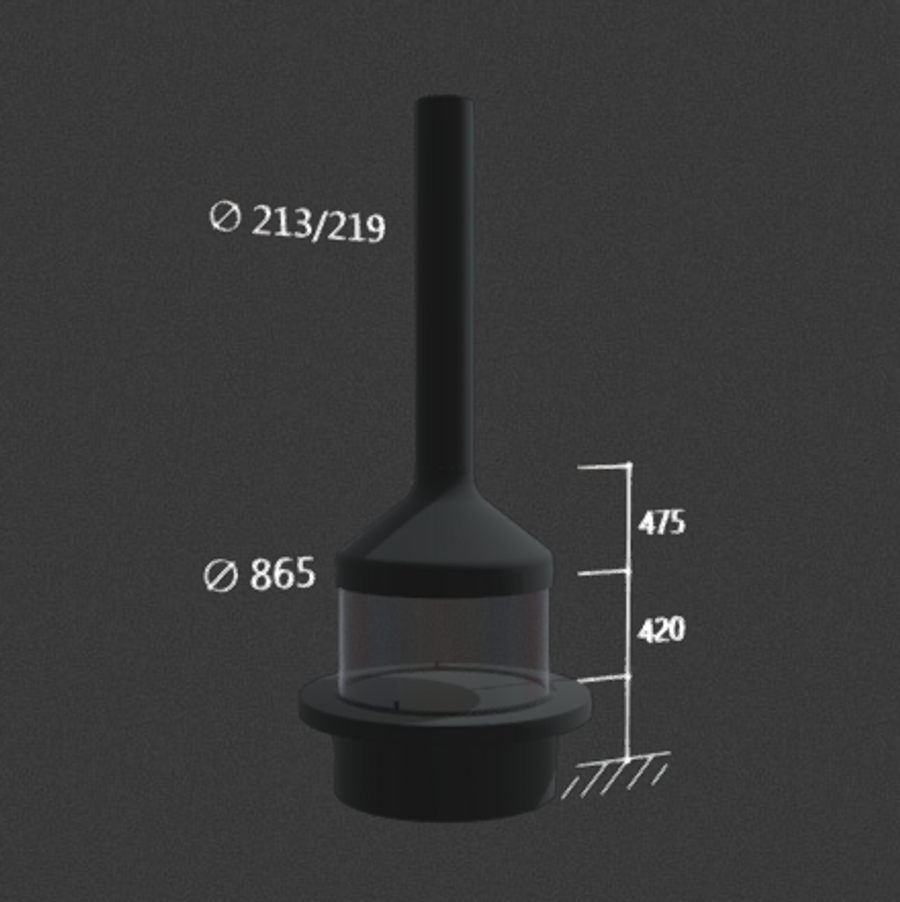

DIMENSIONS

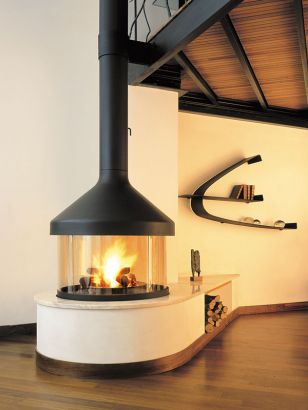

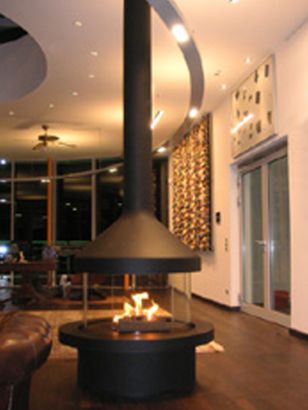

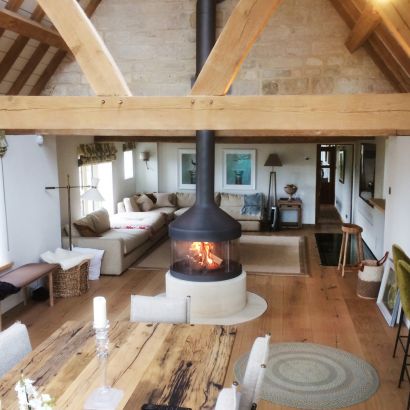

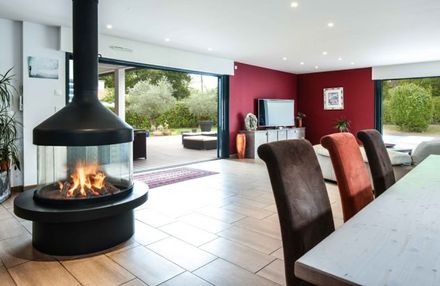

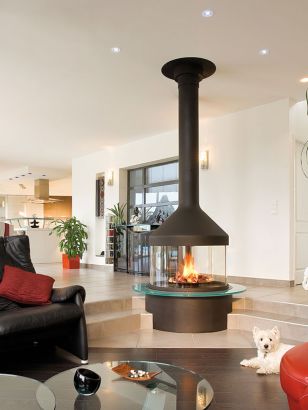

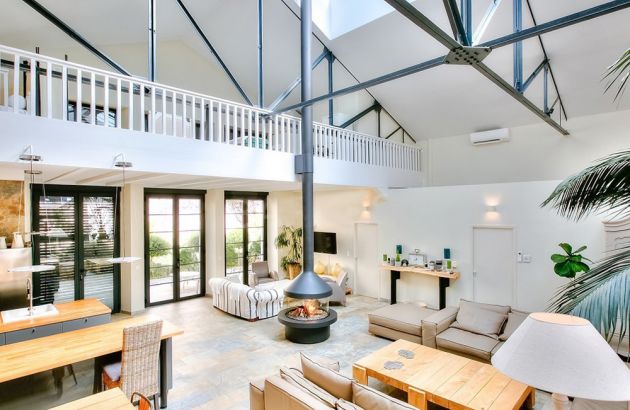

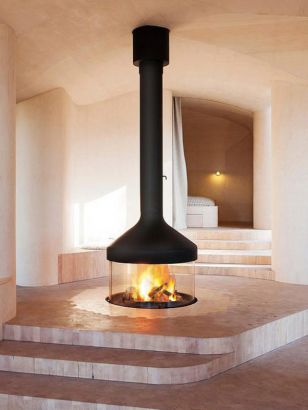

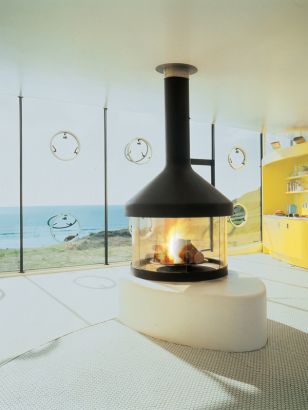

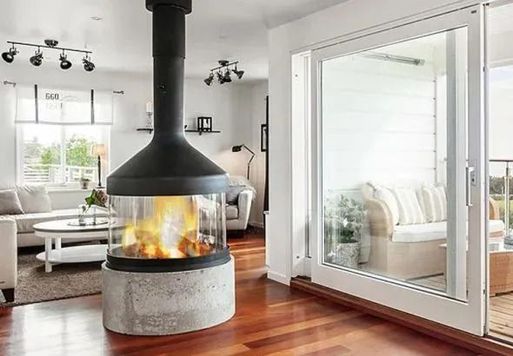

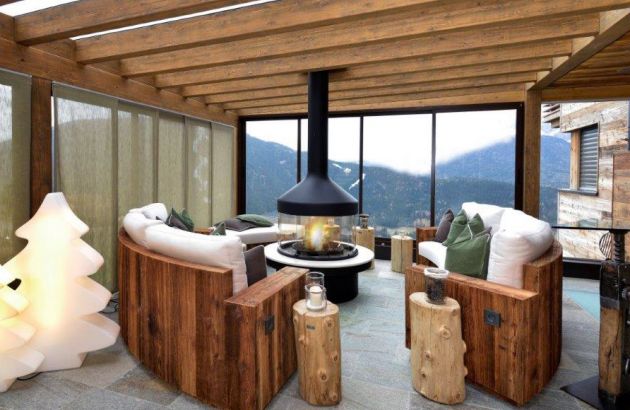

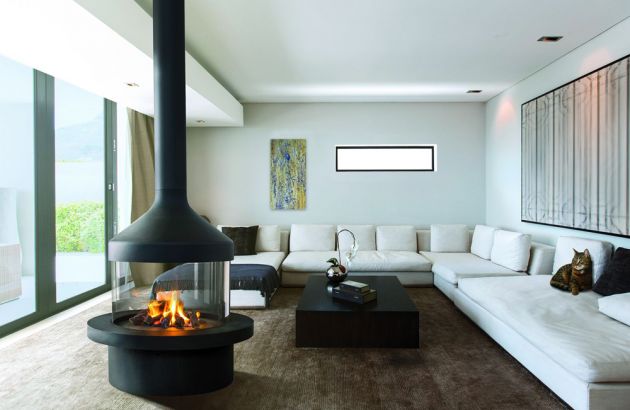

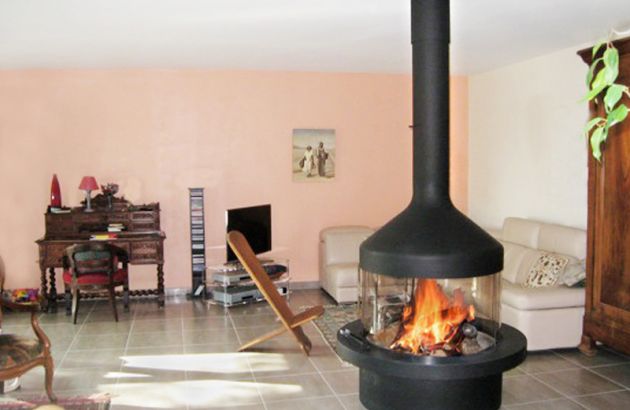

GALLERY
