Commercial Northlight 25-90°
NORTHLIGHT 25-90°
NORTHLIGHT 25-90°
A rooflight series for sloped, shed or saw tooth roofs.
Sloped, shed or saw tooth roof, Flat roofing material, Rooflight installation pitch 25-90°, Opening width in roof min./max. 0.6-3.1 m (for venting modules 0.8-2.5 m)
information
KEY BENEFITS
- Ossibility of upright design
- Prevents glare and lets in a soft light when facing North
- Designed for installation directly in sloped roofs without adding a sub-construction
APPLICATIONS
- Modular Skylight Northlight
- Venting Skylight
USE
- Modular Skylight System
- Roof Window
ADDITIONAL SOLUTIONS
A dual pitched asymmetric Ridgelight with infill panels on one side can be used as a cost-competitive alternative for shed roofs covering large spaces such as warehouses and factories.
CHARACTERISTICS
- Design Permits Installations Up To 90° Pitch
- Using Fixed As Well As Venting Skylights
- Galvanized Steel Bracket System And Prefabricated Modular Flashing With Integrated Insulation That Ensures A 100% Waterproof Installation
PERFORMANCE

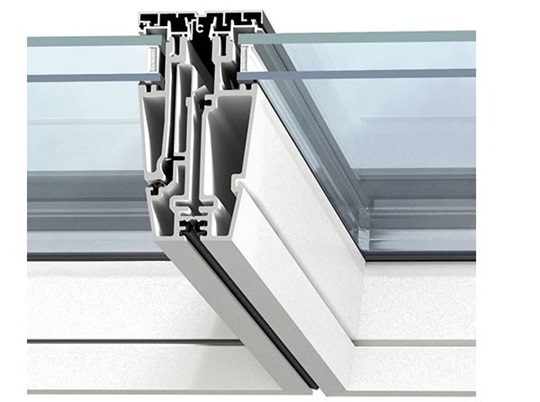

The VELUX Modular Skylight profiles (sash and frame) are made of pultruded fiberglass (80%) and polyurethane composite (20%). The composite material provides high insulation performance and thermal stability as well as excellent profile stiffness and bending strength.
-Due to the concept of prefabrication, we are able to test our products extensively against all thinkable hazards and stressful events. Tests are performed in controlled environments in accordance with harmonized standards for both Windows and doors and for Smoke and Heat control systems. -In combination with low energy glazing units, the modular skyligths are able to achieve one of the lowest overall U-values for frame and glazing assembly in the skylight market (Uw values down to 0.86 W(m2/K)).
DETAILS

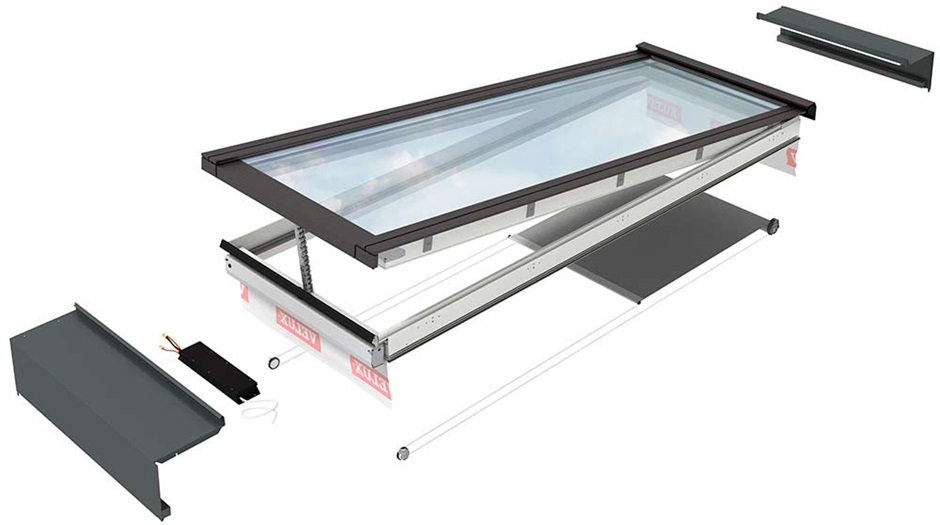

VELUX Modular Skylight system is a turnkey solution comprising prefabricated skylight modules with dedicated claddings, flashings and vapour barrier connection strip to allow for design of watertight rooflight and glass roof structures.
Comfort ventilation is possible via an integrated chain actuator that can be controlled with VELUX INTEGRA® system or with your preferred building management system. Smoke ventilation can only be controlled with your preferred building management system.
IN SHORT

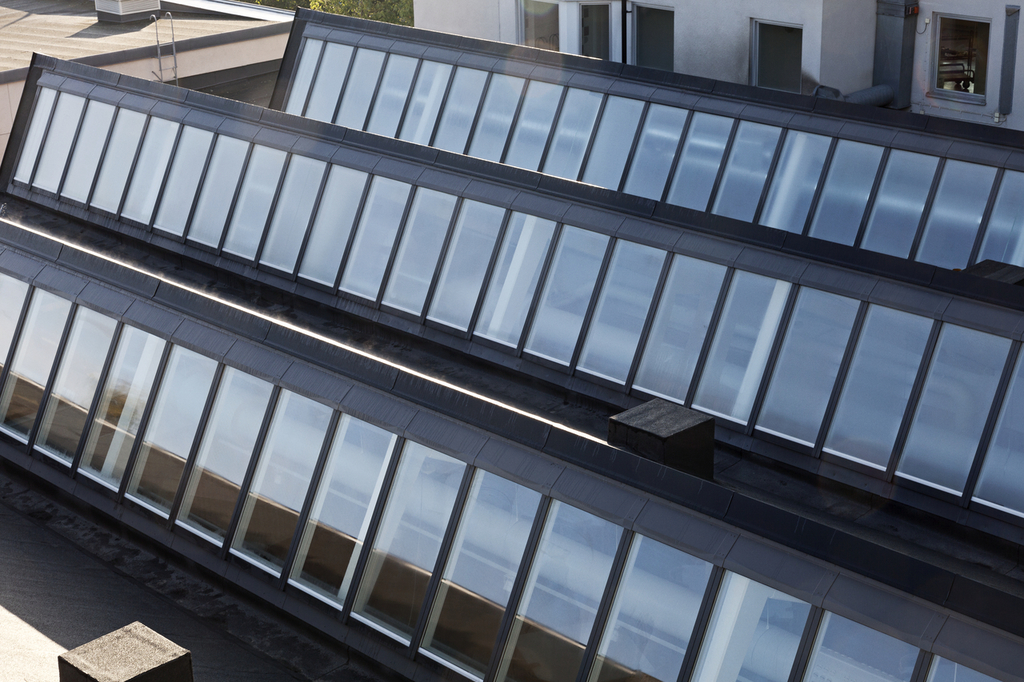

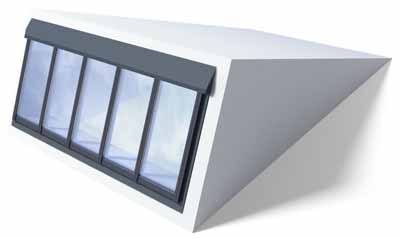

- Northlights are rows of modules installed up to 90° in order to provide large amounts of glare-free daylight, ideal for spaces that require soft light for optimum indoor conditions, e.g. at schools, offices, museums and galleries.
-The Northlight solution does not require a sub-construction for installation and can be integrated into a sloped roof. -The modular Northlights allow fast and easy closure of the roof to reduce costs and make room for the interior works -VELUX Modular Skylights are delivered with a 10-year guarantee on modules and flashings. -VELUX skylight specialists offer support throughout design, specification and installation, including design of the sub-construction needed for installation.
GLAZING

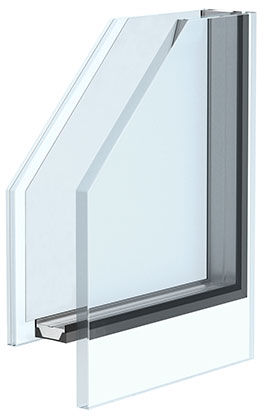

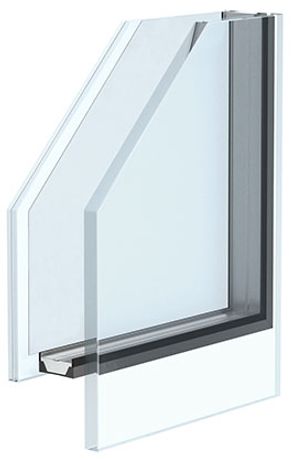

VELUX Modular Skylights come with standard low-energy double or triple glazing with the following features :
- Insulated glazing (Ug values down to 0.5 W/m²K)
- Toughened outer glass
- Laminated inner safety glass
- Falling through safety
- Sound insulation (traffic, rain and hail)
- Warm edge spacer (protects insulation properties over time and minimizes the risk of condensation at pane edges)
- Step pane (leads water off the unit)
- Sun protection coating (optional)
FUNCTIONS
FUNCTIONS AND SIZES
VELUX Modular Skylights are available in a wide range of standard sizes and functionalities:

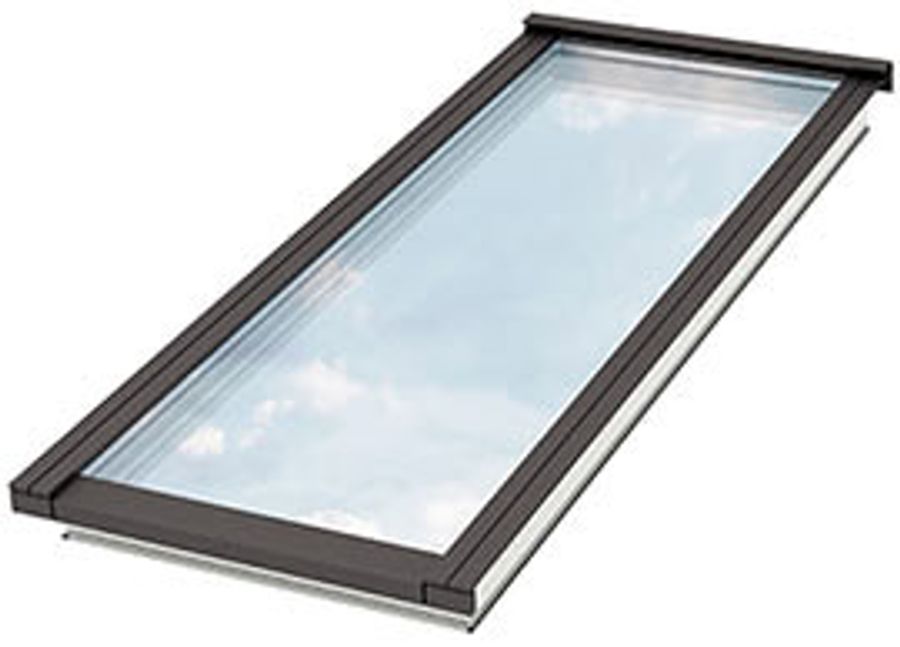

- Fixed skylight module Module width: 675-1000 mm

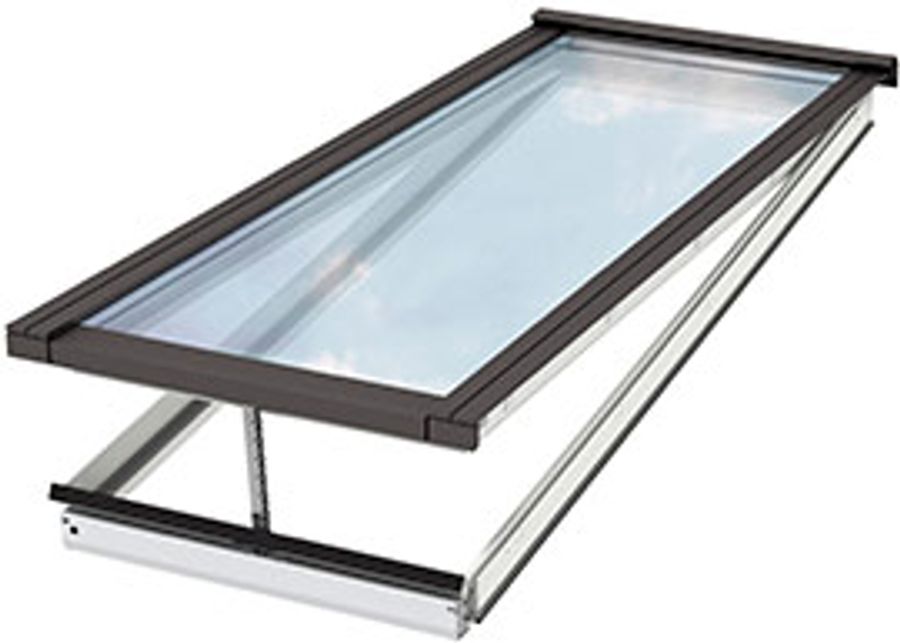

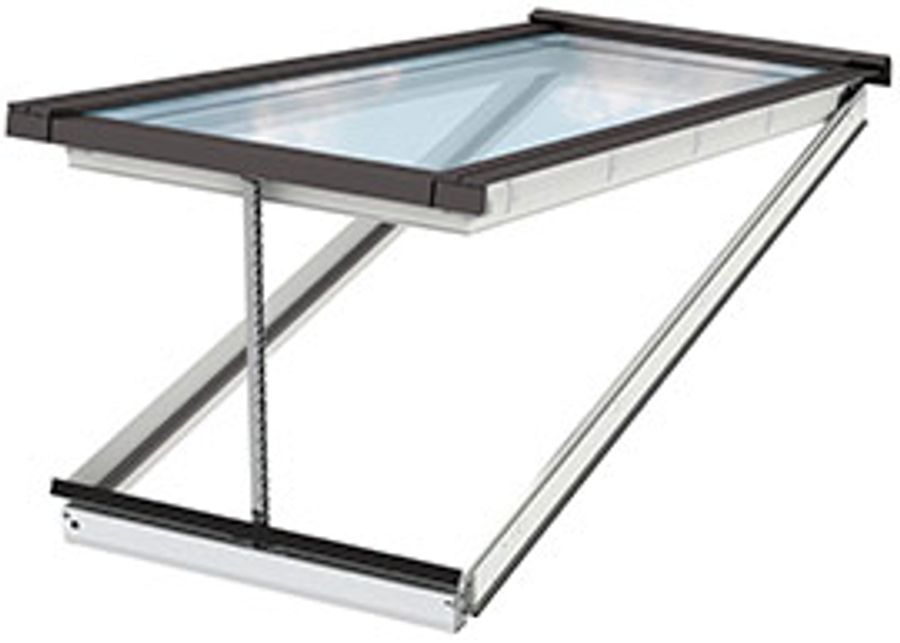

- Motorized comfort venting skylight module. Actuator chain stroke 260 mm. Module height: 600-3000 mm
- Motorized smoke venting skylight module. Actuator chain stroke up to 700 mm, which opens in less than 60 seconds.
INSTALLATION
VELUX comfort venting Modular Skylights meet the requirements of the harmonised standard EN 60335-2-103 (2015). Therefore, comfort venting skylights can be installed within reach, i.e. at installation heights below 2.5 m above floor level (inside) and ground level (outside). We recommend that you observe national regulations and consider if the planned specific use of the building requires additional safety measures that must be applied by the installer/user to prevent serious injury. For more details and information on smoke venting Modular Skylights, please refer to the Technical Handbook and the safety guidelines delivered with each product. If VELUX roller blinds are installed, please observe recommendations.
SIZES
See size possibilities for fixed, comfort and smoke venting modules.
MODULAR SKYLIGHTS
- Module width: 675-1000 mm
- Module height: 600-3000 mm
