Translucent Wall & Roof Assemblies
Our rainscreen + cladding system offers an effective solution for enclosing non-conditioned spaces.
The single panel design uses Nano-Cell® technology to provide durability and impact resistance plus balanced distribution of natural light.
The system helps modernize building exteriors or hide mechanical structures with a standing seam or flush appearance that allows for graphics and backlighting. It’s a great tool for creating eye-catching light boxes that highlight an entryway or public space.
BEAUTIFUL AND CONCEALING

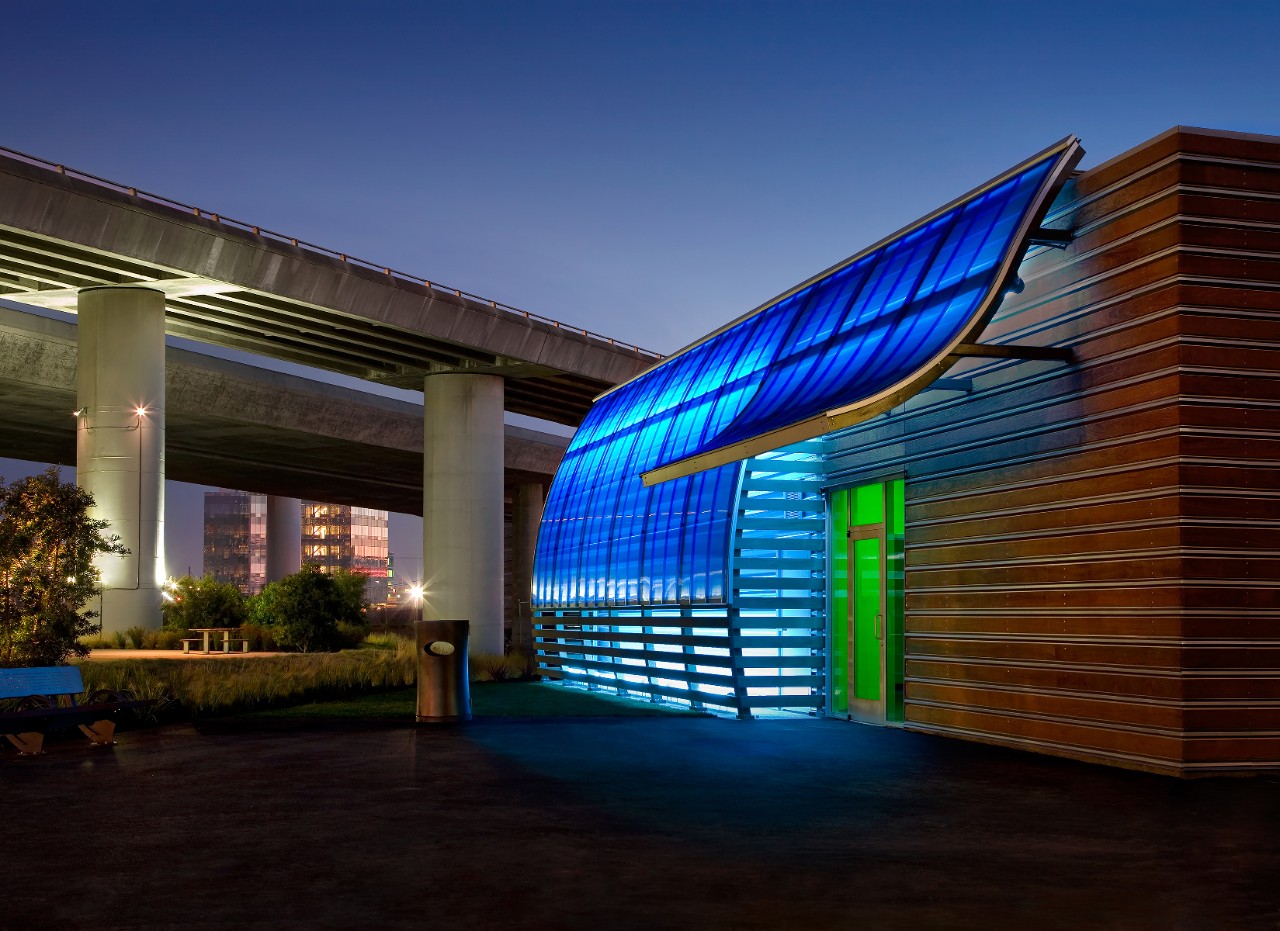

ADD BACKLIGHTING FOR DRAMATIC EFFECT
Lighting the panels from behind can add impact to a project or call out an entryway.
BLEND IN TO THE SURROUNDINGS
Cladding and rainscreen solutions from Kingspan Light + Air are versatile and eye-catching design tools.
MAKE A STATEMENT
Conceal machinery or add graphics to echo the project's surroundings.
information
PANEL WEIGHT
- 12 mm = 0.53 lb/ft2
- 16 mm = 0.70 lb/ft2
LENGTH
Up to 40 ft long
WIDTH
2 ft nominal (23 5/8 in) (600 mm)
PANEL JOINT
Mechanically interlocking double-tooth connection
THICKNESS
- 10 mm
- 12 mm
- 16 mm
GENERAL DIMENSIONS
- Thickness : 10 mm, 12 mm, or 16 mm
- Width : 2 ft nominal (23 5/8 in) (600 mm)
- Length : Up to 40 ft long
- Panel Weight : 12 mm = 0.53 lb/ft2 | 16 mm = 0.70 lb/ft2
COLOR OPTIONS
- Standard - clear
- White
- Ice white
- Blue
- Green
- Bronze
- Refl. gray
FEATURES
- A : Pentaglas® glazing panel
- B : Double-tooth panel connector
- C : Stainless steel panel clip
- D : Aluminum purlin substructure
- E : Aluminum framing system
GLAZING
Pentaglas® translucent polycarbonate panel with Nano-Cell® extrusion
DOUBLE-TOOTH CONNECTION
The double-tooth edge on the upstands of the glazing panels enables the system to withstand extremely high loads without concern for the panels disengaging. As the panels deflect, their grip on the u-shaped panel connector actually strengthens, ensuring long-term performance under loading conditions.
BASE OPTIONS
- Panel Joint : Mechanically interlocking double-tooth connection
- Color Options : Standard - Clear, White, Ice White, Blue, Green, Bronze, Reflective Gray
- Note : all colors are available with a matte finish upon request - consult for other available color options
GLAZING EXTRUSION
Our Pentaglas® translucent glazing is precision engineered with Nano-Cell® technology. This specialized panel extrusion results in the cells measuring smaller than 0.18 inches, providing the panel with superior durability and prolonged resistance to impact. The unique cell structure significantly improves the quality and balanced distribution of glare-free natural light. Pentaglas glazing panels are co-extruded with a specialized UV inhibitor on both sides of the panel.
PRODUCT HIGHLIGHTS
-Nano-Cell® technology uses cells measuring smaller than 0.18 inches to provide superior durability -Glazing panels are co-extruded with a specialized UV inhibitor for long-term performance -Polycarbonate glazing panels feature a double-tooth connection for superior loading capabilities -Stainless steel panel clips with aluminum purlin substructure and aluminum framing system provide additional strength - Can be designed to meet hurricane standards -Creates space for signage or applied graphics either internally or externally -Backlighting opportunities allow for “light box” designs that can draw in customers or highlight building features -Lightweight and easy to install
CERTIFICATION AND TEST RESULTS
-Code Compliance, IBC ICC -ES report - ESR-1253 - Complies as specifically detailed in the ESR-1253 report -Uniform Load Structural / Span ASTM E330 (Contact us for job specific span capabilities) -Cyclic Test ASTM E1886 Pass- 100 psf, Wind Zone 4 -Large Missile Impact ASTM E1996/E 1886 Pass - Missile Impact Level D, Wind Zone 4 -FBC 2014, TAS 201 Pass - Missile Impact Level D, 354 lbf-ft -High Velocity Hurricane Zone (HVHZ) TAS 201, 2012, 203 FL16751 - Approved for design load of +192.5 / -175 psf using U2 batten. Higher loads or larger spans are available. (Contact us for job specific span capabilities) -Fire ASTM E1929, D2843, D635 Approved light transmitting plastic with CC1 Rating -Interior Flame Spread ASTM E84, CAN/ULC, S102.2-M88 Class A Rating
