Uponor Full Electronic Heat Interface Unit Combi Port E
HEAT INTERFACE UNIT COMBI PORT E
FULL ELECTRONIC HEAT INTERFACE UNIT COMBI PORT E
As our first full electronic heat interface unit, the Combi Port E with an intelligent control automatically adapts to all requirements. Designed as a complete solution, it takes convenience, hygiene and energy efficiency to a new level.
Combi Port E revolutionises complete systems for prefabricated building projects. With adaptive heating, it ensures maximum convenience, minimises energy consumption with the Eco mode and prevents the drinking water from becoming contaminated due to its hygienic design.
information
COMPREHENSIVE PORTFOLIO
Combi Port E is available in 2 output sizes of 20 l/min and 25 l/min (PWH 50°C and flow temp. 65°C) both with copper-soldered heat exchangers or as VacInox version.
APPLICATION AREAS
- Up To 16 Bar Operating Pressure
- Underfloor Heating
COMPONENTS
1. Valve
2. Adapters for water meter
3. Cold water dirt collector
4. Cold water home outlet
5. Servo motor
6. Bypass valve
7. Injection for underfloor heating
8. Heat meter adapter
9. Primary dirt collector
10. Draining
11. Second unmixed heating circuit
12. EPP housing
SIZES
Output sizes : 20 l/min, 25 l/min
USE
Electronic Heat Interface Unit
CHARACTERISTICS
- Smart Control
-Reduces Energy Consumption
START WITH AUGMENTED REALITY EXPERIENCE
Get to know Combi Port E in the new 3D dimension
Follow the steps below and get a glimpse into the future:
1. Scan the QR code with your smartphone or tablet
2. Click on "Start" or AR symbol (on the right hand side of the product image)
3. Place the product on any surface, zoom in and out, move it around
SIMPLE OPERATION AND VISUALISATION WITH THE COMBI PORT E APP
Advantages of the app
- Well-laid out and large display
- Live display of all values (volume flow, temperature)
- App works offline
- Interface to the Combi Port E controller
- Commissioning assistant and protocol can be sent by email
- Settings of a Combi Port E can be copied to other devices

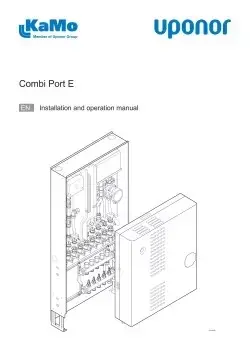

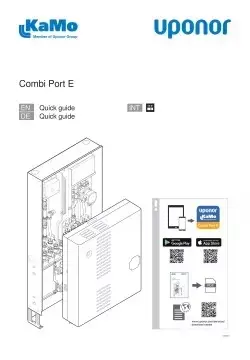

LOOK UP OR DOWNLOAD BROCHURES FOR UPONOR COMBI PORT E
functions
INDIVIDUAL HOT WATER CONVENIENCE
- Detection of daily individual processes
- Adaptive hot water control
- Fast response times
ADAPTIVE HEATING
- Real-time response to current heating requirements
- Precise control of flow and return temperature
- Energy savings and increased convenience
HYGIENIC DESIGN
- Unique design with a separation of sanitary and heating pipes
- Reduction of heat transfer by means of integrated insulation
- Complete separation of the heat exchanger
ECO MODE
- Energy and cost savings thanks to Eco mode function
- Self-learning algorithm for Eco mode and energy flow switch off
