Fastmount Pc-01 Standard Clip Set
PC-01 STANDARD CLIP SET

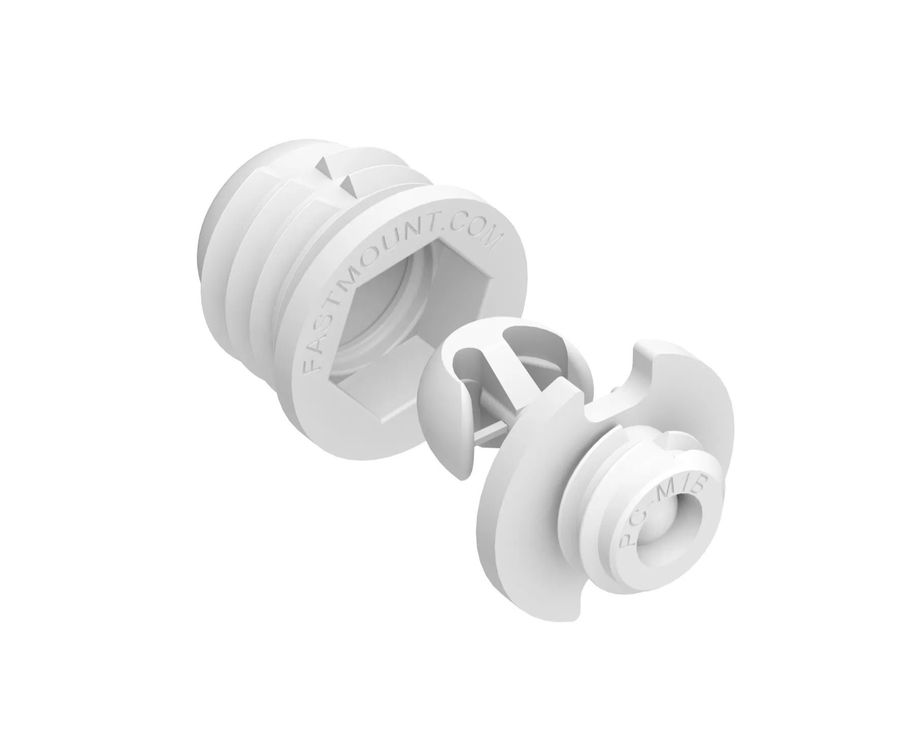

PC-01 STANDARD CLIP SET = PC-M1B + PC-F1A
The self-tapping male PC-M1B is a versatile clip that works with all female clips in the Standard Range, and is suitable for various panel mounting applications. .
With a 5kg pull out load, the PC-M1B is suitable for small and medium weight wall panels. Refer to Panel Offset Guide for gap between substrate and panel, pull out and shear loads
information
BRAND
Fastmount
APPLICATIONS
Architectural
MATERIAL
White Acetal Copolymer
CATEGORY
Standard Range
USE WITH
- Pc-f1a
- Pc-rf1
- Pc-sf1
- Pc-af1
BENEFITS
- Self-aligning installation without adhesives
- Perfect panel alignment secure mounting every time
- Remove and refit panels in any sequence 100+ times
- Saves time and reduces cost
- Allows for flexing and expansion of panel and support frame materials
- 5kg pull out load
APPLICATIONS
- Covered or painted panels with minimum 8mm thickness
- Ceiling and wall panels
- Refits and upgrades of existing installation
- Variety of substrates
MORE INFO
- Installation Guide PC-F1A, SF1, RF1 - Clip Layout Guide TD-02, 09, 12 - Panel Offset Guide
COMPATIBLE WITH
INSTALLATION
Partially exploded through section showing typical installation method
