Secco Sistemi ØG Zero Gravity Lift And Slide
ØG ZERO GRAVITY LIFT AND SLIDE
ØG ZERO GRAVITY LIFT AND SLIDE WINDOW AND DOOR SYSTEMS
Passive Magnetic Levitation System
0G® [zerø gravity] is the lift and slide option which adopts the principle of passive magnetic levitation for the movement of doors.
The frame, lifted up by powerful Ironlev® magnets slides, floating over a small track, without noise, without friction and without the need for electricity. With its technology, 0G® allows you to manually open and close large sliding doors with weights of up to 1000 Kg.
The system consists of a floor mounted levitation unit that contains the sliding rail, the magnetic skids and the beam connecting to the door and is accessible for maintenance through movable roof profiles that can have, in their visible surface, the same finishes as the floors, for perfect continuity between the interior and exterior of the building.
Only an 8.5 mm gap, closed by brushes, remains visible in the floor as the door slides open, without any protrusion and, therefore, no chance of tripping.
In the upper part of the ØG sash, mechanisms are provided in order to counteract the lifting thrust of the magnets and lower the panel, ensuring tightness and closure. The system does not require electricity, it works manually even with significant weights, over 1000 kg.
INFORMATION
BRAND
Secco Sistemi
PRODUCTION
Made in Italy
APPLICATIONS
- Residential
- Commercial
CHARACTERISTICS
- Sustainability
- Choice of materials
- Thermal break
APPLICATION AND USE
- Exterior
- Outdoor
USE
Doors: lift-and-slide
SIZES
Visible sections: 69-94mm
DOWNLOADS
↓ Projects
↓ Commercial catalogue
GLAZING BEAD
The small profiles placed in front of the glass to fix it are also design elements of the frame and are produced in the same finishes as the frame

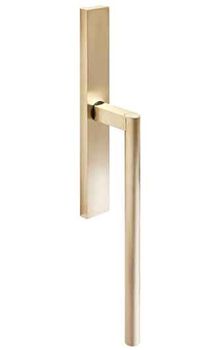

HANDLES
Discrete, geometric, minimal and in the same finishes as the frame, the handles integrate perfectly into the frame:
- Vitruvio Tonda brass
- Vitruvio Tronca stainless steel brass
DOOR LIFT AND SLIDE
| EN 14351-1:2016 | Maximum Certified Performance | |
|---|---|---|
| EN 12207 | Air Permeability | 4 |
| EN 12208 | Water Tightness | 9A |
| EN 12210 | Wind Load Resistance | B3 |
TECHNICAL DRAWING
Lift & Slide
MATERIALS
ØG is also available in 4 precious metals in the Bi-material combination, combining two different materials between the interior and the exterior
VIDEOS
