VENEERED WOOD GRILL CEILINGS & WALLS
VENEERED WOOD GRILL CEILINGS & WALLS

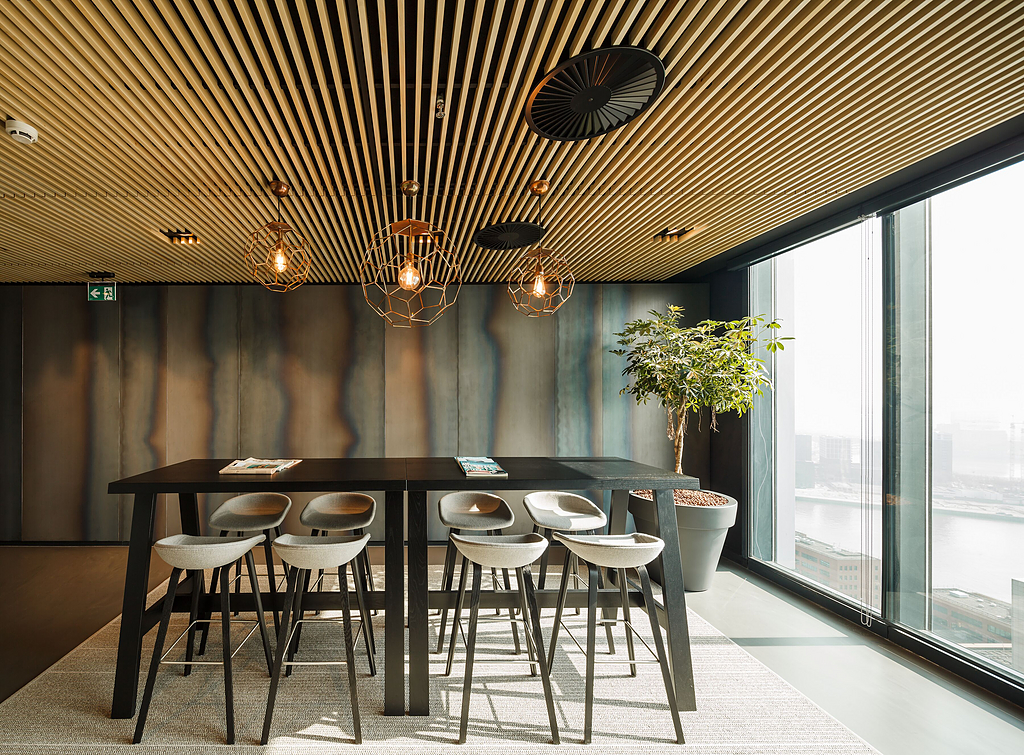

The Veneered Wooden Grill system consists of wooden slats that are secured to each other with an aluminum dowel. These assembled slats form the grill panel, which can be produced in various lengths and widths.
A wide range of wood veneers is available, all with their own characteristics. The system is easy to install and allows the ceiling to be demountable and provides easy access to the plenum. Due to the freedom of choosing your own grill dimensions, a unique ceiling or wall can be created.
Veneered Wood Grills are an environmental friendly building product with endless possibilities. The wood is used efficiently in the production of veneer, as modern production methods ensure that around 800-1000 m2 of veneer can be produced from 1 m3 of wood. The advantage of the system is that it is a made-to-measure solution, meaning no cutting adjustments are required at site, significantly reducing the installation time and cost.
INFORMATION
BRAND
Hunter Douglas Architectural
PRODUCT TYPE
SIZES
Standard: 12″ x 8′ | <10′ custom lengths
APPLICATION AND USE IN CONSTRUCTION
Walls, Ceiling, Interior
CERTIFICATION
Fire Rating: Class A, may contribute to LEED® credits
PRODUCTION
Made in European
COLLECTION
Veneered
APPLICATION

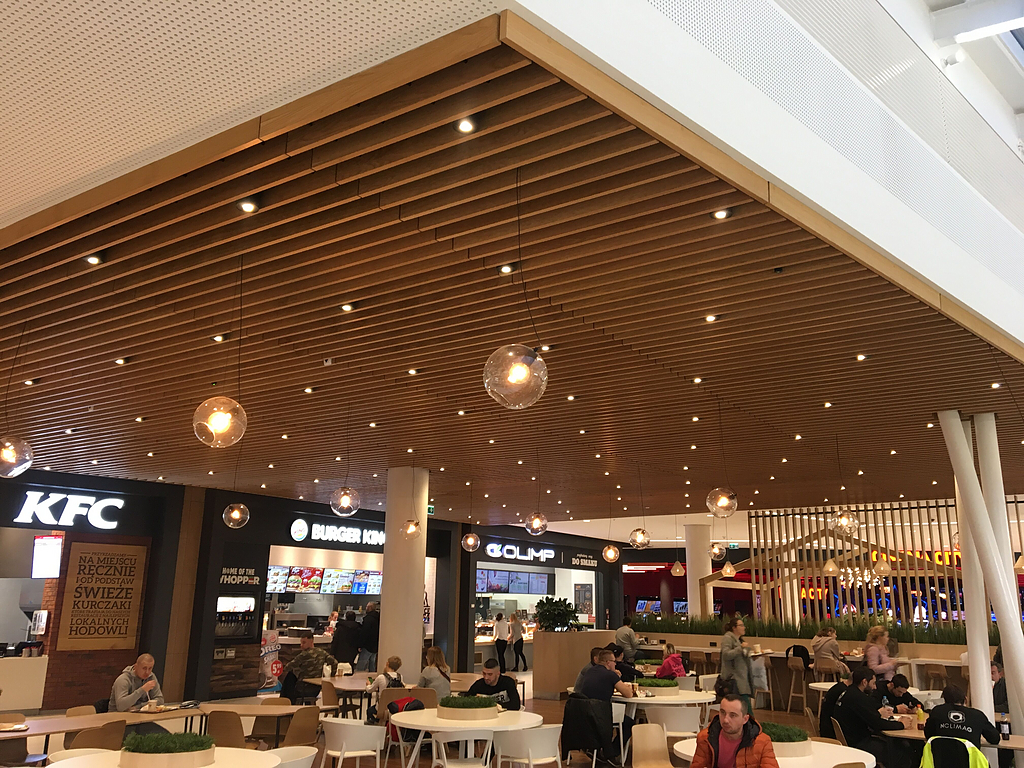

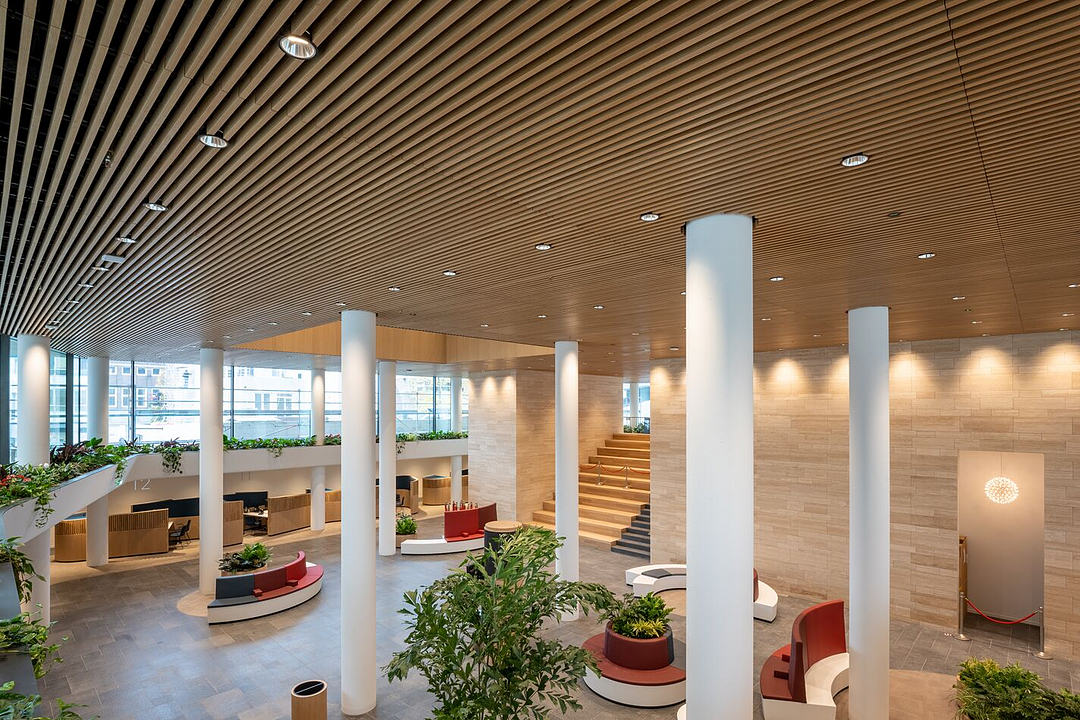

The Veneered Wood Grills are suitable for all building sectors: Corporate, Transport (airports, metro-, bus -, train stations), Retail, Leisure, Public spaces, Hospitality, Healthcare, Education or Residential.
NATURAL FLEXIBILITY
Veneered Wood Grills give you the freedom to make a natural looking wall or ceiling design. The look of the wood grills is created by a careful selection of the species type, colour and structure. The natural growth patterns of each tree can be clearly seen in the veneer, including natural characteristics such as knots and outgrowth. Once the veneer is chosen, the panels will be produced according to the lay out plan to ensure a perfect fit.
MATERIAL
Wood-based panels
USE
Interior walls and ceilings
CHARACTERISTICS
- Made to measure solutions, produced as per project dimensions and requirements
- Possibility to use large grills up to 150mm height, other sizes upon request
- High acoustic performance with or without rock wool
- Reaction to fire classification B-s2,d0 according to EN 13501-1, other classifications upon request
- Budget and design flexibility due to freedom in slat size and gap
- An all-natural and sustainable wooden ceilings solution with FSC/PEFC certification
VENEER MATCHING
The veneer sheets, with a width of 10-25 cm, are mis-matched and glued to form panels. Upon request it is also possible to slip-match or book-match sheets. Depending on how the veneers are matched, a significant design is created

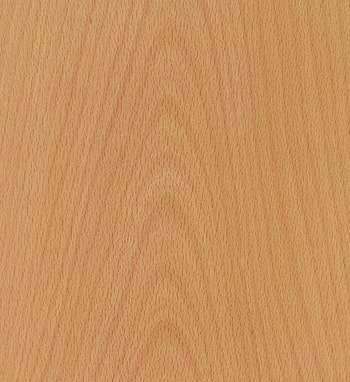

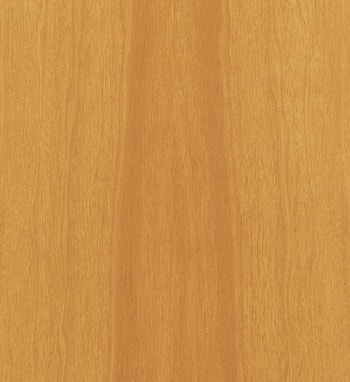

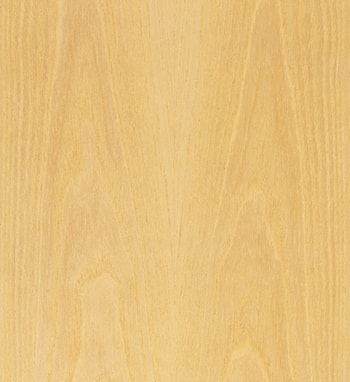

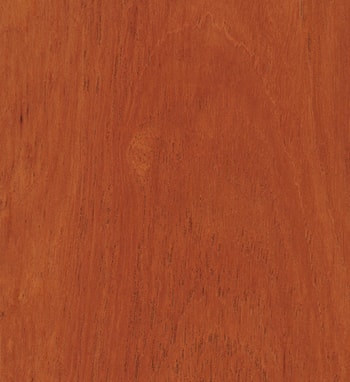

WOOD SPECIES & FINISHES
WOOD SPECIES & FINISHES

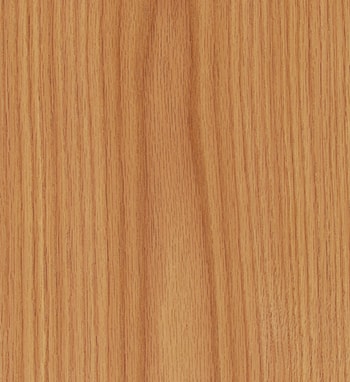

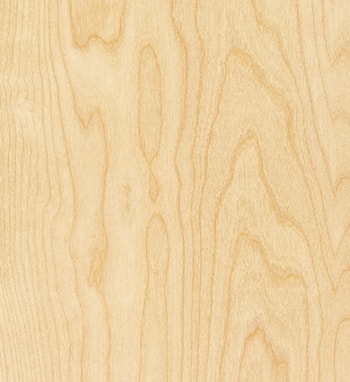

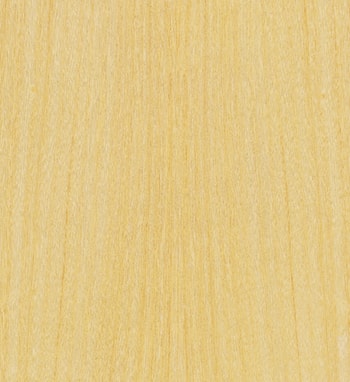

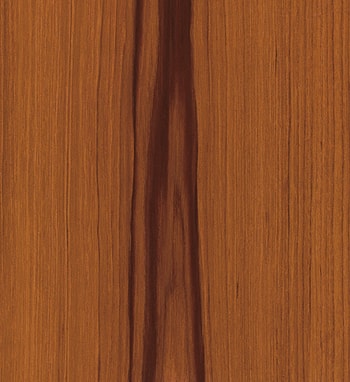

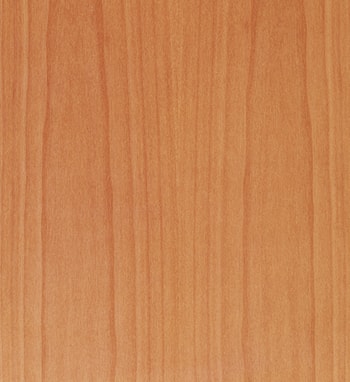

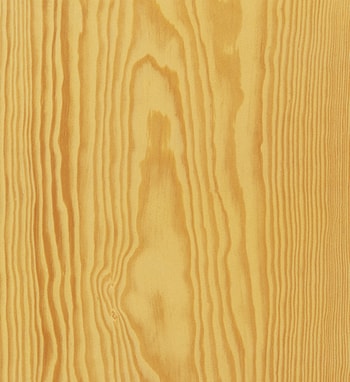

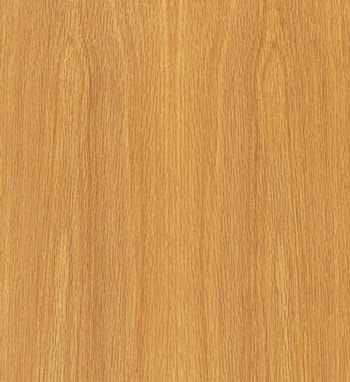

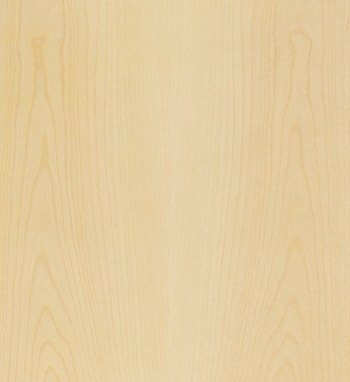

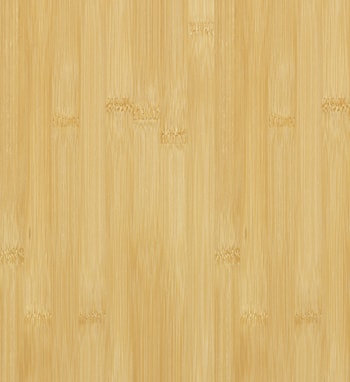

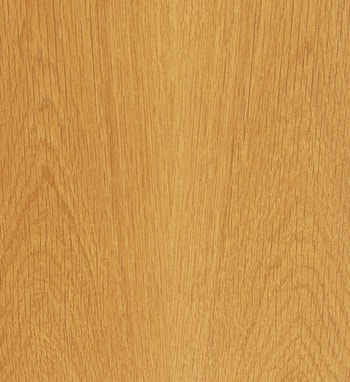

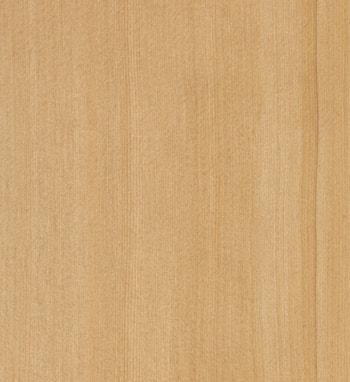

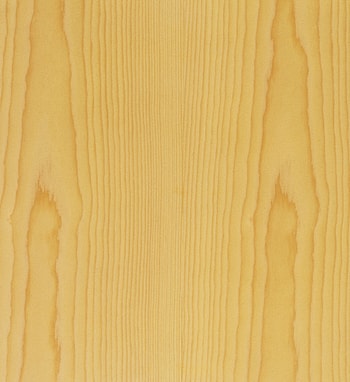

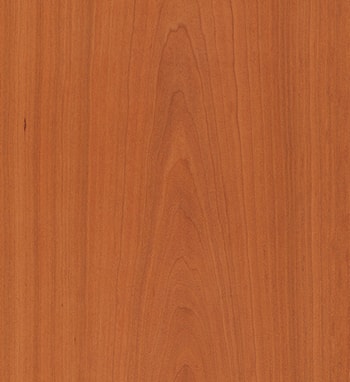

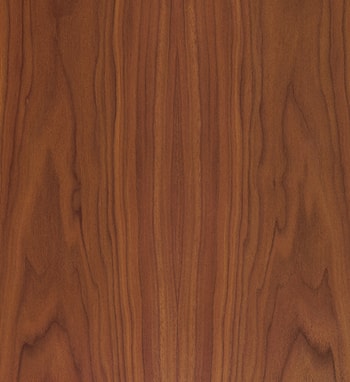

Choose from more than 40 veneers to create the ideal ambiance and feel. From light to dark tones, there is a veneer for each design. Standard, the panels are provided with a transparent lacquer, but if a special look is required, special varnishes, staining or paint finishes are also possible.
DETAIL
PERFORMANCE
Acoustical comfort in an office space, school or public building contributes to our well-being as good acoustic comfort can positively affect health, communication, safety, productivity and learning.Playing with the panel width and gap will, can provide the necessary acoustic performance for different atmospheres.
WALL FIXATION
The Veneered Wood Grills allow the designers to decide the grill dimension. The height of the grill slats is between 40 - 150mm, and the width between 17 - 32mm. The gap can be any size, but a common rule of thumb is that the gap between the slats does not exceed the slat height. The maximum length of the slat is 2780mm. Of course, other dimensions are available upon request. Optionally, the metal dowel can be replaced with a wooden backer, or a flexible dowel to created curved grills.
WALL SOLUTION
The installation of the Veneered Wood Grill wall panels is easily done, by clicking the dowel into the wall clips, which are mounted on a substructure or wall. The grills can be installed horizontally or vertically.
- Quick installation with the dowel that snaps onto the wall clips
- Installation in horizontal and vertical direction possible
- Slat size is fully customizable
