Fastmount Pc-svmx Standard Clip
PC-SVMX STANDARD CLIP
PC-SVMX STANDARD CLIP

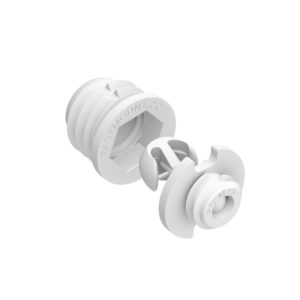

Vario Self Tapping Surface Mount Male Extra Heavy Duty 15kg
The PC-SVMX adds a high shear strength, extra heavy duty option to the Standard Range with a screw fix installation method, removing the need for special installation tools. .
With a 15kg pull out load, the clip is designed for mounting ceiling or heavyweight wall panels, and has a double detent safety feature providing two stages of clip engagement into the female clip.
Can be paired with the PC-SF1, PC-RF1 and PC-AF1 for panel installation without special tools and is also compatible with the PC-F1A.
The PC-SVMX features an inbuilt location point on the back of the clip which allows the installer to mark the male clip location on the panel without using a centrepoint (note: use CP-01ST with very hard panels e.g. HPL). See installation guide for more details.
information
CHARACTERISTICS
- Compatable With All Femail Clips In The Standard Range
- No Special Tools Required For Installation
- 15kg Pull Out Load
- 100kg Shear Load
- Invisible Panel Fixing
APPLICATIONS
- Heavyweight wall panels
- Ceiling panels
- Pre-fabricated panels
- Architectural interiors
- Marine interiors
BENEFITS
- Perfect panel alignment
- Rapid installation
- In-built centrepoint
- CNC machine compatible
- Invisible panel fixing
- No special tools required for installation
- Durable head shape, ideal for prefabrication
USE WITH
-Pc-f1a -Pc-rf1 -Pc-sf1 -Pc-af1
CATEGORY
Standard Range
COMPATIBLE WITH
-Pc-01 Stand -Pc-m1b Standard Clip -Pc-m2h Standard Clip -Pc-vm1 Standard Clip -Pc-vmx Standard Clip -Pc-sm2 Standard Clip -Pc-sm2h Standard Clip -Pc-sm1ac Standard Clip -Pc-f1a Standard Clip -Pc-sf1 Standard Clip -Pc-rf1 Standard Clip -Pc-af1 Standard Clip -Pc-dc1 Concr
