Kinetic Façade horizontal folding Shading System
Rabel 14000 is a kinetic facade folding shading system moving in the horizontal axis.
Groups of sashes in pairs can be operated electrically or manually. The sash width can be 1.2 meters and its height up to 5 meters thus making it possible to cover the building slaps.

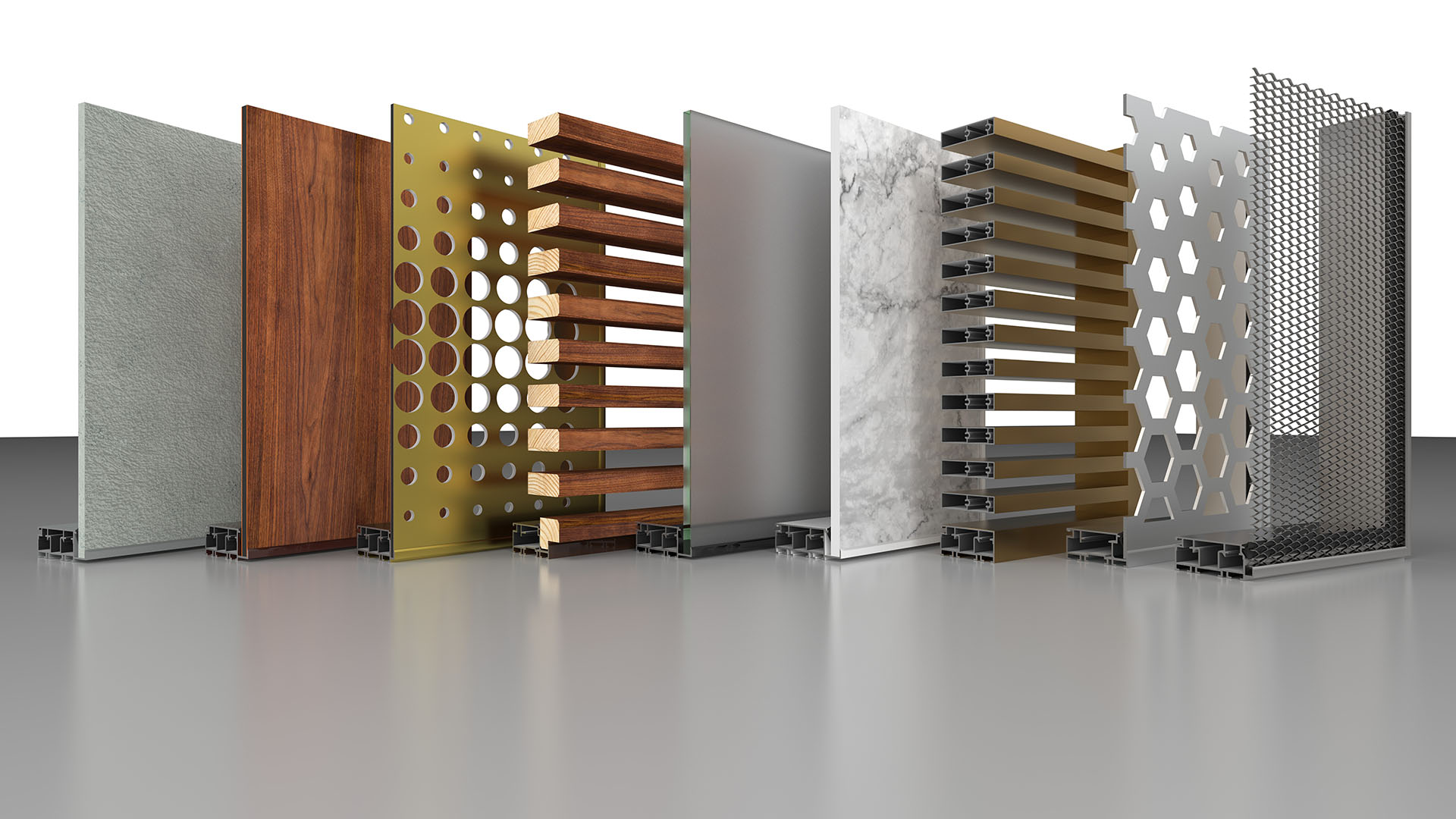

The system has been designed to allow for seamless integration with the building external cladding. Several versions are available to be used with fiber cement, HPL, Aluminium composite panels, wood, glass, ceramic and metal sheets.
Provision has been taken to allow the use of cladding material on the shading system itself. In addition to the cladding material, the system comes with a variety of blades to be installed vertically or horizontally.
In its standard configuration provision has been taken to allow for the installation of build in fly screen. A complete black out option is also available through the sealing of all the seams.
Having a track depth of only 60mm and an installation depth of 150mm makes it the ideal choice for use in tight spaces. For the system to function a top box is not required. As a result the shading can be fitted on existing openings as well as make use of the whole opening from slap to slap. The side tracks have been minimized to 30mm in height thus maximizing the internal view angle. The control can be via a wall mounted switch or a remote control in single or group mode.
INFORMATION

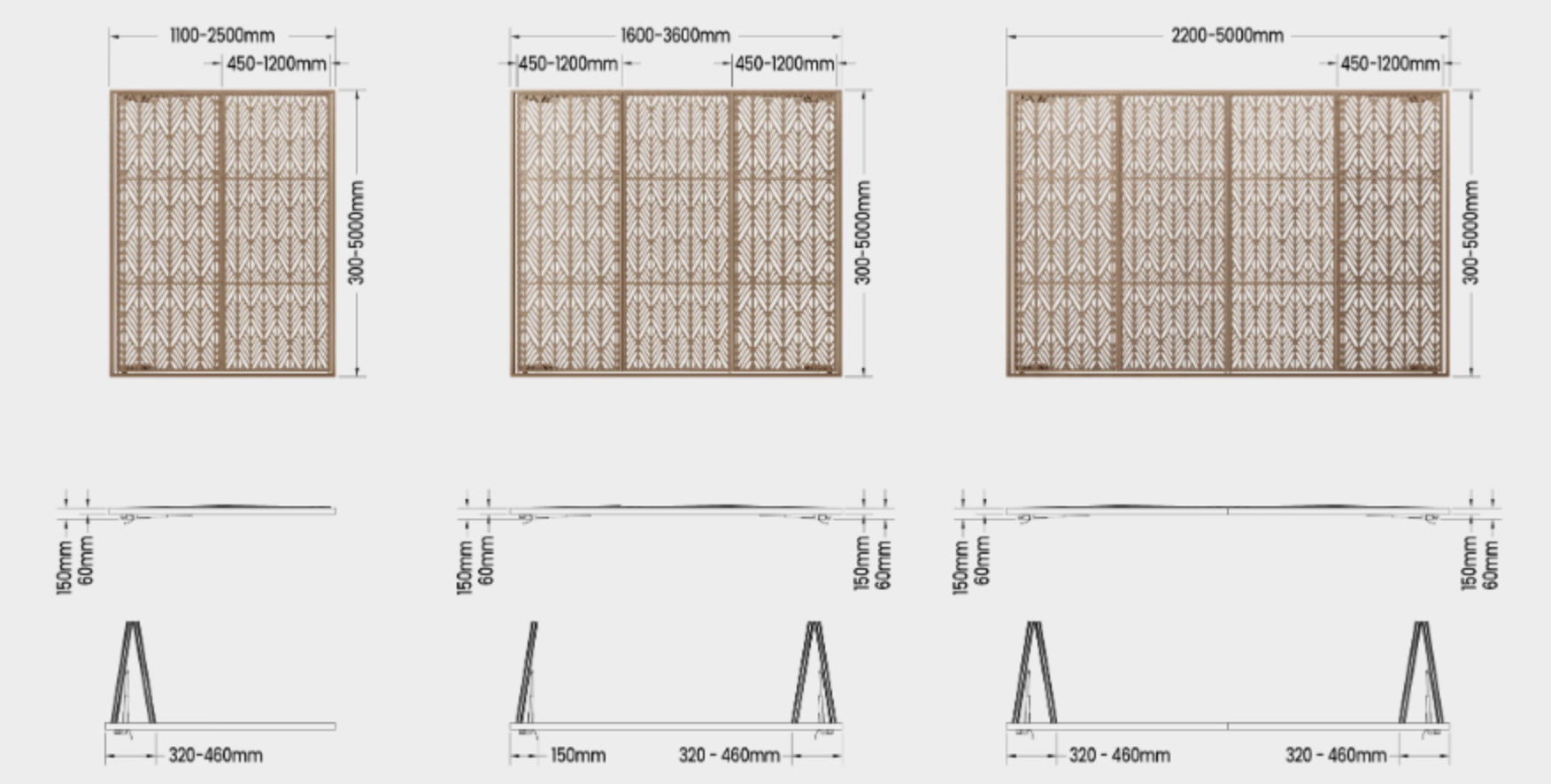

DIMENSIONS
- Max Sash Width : 1200 mm
- Max Sash Height : 5000 mm
- Max Sash Weight : 200 kg
SASH PROFILE DEPTH
60 mm
CLADDING SPACE
4 / 10 mm
SASH PROFILE VISIBLE WIDTH
11.5-28 mm
MOTOR CURRENT
2 A
FRAME PROFILE DEPTH
60 mm
FRAME PROFILE VISIBLE WIDTH
30 / 43 mm
CLADDING FINISHES
Louver, Glass, Sheet Metal, Aluminium Composite Panel, HPL, Fiber Cement, Wood, Ceramic.
ELECTRIC MOTION
Available
MOTOR VOLTAGE
24 V(DC)
PRODUCTION
Made in Cyprus
MANUAL MOVEMENT
Available
MANUAL LOCKING SYSTEM
Available
ROLLING
Top
PARKING SPACE
320-460 mm per sash pair
INSTALLATION DEPTH
150 mm
SLIDING ROLLERS
Stainless Steel
ALIGNMENT ROLLERS
Stainless Steel
BLACKOUT
Available
