Skyfold Zenith® Premium Series

ZENITH® PREMIUM SERIES

ZENITH® PREMIUM SERIES

The Zenith® Premium Series encapsulates every benefit of Skyfold walls while solidifying Skyfold’s place as the leader in movable wall innovation: superior acoustic performance, vertical motion, ease-of-use, design, and seamless integration into any space.

Skyfold Zenith® Premium Series

With a streamlined straight down deployment, the Zenith Premium is ideal for spaces with obstructions, such as heavy furniture, and tighter spaces which would otherwise limit the use of a vertically folding retractable wall. The ceiling pocket that stores the Skyfold wall is traditionally visible when looking up from the base of a Classic™ or Zenith® model in its down position.

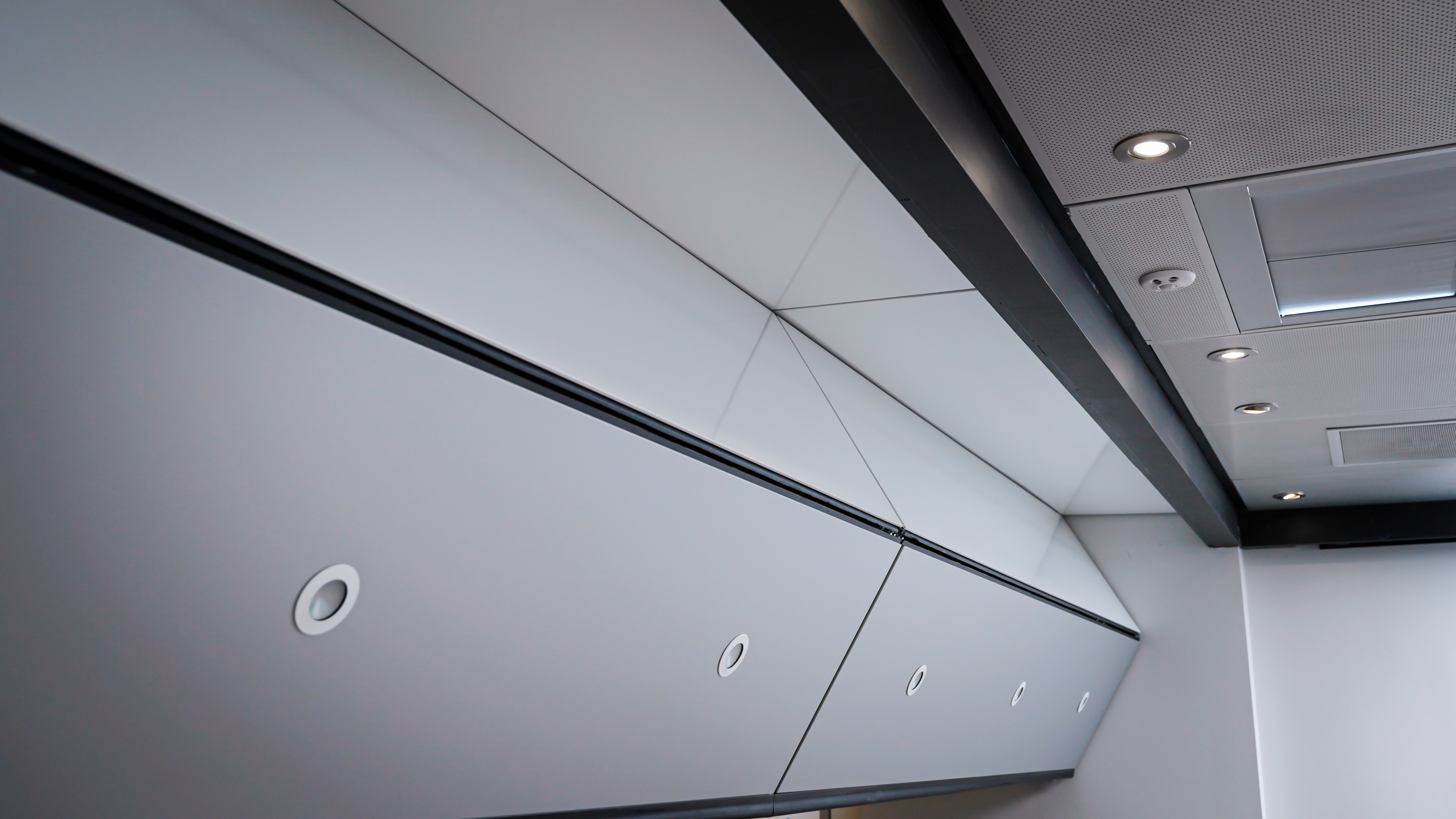

The Zenith Premium, however, features closure panels to hide the pocket from view, thereby maintaining the ceiling’s flushed and unobtrusive appearance. With this added feature, the Zenith Premium in its down position not only divides your space like a fixed wall, but also looks like a permanent fixture. We offer a wide range of finish options and layouts to meet your specific design needs.

INFORMATION

Skyfold Zenith® Premium Series

BRAND

Skyfold

PRODUCTION

Made in Canada

USE

Interior operable walls

PROPERTIES

Acoustic Insulation

FINISH OPTIONS

Fabric, Vinyl, Paint, Metals, Wood Veneer, Plastic Laminate, Graphics, Murals, White Marker Board, Custom Finish. All Finishes Can Be Mixed-and-Matched, Acoustically Transparent Fabric.

DIMENSIONS

- Width : Unlimited
- Height : Up to 14 feet (4.2m

CEILING SPACE REQUIRED FOR STORAGE (APPROX.*)

2'-0" to 2'-10" (615mm to 865mm)

CEILING POCKET WIDTH (APPROX.*)

56.25" to 70" (1430mm to 1780mm)

Skyfold Zenith® Premium Series

ADVANTAGES

- Industry-Leading STC Ratings
- Seamless Ceiling Integration
- Narrow Path of Travel
- No Floor, Wall Tracks or Visible Hinges
- Fully Automatic

- Quiet Operation
- Lightweight Panels
- Flat and Rigid
- Variety of Finish Options
- Made to Last

- Retracts into the Ceiling to Maximize Floor Space
- Easy-to-Use Operation with LCD Display Touch Screens
- Cost-Effective and Lightweight Structure
- Faster deployment compared to standard Zenith® model
- Can be used in Stepped or Sloped Spaces and Equipped with a Safety Obstruction Sensor

PRODUCT MODEL COMPARISON

Technical
Zenith Premium 51Zenith Premium 55Zenith Premium 60Zenith Premium NRC
Acoustic Performance of Installed SystemsExceptional SoundproofingSuperior SoundproofingMaximum SoundproofingExcellent Sound Absorption
Acoustic Rating of SystemSTC 51 (Rw 51)STC 55 (Rw 54)STC 60 (Rw 59)STC 50 (Rw 49) NRC up to 0.65
Acoustic Rating of Panels
STC 61 (Rw 60)STC 61 (Rw 60)STC 66 (Rw 64)STC 60 (Rw 58)
Weight6.2 lbs/sq.ft. (30.4 kg/m2)6.8 lbs/sq.ft. (33.3 kg/m2)8.6 lbs/sq.ft. (42 kg/m2)6.5 lbs/sq.ft. (32.8 kg/m2)
Floor & Wall TracksNNNN
Back-Up OperationYYYY
Auto-ReverseYYYY
Obstruction Safety SensorYYYY
Acoustical Performance Warranty: 10-Year (or 5000-Cycle)
YYYY
Parts & Labor Warranty: 2-Year (or 5000-Cycle)YYYY
LED LightingYYYY
10-Year (or 5000-Cycle) Parts WarrantyYYYY
