System 3 is a 360° rotating pivot system with various hold positions, ideal for pivoting walls.
COMPONENTS
CEILING PLATES
The ceiling plate is fitted in the ceiling, where the pin of the top pivot seamlessly fits into the hole in the ceiling plate. The ceiling plate is available in two finishes: brushed stainless steel and black.
BOTTOM PIVOT
-The bottom pivot is the pivot mechanism and driver of the pivot door and is fitted in the bottom side of the door. The pivot mechanism therefore is virtually invisible. FritsJurgens bottom pivots have a load bearing capacity for pivot doors up to 500 Kg. -The bottom pivot offers several features, depending on the choice of bottom pivot, such as: hold positions, self-closing, damper control, latch control, 30° speed control, free swing.
TOP PIVOT
The top pivot is mounted into the top of the door. It uses a so-called pinhole connection, in which the pin is fixed to the top pivot and goes into the hole in the ceiling plate when the door is placed.
FLOOR PLATES
-Every FritsJurgens floor plate is mounted 8 mm in the floor. This is sufficient for almost every floor type and makes it possible to combine FritsJurgens’ hinges with floor heating. -There are two floor plate designs available for System 3. You can choose for a round floor plate or a square floor plate in brushed stainless steel (Series 420). The floor plates by FritsJurgens are made of solid tempered steel and, therefore, entirely scratch resistant.
information
BRAND
Fritsjurgens
WEIGHT CAPACITY
40 - 350 kg
WEIGHT
0,75 KG
DIMENSIONS
160 x 32 x 143 mm
MATERIAL
- Stainless Steel
- Anodized Aluminum
USE
- Interior
- Exterior Pivot Door Hinges
DOOR ACTING
- Double-acting
- 360º Rrotation
DOOR WIDTH
1000 - 3800 mm
CORROSION RESISTANCE
EN 1670 - class 5 (norm:0-5)
DOOR HEIGHT
Unlimited
MIN. DOOR THICKNESS
40 mm
TYPES
- System 3 - A
- System 3 - C
- System 3 - E
- System 3 - G
BOTTOM GAP
13 mm
PRODUCTION
Made In United Arab Emirates
TOP GAP
4-10 mm
PIVOT POINT
Middle
HOLD POSITIONING
Hold positions 0º, 90º, 180º and 270º
DOOR MOVEMENT
Door moves from each 45º angle, in both directions, to a hold position.
INSTALLATION
-All of FritsJurgens’ pivot hinges can be milled and installed quickly and easily. On-site, installation takes only around 30 minutes. -Both in new and retrofit situations, the installation is done in four steps: mounting the floor plate, mounting the ceiling plate, installing the door, and fine-tuning the door.
FLEXIBILITY ALL AROUND
- 60° Rotation : System 3 offers rotation all around, while maintaining features like self-closure and hold positions.
- Assisted Closure And Hold Positions : From every 45° angle, System 3 rotates automatically towards its hold positions at 0°, 90°, 180° or 270°.

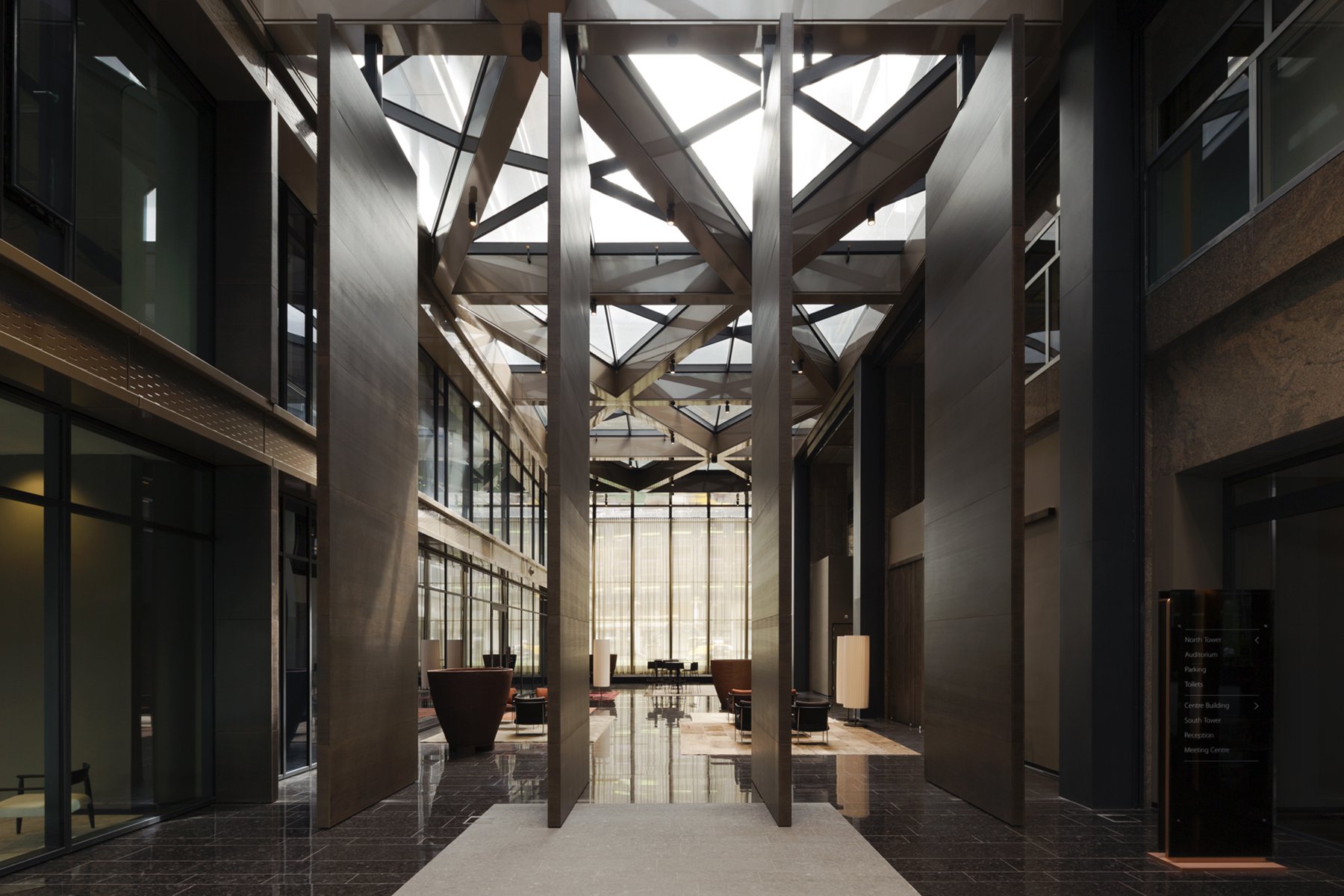

- Pivoting Walls : 360° rotation combined with hold positions and self-closure are ideal features for pivoting walls.
- The bottom pivots placement determines the the spatial impact that thepivot door will have on its surroundings. Besides a more regular side placement to create pivot doors, FritsJurgens pivot hinges are also suitable for 360 degree rotating panels or walls.
