HIGHLINE BI-FOLDING DOOR
HIGHLINE BI-FOLDING DOOR
Slender sight profiles, patented technology
The system with a building depth of 84 mm and a minimum sight line of 99 mm in the panel joint – and an extra-wide opening, of course.
WITH AWARD-WINNING DESIGN
Multi-award-winning design
But those aren’t the Highline’s only achievements – it also offers full accessibility and is certified to European security standard RC2
INGENIOUS VERSATILITY
A true all-rounder in almost every way
The Highline offers a wide range of features: floor tracks, opening options, colours and more. It is also fitted with double glazing for those who expect quality.
INCREDIBLY SLIM SIGHT LINES, PATENTED TECHNOLOGY
With a building depth of 84 mm, maximum panel width of 1.1 m and maximum height of 3.5 m, the Highline bi-folding door system boasts an unbroken, slim sight line of 99 mm at the panel joint.
This is thanks to the heart of the bi-folding door: the bionicTURTLE®, a multi-functional break profile that combines a range of technical details. Its shape helps to keep profiles extremely slim – even when using large and heavy panels. It also houses the locking mechanism and fittings, and guarantees perfect insulation.
Technology
BURGLAR RESISTANCE
RC2/RC2N
RESISTANCE
B4
AIR PERMEABILITY
3
WATER TIGHTNESS
Up to 9A
THERMAL TRANSMISSION COEFFICIENT
Uw > 0.8 W/m²K
SOUND REDUCTION INDEX
R'w up to 45 dB
INFORMATION
CHARACTERISTICS
-Water Tightness Ups To 9a -Bi-folding -Mechanical Lock System -Thermal Insulation -All-around Sealing -Customizable Folding And Colors Available
MATERIALS
Aluminium
ENVIRONMENT
- Sustainable manufacturing
- Certified disposal in accordance with DIN EN ISO 14001:2009
OPENING
- Outside
- Inside
OPERATIONS
- In-house production control
- Tested in accordance with DIN EN 1090, design class EXC1 & EXC2
- Certified in accordance with DIN ISO 9001
APPLICATIONS
- Residential
- Commercial
- Hospitality
SEALING SYSTEM
-The seal encompasses two all-round sealing levels with constant gap sizes and even seal pressure between the panels -Sealing levels not interrupted by fittings -Sheathed foam seals with optimum sliding properties -With optional convection chamber interruption seals for improved thermal transmittance -Up to three sealing levels available
USE
Folding doors
PANELS
1-12

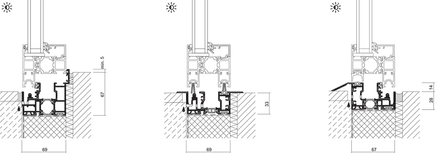

FLOOR TRACK
COLORS
THE SOLARLUX WORLD OF COLOURS
When you choose a Solarlux bi-folding door, you opt for individuality. Solarlux standard colour options, which include around 30 RAL colours, offer all the colours of the rainbow in matt and gloss finishes, at no extra cost.
This allows every bi-folding door to match its building’s interior and exterior design. We use our own in-house coating plant – one of the most modern in Europe – for top surface quality.
-Ral 1015 -Ral 3011 -Ral 5003 -Ral 5008 -Ral 5014 -Ral 6005 -Ral 6009 -Ral 7004 -Ral 7006 -Ral 7015 -Ral 7016 -Ral 7021 -Ral 7024 -Ral 7035 -Ral 7038 -Ral 7039 -Ral 7040 -Ral 8017 -Ral 8019 -Ral 8022 -Ral 8077 -Ral 9001 -Ral 9003 -Ral 9004 -Ral 9005 -Ral 9006 -Ral 9007 -Ral 9010 -Ral 9011 -Ral 9016
SYSTEM
PROFILE SYSTEM
- Modular aluminium profile system with high-performance thermal insulation and choice of two building depths: 67 mm for Ecoline or 84 mm for Highline
- Bottom-running; minimal load support required in case of falls
- Edged profiling
- Minimum sight line of 99 mm in the panel profile joint
- Single-piece, multi-functional, fibreglass-reinforced polyamide bionicTURTLE® break profile
- Loose shear bond built into thermal break to compensate for thermal loads
- Mitred panels connected by corner pieces that are glued and pressed together on the inside to create a sturdy joint
- Controlled drainage
- Built-in running tracks and guide rails
- Separate levels for runners and locks
- Floor track (accessible and suitable for living spaces) available
- Built-in, concealed cable routing
DESIGN VARIANTS
- Panels fold either inwards or outwards, to either left or right
- Left and right sliding panel pairs also available
- Floor track designs without rebates in compliance with German standard DIN 18040 on “Accessible construction”
- Floor tracks available as minimal floor tracks without height offset
- RC2/RC2N version available as an option
- Tilting or turn-and-tilt panel can be built into the frame-side
- Panel of a panel pair with concealed fittings
- Modular system allows folding, tilting, turn-and-tilt and fixed elements to be combined in a single frame with an uninterrupted floor track thanks to integral profile
- Bi-folding door available on balustrade or with top light in a frame
FITTINGS
- No protruding running tracks or guide rails
- Fittings with one-hand operation in profiles
- With optional built-in TwinX concealed panel centring mechanism for high wind loads
- System hinges also suitable for heavy panel weights
- System adjustment mechanism built into sub-frame rebate, outside the sealing level
- The specially shaped stainless-steel running track with tapered track roller allows the use of unguided carriages
- Stainless steel ball bearing runner mechanism: stainless steel track rollers and stainless steel bearing surfaces for quiet running and very long service life
- Easy-running, low-wear carriage fitted with double-row deep-groove ball bearings and built-in anti-prying guard
- Sliding lock or optional lock-in-place panel for controlled ventilation
- High-quality, stainless-steel Solarlux designer handles
- Lock-in-place, one-hand operation thanks to special gears with stroke of 24 mm
- Passdoor available with latch-key-activated, multi-point lock and profile cylinder
- Secure hinge pins
- Secure cleaning pin with convenient unlocking mechanism and misuse prevention system to allow cleaning of the outsides of the panels on inwards-opening bi-folding door elements
- Thanks to its defined locking points, this cleaning pin can be used for both paired and unpaired bi-folding doors
- Lock monitoring system with reed contacts and concealed cable routing
- Patented “Comfort Snap” panel catch
- Optional load-transferring plates with centring grooves and sealing cushions for mounting the sub-frame profiles and floor track
- Additional mounting screw covers in frame rebate
