Linvisibile Infinito 10 Hinged Door Alba
INFINITO 10 HINGED DOOR
INFINITO 10 HINGED DOOR - ALBA

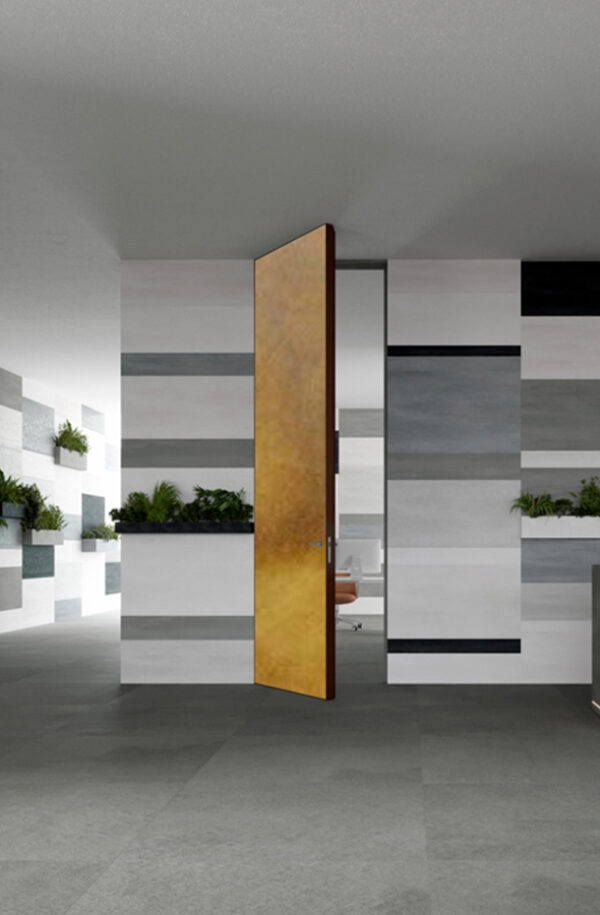

Infinito 10 Hinged Door is the new flush-to-wall door comprising an anodized or matt lacquered aluminium perimeter frame with a thickness of 102 mm, combined with a honeycomb panel.
Designed to accommodate multiple decorative finishes on the panel surface, it stands as the emblem of a door that becomes an element of the interior design, giving personality to and enhancing its surroundings.
The Infinito 10 Hinged Door has been designed for wall-flush installation on both sides and is available in any of the shades offered for the following materials: veneered wood, natural wood, glass, laminate, leather, fabric, ceramic and microcement. Particularly suitable to include the application of Heavy Coatings, like marble, natural stones and granites.
The varieties of applicable materials are endless and the panel is one hundred percent customisable with finishes that are between 3 and 6 mm thick, and up to 10 mm in the case of Heavy Coatings.
It is also possible to cover the two sides with different materials and customise the colour of the perimeter frame, creating a chromatic harmony with the selected surface.
Like all the Linvisibile flush-to-wall hinged doors, the Infinito 10 version also stands out for the installation of high-performing concealed hinges and the absence of door frames, thus ensuring seamless continuity between door and wall. The only visible element is the 2 mm aluminium profile, the distinctive sign of a door to be entirely customised.
technical features
FRAME
An extruded aluminium frame (EN AW 6060- Anticorodal 063 alloy) in the Pull or Push version designed to house hinges and lock. Ensuring the perfect anchoring of aluminium to the walls, it is able to adapt to masonry and plasterboard walls of different thickness;
PERFORMANCE
High-performance hidden hinges for doors with aluminium frame with opening angle up to 180° and total front length of 240 mm. Adjustable on three axes, in standard finish model grey SW124 and Bronze Metallic SW168 (other finishes upon request).
PANLES
A panel with a total thickness of 102 mm, including stop gaskets, made up of:
- Internal structure consisting of honeycomb panels;
- Perimeter frame in extruded oxidized chemical natural aluminium applied along the perimeter to the panel with a fixing system with square angles;
- Selected lining material with 3 to 6 mm thickness (laminate, fibreglass, methacrylate, glass, mirror, leather, ceramic, etc.), applied on each side. In the case of preparation for Heavy Coatings, the maximum coating thickness is 10 mm (marble, granite and natural stones);
The Infinito 10 Hinged Door is pre-assembled as standard for fitting thick coatings. In the Heavy Coatings version, the coatings are not included, but all hardware needed for installing and operating the door is included.
INFORMATION
USE
Opening and closing systems, partitions
CERTIFICATION
UL Certification
APPLICATIONS
- Residential - Office
-Hospitality -Retail
SIZES
-Width from 700 to 1200 mm -Height from 1900 to 3500 mm -Thickness up to 102 mm
CHARACTERISTICS
Levels with the wall on both sides, no door frames or jambs, can be coated with almost any material (metal, stone, leather, wood)
DIMENSIONS AND PERSONALIZATIONS
Infinito 10 Hinged Door is available with single or double leaf in the following sizes :
- Width: 600 to 1200 mm
– Height: 1900 to 3500 mm
- Width: 800 to 1200 mm
– Height: 1900 to 3500 mm (in the version designed for Heavy Coatings)
TECHNICAL DETAILS
- Option to make the frame without the upper crossbar;
- Option to pre-assemble the panel for mirror or glass application;
- Option to apply the flush door closer (mandatory for heights over 3000 mm);
- Option to make the perimeter profile in any of the different anodized finishes or matt lacquered;
- Option to make the two panel surfaces in different materials.
SHAPES AND OPENINGS
FINISHES
GLASS
Elegant and bright with a matt or glossy effect. The rear-lacquered glasses are not clear, but allow obtaining different reflections and colors. It is characterized by the overlapping of two slabs within which a lacquered layer that can be ordered in any available RAL colours is sandwiched. It is particularly suitable for partitioning spaces requiring more privacy.
CERAMIC
It is a product characterized by eclecticism and versatility, with multiple applications in traditional and out-of-the-box architecture, furnishing and design. Linvisibile has chosen the ceramics of leading companies in the production of ceramic slabs, whose creations can combine large sizes and lightness with great sturdiness. Sophisticated processing technologies guarantee the inalterability of the characteristics and chromatic properties of the slabs, which remain unchanged over time, even if exposed to the elements.
HEAVY COATINGS
The “Heavy Coatings” system can only be applied to 102 mm thick doors. The system consists of the preparation of panels assembled with an aluminium perimeter profile that acts as a “frame” for the application of coatings with considerable thickness and weight, such as marble, natural stone, granites, mosaic.
FABRIC
An inimitable material that enhances the beauty of the panels, yielding an extraordinary tactile experience. Manufactured with cutting-edge technological processes, the fabric guarantees unique aesthetic, technical and sensorial performances. Fabric offers at once elegant and refined yet light, sturdy and durable solutions. For this finish, we have entrusted Alcantara®, which embodies the new paradigm of contemporary lifestyle sought after by those who look for functionality and the emotion of beauty, while also respecting ethics and the environment.
LEATHER
Natural product with high durability and precious aesthetic characteristics. A prestigious choice to cover surfaces with original textures that yield tactile sensations, strength and elegance. A material synonymous with Made-in-Italy excellence in a product that guarantees maximum customisation and meticulous attention to every detail.
ANODISATION
The anodized aluminum frame is available in four standard fine-grained brushed colors, with a choice of warm and cool shades. Other coarse brushed or matt polished colors are available upon request. This treatment, by which the metal surface is coated with a protective oxide layer, protects the frame from corrosion, also giving it unique aesthetic properties.
METAL
Surface shine, of metal. Amazing finishes that can be applied on all doors, available for the designer to give form to a space that reflects his/her imagination. Metal plates to choose between copper, brass and aluminium, of a variable thickness in function of the required finishing, applied to the facades oh the honeycombe panel by glueing.
LAMINATE
A new generation of smart materials for the typical vertical and horizontal applications found in interior design. The laminates we have chosen for our products have unique features.
Thanks to the innovative processing they undergo, they are moulded with fingerprint-proof surfaces, soft to the touch, matt and extremely resistant, so as to withstand bumps and scratches, as well as any possible damage from solvents and reagents typically used in household cleaning products. For the laminated finish, we relied on the collections by three cutting-edge brands, such as Fenix®, Homapal® and Formica®, which offer maximum quality and a wide range of colours.
SPECIAL GLASS
The glass panels take on new features when undergoing satin finishing and chemical etching. The glass is available in a wide range of shades and can be further enhanced with the application of mesh and texture engravings that permit obtaining customized materials and products. A decorative solution that enhances with unique textures, reflections and colours.
MICROCEMENT
The panel with MDF base is prepared in a lowered position to accommodate the application of micro-cements (not supplied) of up to 8/10 mm thick, so as to allow precise shaving bordered by the outer frame. This makes it possible to compensate for any curving effects due to the dynamics inherent to the material. Two types of micro-cements can be applied: “thick” (with laminate linings of 9 mm) or “thin” (with MDF linings of 2.3 mm). Maximum applicable weight 40 kg.
MIRROR
Mirrors are obtained from a glass manufacturing process which yields the traditional reflective characteristic. Mirrors are valuable elements that dded to interiors give the optical illusion of larger and more radiant spaces.
