KERASHAPE CERAMIC FACADE SYSTEM
KERASHAPE CERAMIC CERAMIC FACADE SYSTEM
With its extensive bandwidth, the “KeraShape®” is primarily aligned towards setting highlights and supporting architects in realising individual concepts.
Apart from their function as elements of architectural design, these moulded parts also serve entirely practically purposes as visual and sun protection.
The standard range comprises rectangular tubes with cross-sections of 50 x 60 mm and 60 x 60 mm in lengths of up to 1,800 mm, with lengths of up to 1,500 mm for the 50 x 100 mm variants.
These are complemented by rounded lamellar elements in 140 x 60 mm with a maximum length of 1,200 mm. Using special fastening sets, the individual elements can be merged to form compact units or extended practically infinitely.
Even these standard items – which are perfectly co-ordinated to the other facade systems offered by AGROB BUCHTAL – permit numerous design variants. Furthermore, individual special shapes and sizes are possible depending on the respective building.
After a brief examination of the individual case, experts at AGROB BUCHTAL are delighted to provide a technical and economic feasibility analysis.
This also applies to individual fastening concepts deviating from standard fastening variants. As the moulded parts – glazed or unglazed – are supplied in practically any color nuance also available for facade panels, there is nothing to stand in the way of tone-in-tone design.
But contrasting colors are also a popular option as they open up numerous possibilities for making large facades appear less monotonous. The same also applies to the actual moulded parts when used to achieve a visual rhythm.
INFORMATION
USE
Ceramic facade system
MOULDED PARTS
Glazed Or Unglazed
SIZES
- Rectangular tube 50 x 60 mm / 60 x 60 mm
- Rectangular tube 50 x 100 mm
- Lamellar element 140 x 60 mm
APPLICATIONS
- Ceramic Facades
- Sun or Visual Protection
- Aesthetic Design of Corners And Projections

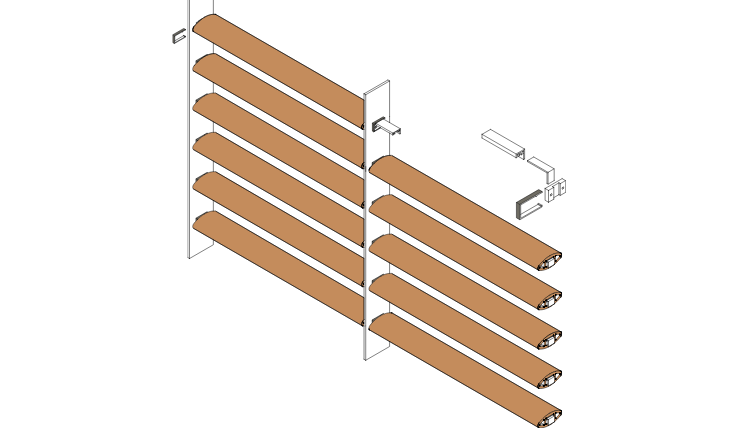

FASTENING SYSTEMS- KERASHAPE® WITH HORIZONTAL LAYING
Three-dimensional ceramic special pieces in natural colors or also in glazed version are used for making large facade surfaces less monotonous or for producing shade at buildings. For developing individual, project-related fastening proposals.
FASTENING SYSTEMS- KERASHAPE® WITH VERTICAL LAYING
Rectangular tubes in various dimensions and colors in unglazed or glazed version can also be vertically installed. For developing individual, project-related fastening proposals.
COLORS
The great variety of colors comprises the SpectraView range with its harmoniously matched color families with silky-matt glaze and glossy glazed contrasting colors as well as the unglazed Natura shades.
CHARACTERISTICS
- Diverse Profiles: Rectangular Tubes, Lamellar Elements and Corner Profiles
- 3d-look for Visual Accents
- Suitable For Horizontal and Vertical Mounting
- Wide Range of Colors, Glazed and Unglazed
- Ideal for The Execution of Corners and Projections
- Elements In Lengths of Up to 180 cm
FORMS & FORMATS

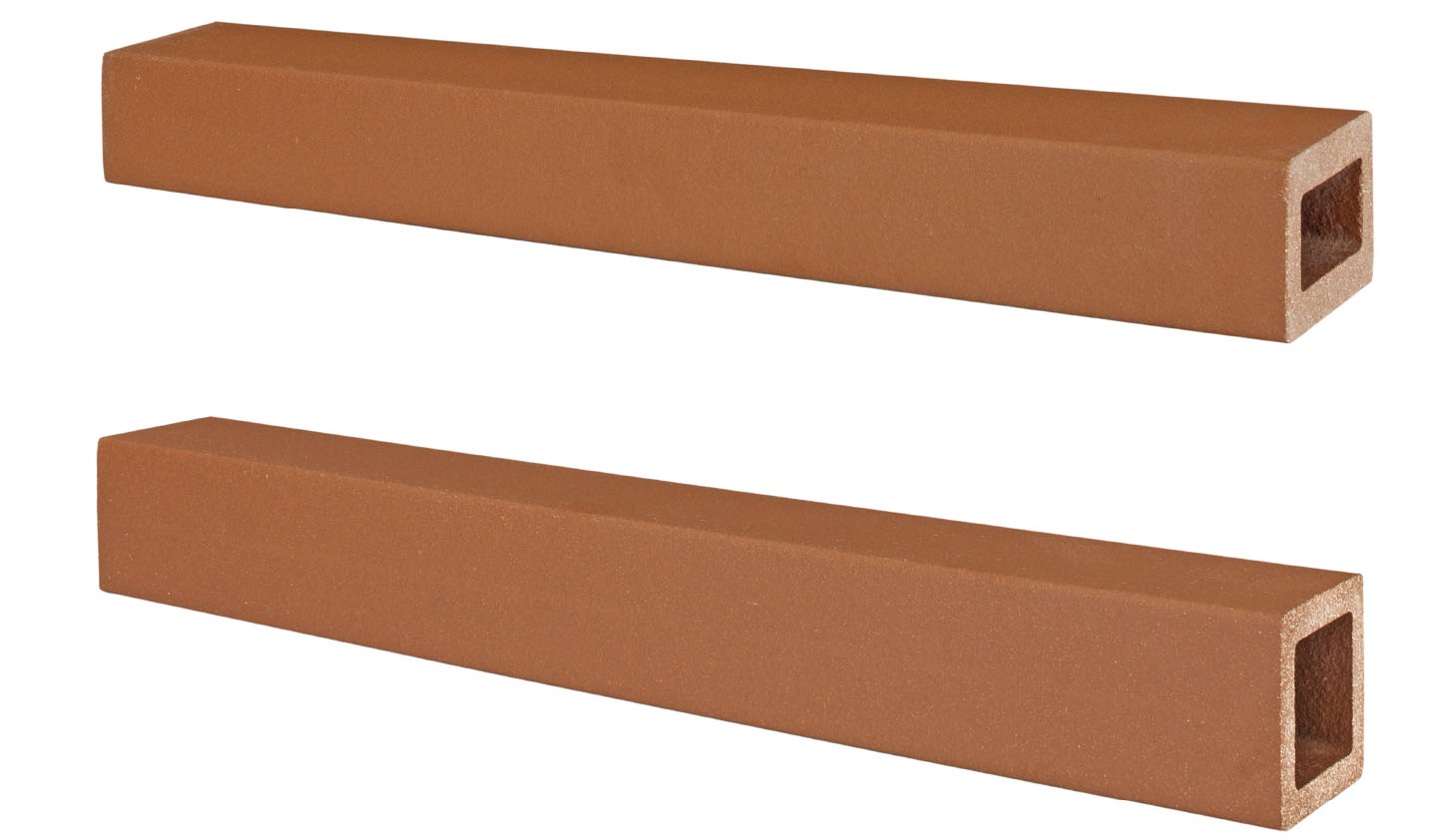

RECTANGULAR TUBE
- 50 x 60 mm / 60 x 60 mm
- Work size: 50 x 60 mm / 60 x 60 mm
- Weight: 50 x 60 mm: 4,29 kg /lin. m. / 60 x 60 mm: 4,49 kg /lin. m.
Available unglazed as well as with 4 glazed sides. Possible up to a length of 1,800 mm on request
RECTANGULAR TUBE
-50 x 100 mm*
- Work size : 50 x 100 mm
- Weight : 6,84 kg /lin. m.
Available unglazed as well as with 4 glazed sides. Possible up to a length of 1,500 mm on request
LAMELLAR ELEMENT
- Work size : 140 x 60 mm
- Weight : 9,00 kg /lin. m.
Possible up to a length of 1,200 mm, available only unglazed

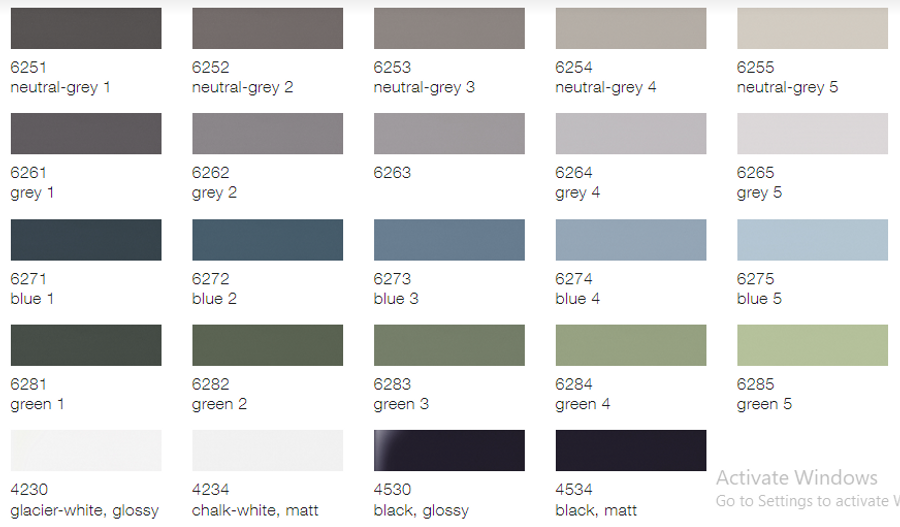

COLORS
SPECTRAVIEW CONTRASTING COLORS, GLAZED, GLOSSY
NATURA UNGLAZED
SPECTRAVIEW GLAZED, SILKY MATT
